Product Overview

BEA1000-WB50012560 industrial 802.11a/n/ac long-range wireless bridge supports AP and client modes, with optional AC centralized management. Powered by 24V passive PoE, with pole-mount bracket for outdoor installation.

IP56 protection, wide-temperature -40℃~70℃ operation, with ESD and surge protection for harsh outdoor use. TDMA+ and JTrans anti-interference, high-precision link testing and spectrum scanning deliver strong long-distance immunity, reducing cabling cost for campus, mine, plant and security wireless backhaul.

Certifications

Contact

FAQ

The cable is connected, but the port will not come UP / the link is down. What should I check?
+

1) Confirm an industrial-grade cable and proper RJ45 crimping. 2) Check speed/duplex settings; set both ends to auto-negotiation. 3) Check whether the port is administratively shut down, in the wrong VLAN, or restricted by port security.
What are the PoE power specifications?
+

Standard PoE and PoE+ are supported, with max per-port power of 15.4 W and 30 W respectively. Total system power budget must be calculated during selection to avoid insufficient supply when too many PDs are connected.
Which ring protocols are supported, and what is the self-healing time?
+

Mainstream industrial ring protocols such as ERPS (G.8032), RSTP/STP, MRP, and PRP are supported. ERPS typical self-healing is ≤50 ms; traditional RSTP is second-level. It is recommended to use one ring protocol consistently across the network.
How should I choose between Layer-2 and Layer-3 industrial switches?
+

Layer-2 switches: basic features such as VLAN, ring networks, and port mirroring; suited to access layers and same-subnet networking with strong cost performance. Layer-3 switches: add static routing, OSPF, DHCP relay, multicast, and other routing features—choose these when cross-subnet communication or core/aggregation networks are required.
Can non-OEM SFP optical modules work normally?
+

The device is compatible with generic IEEE 802.3 SFP modules. Non-OEM modules can usually be recognized, but some brands may have compatibility issues. OEM modules are recommended.
How do I restore factory settings if I forget the device login password?
+

1) Hardware reset: press and hold the RESET button for 5–10 seconds; the device reboots to factory defaults. 2) Software reset: use the vendor NMS to restore factory settings remotely. All custom configurations will be cleared after restore.
What are the power supply requirements for industrial switches?
+

DC models support 18–60 VDC or 9.6–60 VDC; AC models support 100–240 VAC, with dual redundant power inputs. Phoenix terminal wiring; reverse-polarity protection is built in so normal reverse connection will not damage the device.
What are the operating temperature range and protection rating of industrial switches?
+

All-metal aluminum alloy housing. Operating temperature is -40°C to +75°C; premium wide-temperature models reach -40°C to +85°C. Typical enclosure rating is IP40.

Features

Supports 802.11a/n/ac and 2x2 MIMO

Max. data rate 867 Mbps

Max. transmit power 28 dBm

Protection rating IP56, operating temperature -40℃~70℃

Supports Passive PoE 24V

Built-in VTrans and JTrans technologies

Specifications

Software performance-

processor	IPQ4028
WiFi standards	IEEE 802.11a/n/ac dual-band technology
Wireless security	WPA2-PSK, MAC filtering, ACL configuration
Max. transmission efficiency	867Mbps
Ethernet interface	1*10/100/1000Mbps RJ45
Memory/Flash	256MB DDR3L, 32MB Flash
network mode	bridge/routing
working mode	AP / Station
Maximum transmit frequency	28dBm
Configuration management	Support web management, support wireless controller (AC) management,
other	Built-in VTrans technology: TDMA+, channel expansion, bandwidth optional, AutoAck, QoS, spectrum scanning, JTrans technology, link test, dual firmware backup, digital signal display, Watchdog, supports antenna calibration tools, device alarms, 2.4G WIFI management

RF performance+

Modulation method	Data rate/mode	transmit power	Receive sensitivity
11b/g/n	1～54 Mbps	16～20dBm	-73～-96dBm
11b/g/n	HT20/40 (combination)	15～18dBm	-67～-91dBm
11a/n	6～54 Mbps	23～25dBm	-73～-91dBm
11a/n	HT20/40 (combination)	25～28dBm	-68～-91dBm
11ac	HT20/40/80 (combination)	24～28dBm	-60～-91dBm

Power parameters+
Power supply method Passive POE 24V
overload current protection 900mA
reverse polarity protection support
Maximum power consumption (W) 9
Average power consumption (W) 7

Physical Characteristics +

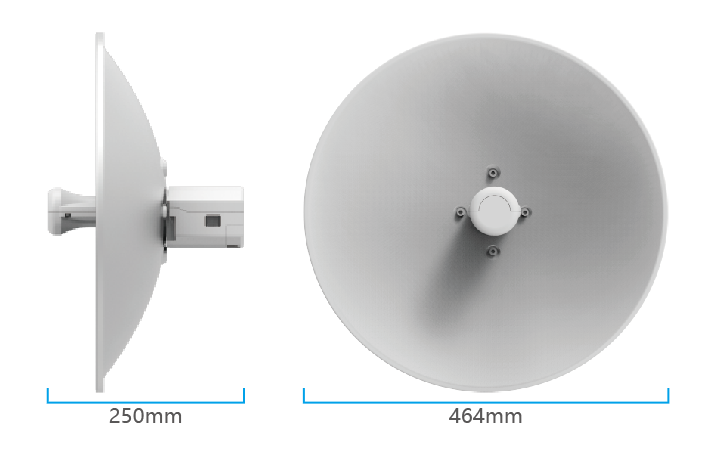

Product dimensions (mm)	Φ464mmx250mm
Weight (kg)	1.6
Mounting	Pole installation 30mm≤pole diameter≤70mm
shell	nonmetal
Protection rating	IP56
antenna	One-piece, snap-on installation
Antenna gain	23dBi

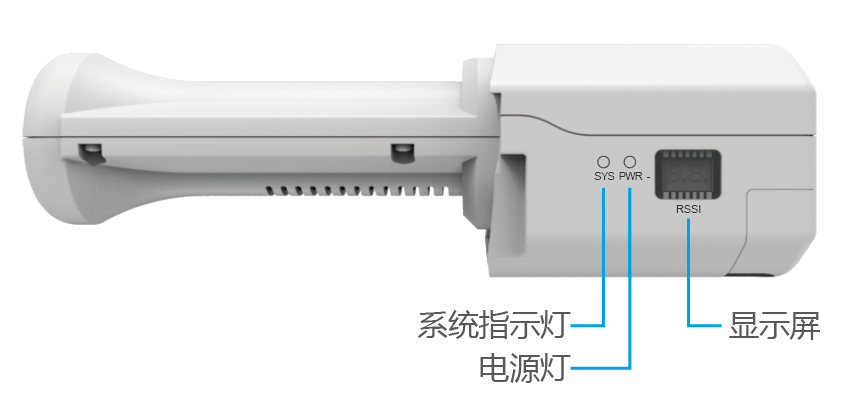

indicator light	Power indicator light, system indicator light, signal strength (two-digit code tube), Ethernet indicator light
MTBF	200000 hours

Environmental Characteristics +
Storage Temperature -40℃～85℃
Operating temperature -40℃～70℃
humidity 5%～95% RH (non-condensing)
surge 1.5kV
static electricity Contact 6KV, air 8KV
Wind resistance 200km/h
Mechanical Characteristics +
vibration Complies with IEC 60068-2-6
impact Complies with IEC 60068-2-27
circuit board /
Electromagnetic Characteristics +
EMI radiation Comply with GB/T 9254 / CISPR 32, Class A
EMC Complies with IEC 61000-4-2,3,4,5,6
Industry certification testing+
Product Safety Comply with GB 4943.1
transportation industry not applicable
EMC Conforms to EN 301 489

Dimensions

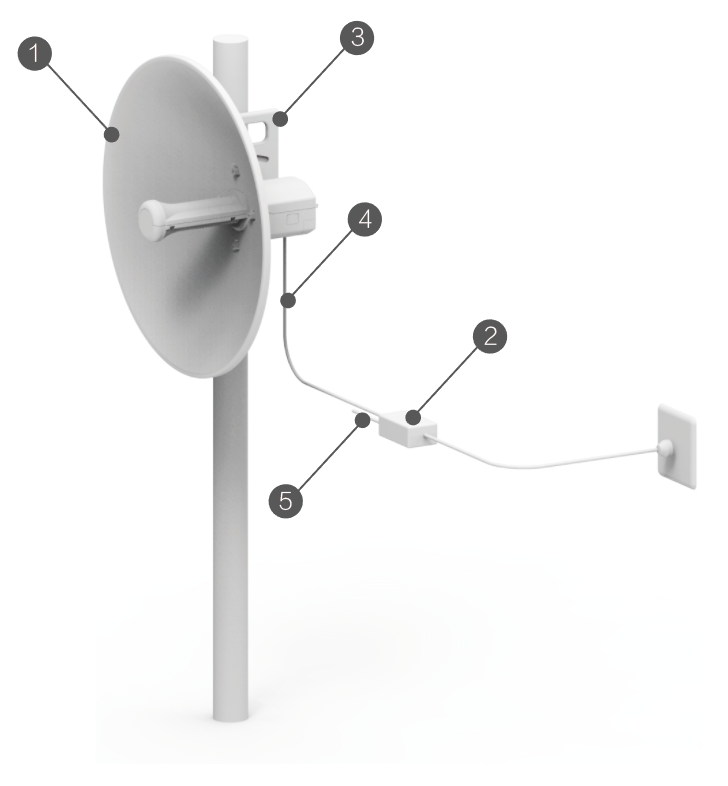

1. Wireless transmission equipment

2.POE power supply

3. Installation bracket

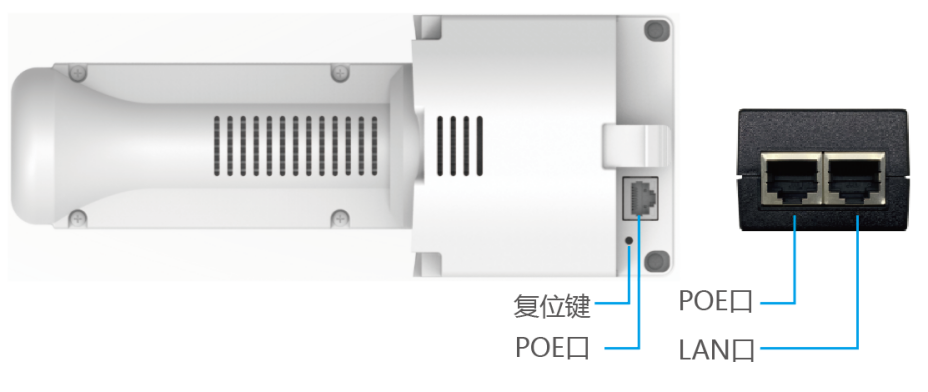

4. The device’s POE port can be connected to POE power supply

5. The LAN port on the POE end can be connected to other external devices

*Actual mounting height depends on link distance and site conditions; a clear line of sight is required.
