BEA1000 Series Dual-Band Wi-Fi 6 High-Performance Wireless Embedded Module

BEA1000 Series Dual-Band Wi-Fi 6 High-Performance Wireless Embedded Module

Max data rate 4800 Mbps (5G) & 573.5 Mbps (2.4G)

4x4 MIMO

Supports 2.5 Gbps/1 Gbps wired ports

IP66 rating, operating temperature -20℃~75℃

Get a Quote Claim Coupon Download
Download

Product Overview

M4382 industrial wireless module is based on 802.11ax (Wi-Fi 6) with IPQ5018 processor, designed for embedded devices, industrial routers, explosion-proof APs and onboard units. High-speed connectors ease integration into host boards.

The module supports 2.4 GHz 2×2 and 5 GHz 4×4 MIMO (configurable as 2×2), exchanging data with the host CPU via PCIe, USB, SGMII and other interfaces. All IOs support 1.8V/3.3V levels with built-in temperature compensation for stable operation from -20℃ to 55℃.

Certifications

Contact

FAQ

  • The cable is connected, but the port will not come UP / the link is down. What should I check?

    +

    1) Confirm an industrial-grade cable and proper RJ45 crimping. 2) Check speed/duplex settings; set both ends to auto-negotiation. 3) Check whether the port is administratively shut down, in the wrong VLAN, or restricted by port security.

  • What are the PoE power specifications?

    +

    Standard PoE and PoE+ are supported, with max per-port power of 15.4 W and 30 W respectively. Total system power budget must be calculated during selection to avoid insufficient supply when too many PDs are connected.

  • Which ring protocols are supported, and what is the self-healing time?

    +

    Mainstream industrial ring protocols such as ERPS (G.8032), RSTP/STP, MRP, and PRP are supported. ERPS typical self-healing is ≤50 ms; traditional RSTP is second-level. It is recommended to use one ring protocol consistently across the network.

  • How should I choose between Layer-2 and Layer-3 industrial switches?

    +

    Layer-2 switches: basic features such as VLAN, ring networks, and port mirroring; suited to access layers and same-subnet networking with strong cost performance. Layer-3 switches: add static routing, OSPF, DHCP relay, multicast, and other routing features—choose these when cross-subnet communication or core/aggregation networks are required.

  • Can non-OEM SFP optical modules work normally?

    +

    The device is compatible with generic IEEE 802.3 SFP modules. Non-OEM modules can usually be recognized, but some brands may have compatibility issues. OEM modules are recommended.

  • How do I restore factory settings if I forget the device login password?

    +

    1) Hardware reset: press and hold the RESET button for 5–10 seconds; the device reboots to factory defaults. 2) Software reset: use the vendor NMS to restore factory settings remotely. All custom configurations will be cleared after restore.

  • What are the power supply requirements for industrial switches?

    +

    DC models support 18–60 VDC or 9.6–60 VDC; AC models support 100–240 VAC, with dual redundant power inputs. Phoenix terminal wiring; reverse-polarity protection is built in so normal reverse connection will not damage the device.

  • What are the operating temperature range and protection rating of industrial switches?

    +

    All-metal aluminum alloy housing. Operating temperature is -40°C to +75°C; premium wide-temperature models reach -40°C to +85°C. Typical enclosure rating is IP40.

Features

802.11a/b/g/n/ac/ax

Max. data rate 4800 Mbps (5G) & 573.5 Mbps (2.4G)

4x4 MIMO technology

Supports 2.5 Gbps / 1 Gbps limited ports

Protection rating IP66, operating temperature -20℃~75℃

Specifications

  • Software performance-

    processorIPQ5018
    WiFi standardsIEEE 802.11a/b/g/n/ac/ax dual-band technology
    Wireless securityWPA3, hidden SSID, IP/MAC filtering
    MIMO2.4GHz：2x2 573.5Mbps
    5GHz: 4x4 4800Mbps (configurable 2x2)
    Ethernet interface1*2.5Gbps
    1*10/100/1000Mbps
    Memory/Flash512MB DDR3L ，160MB Flash
    network modebridge/routing
    operating modeAP/Station
    Max. transmit power2.4G：24dBm、5G：24dBm
    Configuration managementSupports web configuration, AC remote management, and SNMP management
    otherLoad balancing, roaming enhancement, multi-VAP support, automatic frequency selection, client isolation, client speed limit,
    Maximum number of users configuration, VLAN support, firmware backup, MESH technology, JTrans protocol, support OFDMA technology

  • RF performance+

    Modulation methodData rate/modetransmit powerReceive sensitivity
    5GVHT20/40/80/16018~24dBm-58~-92dBm
    5GHE20/40/80/16016~24dBm-53~-92dBm
    2.4GVHT20/4019~24dBm-65~-93dBm
    2.4GHE20/4017~24dBm-60~-93dBm

  • Power parameters+

    Power supply method5V
    Maximum power consumption (W)18
    Average power consumption (W)13

  • Physical Characteristics +

    Product dimensions (mm)112.5x75
    MTBF100000 hours

  • Environmental Characteristics +

    Storage Temperature-40°~70°
    Operating temperature-20°~55°
    Operating Humidity10%～90% RH (non-condensing)
    Storage humidity5%~90%RH non-condensing

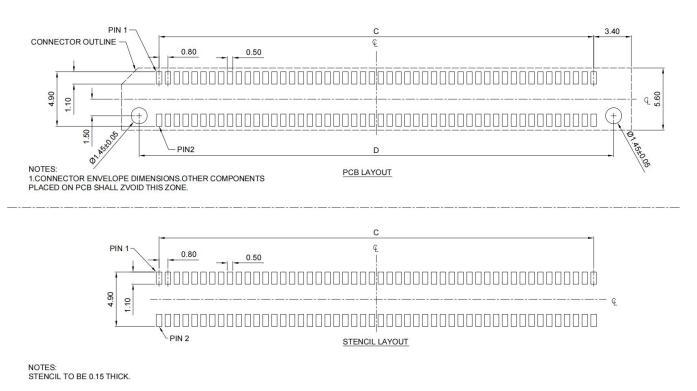

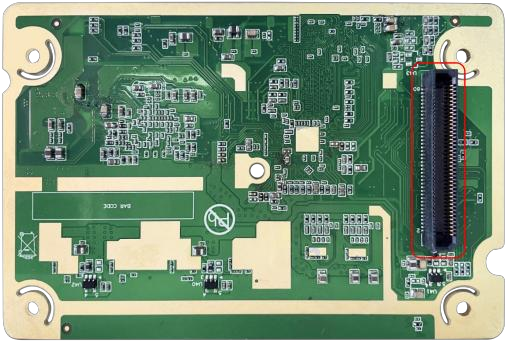

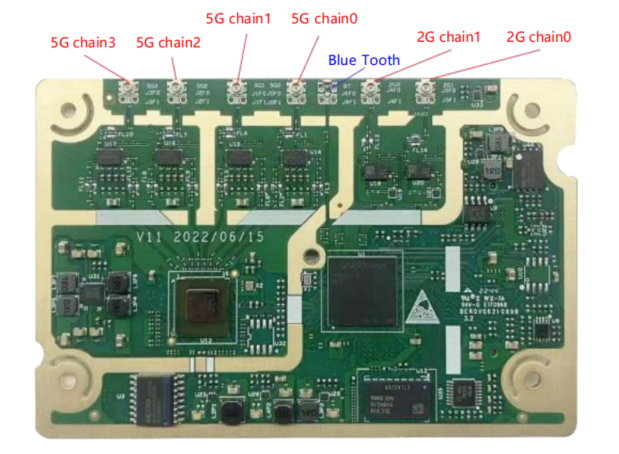

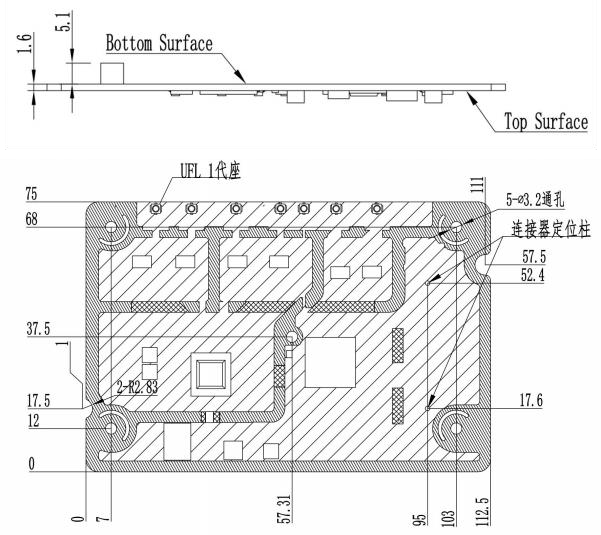

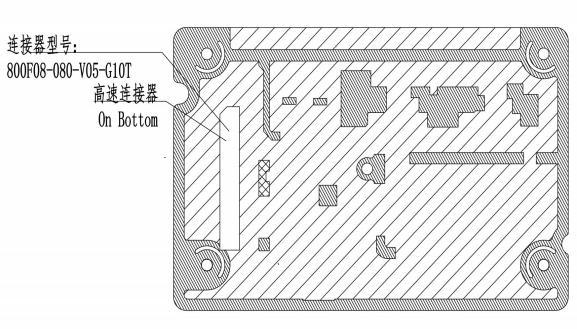

Dimensions



Dimensions



Dimensions



Dimensions

Dimensions



Dimensions
