BEA1000 Series Flagship Dual-Band Wi-Fi 6 High-Performance IIC Explosion-Proof AP (IP66)

BEA1000 Series Flagship Dual-Band Wi-Fi 6 High-Performance IIC Explosion-Proof AP (IP66)

Max data rate 2400 Mbps (5G) & 573 Mbps (2.4G)

2x2 MIMO

Supports 802.3at (PoE+)

IP66 rating, operating temperature -40℃~70℃, explosion-proof class IIC

Get a Quote Claim Coupon Download
Download

Product Overview

BEA1000-W6APD2GP1C2IC series IIC explosion-proof industrial wireless AP integrates AP, bridge and routing modes with optional AC unified management. PoE powered, with dedicated explosion-proof mounting accessories for easy wall mounting.

Explosion-proof plus industrial protection design for corrosive gas, humidity and dust. Reduces extensive cabling/trenching cost; widely used for wireless networking and data transmission in chemical, oil & gas and pharmaceutical explosion-proof sites.

Certifications

Contact

FAQ

  • The cable is connected, but the port will not come UP / the link is down. What should I check?

    +

    1) Confirm an industrial-grade cable and proper RJ45 crimping. 2) Check speed/duplex settings; set both ends to auto-negotiation. 3) Check whether the port is administratively shut down, in the wrong VLAN, or restricted by port security.

  • What are the PoE power specifications?

    +

    Standard PoE and PoE+ are supported, with max per-port power of 15.4 W and 30 W respectively. Total system power budget must be calculated during selection to avoid insufficient supply when too many PDs are connected.

  • Which ring protocols are supported, and what is the self-healing time?

    +

    Mainstream industrial ring protocols such as ERPS (G.8032), RSTP/STP, MRP, and PRP are supported. ERPS typical self-healing is ≤50 ms; traditional RSTP is second-level. It is recommended to use one ring protocol consistently across the network.

  • How should I choose between Layer-2 and Layer-3 industrial switches?

    +

    Layer-2 switches: basic features such as VLAN, ring networks, and port mirroring; suited to access layers and same-subnet networking with strong cost performance. Layer-3 switches: add static routing, OSPF, DHCP relay, multicast, and other routing features—choose these when cross-subnet communication or core/aggregation networks are required.

  • Can non-OEM SFP optical modules work normally?

    +

    The device is compatible with generic IEEE 802.3 SFP modules. Non-OEM modules can usually be recognized, but some brands may have compatibility issues. OEM modules are recommended.

  • How do I restore factory settings if I forget the device login password?

    +

    1) Hardware reset: press and hold the RESET button for 5–10 seconds; the device reboots to factory defaults. 2) Software reset: use the vendor NMS to restore factory settings remotely. All custom configurations will be cleared after restore.

  • What are the power supply requirements for industrial switches?

    +

    DC models support 18–60 VDC or 9.6–60 VDC; AC models support 100–240 VAC, with dual redundant power inputs. Phoenix terminal wiring; reverse-polarity protection is built in so normal reverse connection will not damage the device.

  • What are the operating temperature range and protection rating of industrial switches?

    +

    All-metal aluminum alloy housing. Operating temperature is -40°C to +75°C; premium wide-temperature models reach -40°C to +85°C. Typical enclosure rating is IP40.

Features

802.11ac/ax

Max. data rate 2400 Mbps (5G) & 573 Mbps (2.4G)

2x2 MIMO technology

Support 802.3at protocol (POE+)

Protection rating IP66, operating temperature -40℃~70℃, explosion-proof class IIC

Specifications

  • Software performance-

    processorIPQ5018
    WiFi standardsIEEE 802.11ac/ax dual-band technology
    Wireless securityWPA3, hidden SSID, IP/MAC filtering
    MIMO2.4GHz 2x2 573.5Mbps
    5.8GHz 2x2 2400Mbps
    Ethernet interface1*2.5Gbps RJ45
    1*10/100/1000Mbps RJ45
    Memory/Flash512MB DDR3L，32MB Nor Flash，128MB Nand Flash
    network modeAP/Bridge/Route
    operating modeAP/Station
    Max. transmit power2.4G：24dBm、5G：24dBm
    Configuration managementSupports web configuration, AC remote management, and SNMP management
    otherMESH networking, load balancing, roaming enhancement, multi-VAP support, automatic frequency selection, client isolation,
    Client speed limit, maximum optimized user configuration, VLAN support, firmware backup, 802.11r wireless roaming, QoS, intelligent temperature control, dynamic channel selection

  • RF performance+

    Modulation methodData rate/modetransmit powerReceive sensitivity
    11acVHT20/40/80/160(combination)18~24dBm-58~-92dBm
    11axVHT20/40/80/160(combination)16~24dBm-53~-92dBm

  • Power parameters+

    Power supply method48V POE+
    overload current protection600mA
    reverse polarity protectionsupport
    Maximum power consumption (W)18
    Average power consumption (W)/

  • Physical Characteristics +

    Product dimensions (W× H × D) (mm)250x250x200mm
    Weight (kg)13
    Mountingwall hanging
    shellMetal
    Protection ratingIP66
    explosion-proof class Exd IIC T6 Gb
    antennaStandard configuration: 2 omnidirectional dual-band fiberglass antennas (2.4G 6dBi/5G 5dBi, φ22.8x275.0mm)
    Optional external antenna
    Antenna weight (kg)/(optional)
    interface2×N type interface
    MTBF200000 hours

  • Environmental Characteristics +

    Storage Temperature-40℃～85℃
    Operating temperature-40℃～70℃
    humidity5%～95% RH (non-condensing)
    surgeCommon mode 4KV, differential mode 2KV
    static electricityContact 6KV, air 8KV

  • Mechanical Characteristics +

    vibrationComplies with IEC 60068-2-6
    impactComplies with IEC 60068-2-27
    circuit board/

  • Electromagnetic Characteristics +

    EMI radiationComply with GB/T 9254 / CISPR 32, Class A
    EMCComplies with IEC 61000-4-2,3,4,5,6

  • Industry certification testing+

    Product SafetyComply with GB 4943.1
    transportation industrynot applicable
    EMCConforms to EN 301 489
    unitmm

Dimensions



Dimensions



Dimensions

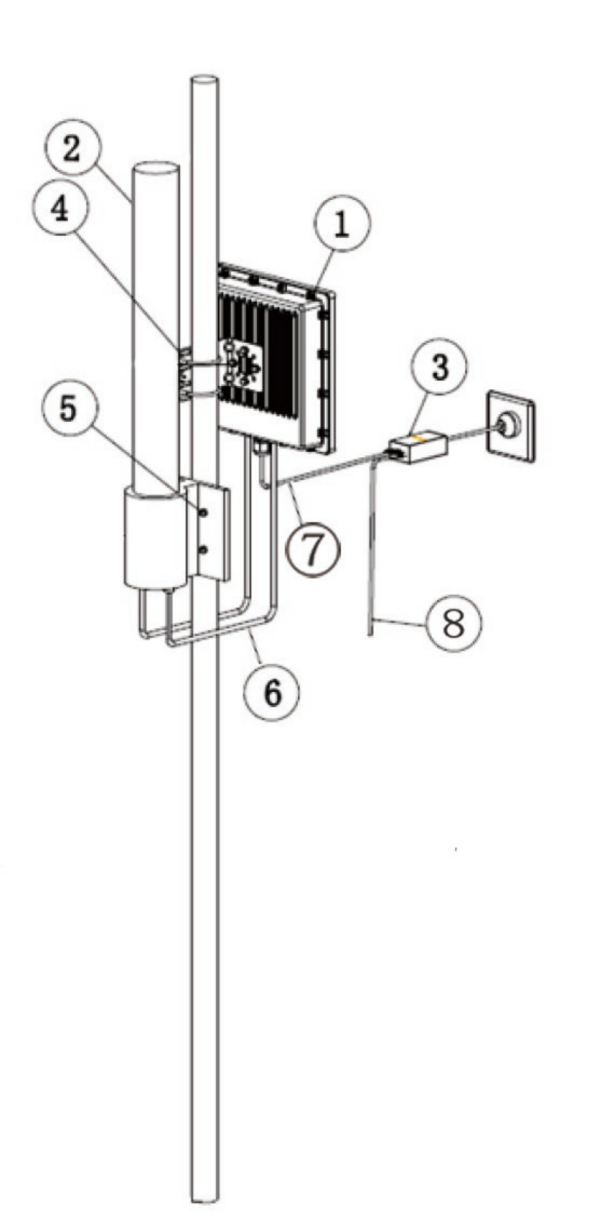

AP

Host antenna

PoE power supply module (PoE adapter)

Host mounting bracket

Antenna mounting bracket

RF feeder

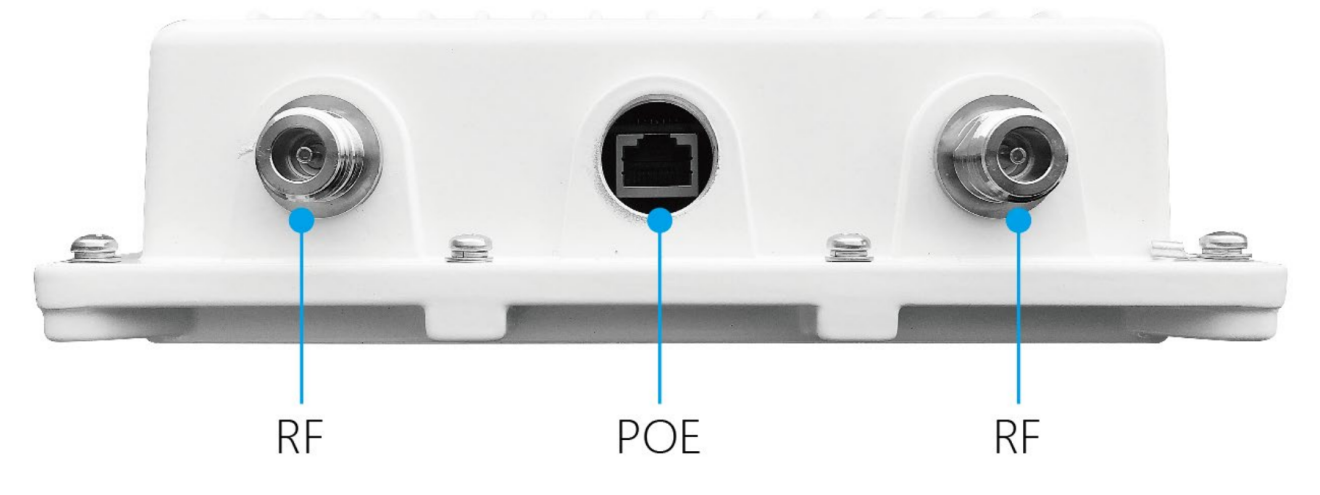

Please connect the PoE port of the power supply module to the PoE interface of the AP host.

The network port (LAN) of the PoE power supply module can be connected to other network devices.

Accessories
