BEA1000 Series Industrial Dual-Band Wi-Fi 6 High-Gain Industrial AP (IP66)

BEA1000 Series Industrial Dual-Band Wi-Fi 6 High-Gain Industrial AP (IP66)

Max data rate 2400 Mbps (5G) & 574 Mbps (2.4G)

Supports 2x2 MIMO

Supports 802.3at (48V PoE+)

IP66 rating, operating temperature -30℃~65℃

Get a Quote Claim Coupon Download
Download

Product Overview

BEA1000-W6APD2GP1C1P66 series industrial wireless AP supports AP and bridge modes with optional AC centralized management. 48V PoE+ powered, bracket pole-mount for easy deployment.

IP66 industrial protection for stable outdoor operation in rain and temperature swings. Dual Ethernet ports balance high-speed forwarding and expansion without extensive trenching, reducing installation cost for plant coverage, long-distance interconnection and security data backhaul.

Certifications

Contact

FAQ

  • The cable is connected, but the port will not come UP / the link is down. What should I check?

    +

    1) Confirm an industrial-grade cable and proper RJ45 crimping. 2) Check speed/duplex settings; set both ends to auto-negotiation. 3) Check whether the port is administratively shut down, in the wrong VLAN, or restricted by port security.

  • What are the PoE power specifications?

    +

    Standard PoE and PoE+ are supported, with max per-port power of 15.4 W and 30 W respectively. Total system power budget must be calculated during selection to avoid insufficient supply when too many PDs are connected.

  • Which ring protocols are supported, and what is the self-healing time?

    +

    Mainstream industrial ring protocols such as ERPS (G.8032), RSTP/STP, MRP, and PRP are supported. ERPS typical self-healing is ≤50 ms; traditional RSTP is second-level. It is recommended to use one ring protocol consistently across the network.

  • How should I choose between Layer-2 and Layer-3 industrial switches?

    +

    Layer-2 switches: basic features such as VLAN, ring networks, and port mirroring; suited to access layers and same-subnet networking with strong cost performance. Layer-3 switches: add static routing, OSPF, DHCP relay, multicast, and other routing features—choose these when cross-subnet communication or core/aggregation networks are required.

  • Can non-OEM SFP optical modules work normally?

    +

    The device is compatible with generic IEEE 802.3 SFP modules. Non-OEM modules can usually be recognized, but some brands may have compatibility issues. OEM modules are recommended.

  • How do I restore factory settings if I forget the device login password?

    +

    1) Hardware reset: press and hold the RESET button for 5–10 seconds; the device reboots to factory defaults. 2) Software reset: use the vendor NMS to restore factory settings remotely. All custom configurations will be cleared after restore.

  • What are the power supply requirements for industrial switches?

    +

    DC models support 18–60 VDC or 9.6–60 VDC; AC models support 100–240 VAC, with dual redundant power inputs. Phoenix terminal wiring; reverse-polarity protection is built in so normal reverse connection will not damage the device.

  • What are the operating temperature range and protection rating of industrial switches?

    +

    All-metal aluminum alloy housing. Operating temperature is -40°C to +75°C; premium wide-temperature models reach -40°C to +85°C. Typical enclosure rating is IP40.

Features

802.11a/b/g/n/ac/ax

Max. data rate 2400 Mbps (5G) & 574 Mbps (2.4G)

Support 2x2 MIMO technology

Support 802.3at protocol (48V POE+)

Protection rating IP66, operating temperature -30℃~65℃

Specifications

  • Software performance-

    processorIPQ5018
    WiFi standardsIEEE 802.11a/b/g/n/ac/ax dual-band technology
    Wireless securityWPA3, hidden SSID, IP/MAC filtering
    MIMO2.4GHz 2x2 574Mbps
    5.8GHz 2x2 2400Mbps
    Ethernet interface1*2.5Gbps RJ45
    1*10/100/1000Mbps RJ45
    Memory/Flash512MB DDR3L，32MB Nor Flash，128MB Nand Flash
    network modeAP/Bridge/Route
    operating modeAP/Station
    Max. transmit power2.4G：27dBm、5G：27dBm
    Configuration managementSupports web configuration, AC remote management, and SNMP management
    otherMESH networking, 802.11kvr roaming function, link test, load balancing, roaming enhancement, multi-VAP support, automatic frequency selection, client isolation, client speed limit, maximum user number configuration, VLAN support, firmware backup

  • RF performance+

    Modulation methodData rate/modetransmit powerReceive sensitivity
    11acVHT20/VHT40/VHT6018～24dBm-58～-92dBm
    11axVHT20/40/80/16016～24dBm-53～-92dBm

  • Power parameters+

    Power supply method48V POE+
    overload current protection600A
    reverse polarity protectionsupport
    Maximum power consumption (W)24
    Average power consumption (W)20

  • Physical Characteristics +

    Product dimensions (W × H × D) (mm)200x200x50mm
    Weight (kg)1.7 (including bracket)
    MountingPole installation (≤50mm)
    shellnonmetal
    Protection ratingIP66
    Antenna wave speed width5.8G: horizontal 90°, vertical 8°;
    2.4G: horizontal 90°, vertical 7.5°
    Antenna dimensions2.4G：850×128×56mm；
    5.8G：430x135x35mm
    Antenna gain2.4GHz：16dBi/5GHz：17dBi
    interface4×N type interface
    MTBF200000 hours

  • Environmental Characteristics +

    Storage Temperature-40℃～85℃
    Operating temperature-30℃～65℃
    humidity5%～90% RH (non-condensing)
    surgeCommon mode 4KV, differential mode 2KV
    static electricityContact 6KV, air 8KV
    ESDContact discharge: 6KV/air discharge: 8KV
    Wind resistant150km/h

  • Mechanical Characteristics +

    vibrationComplies with IEC 60068-2-6
    impactComplies with IEC 60068-2-27
    circuit board/

  • Electromagnetic Characteristics +

    EMI radiationComply with GB/T 9254 / CISPR 32, Class A
    EMCComplies with IEC 61000-4-2,3,4,5,6

  • Industry certification testing+

    Product SafetyComply with GB 4943.1
    transportation industrynot applicable
    EMCConforms to EN 301 489
    unitmm

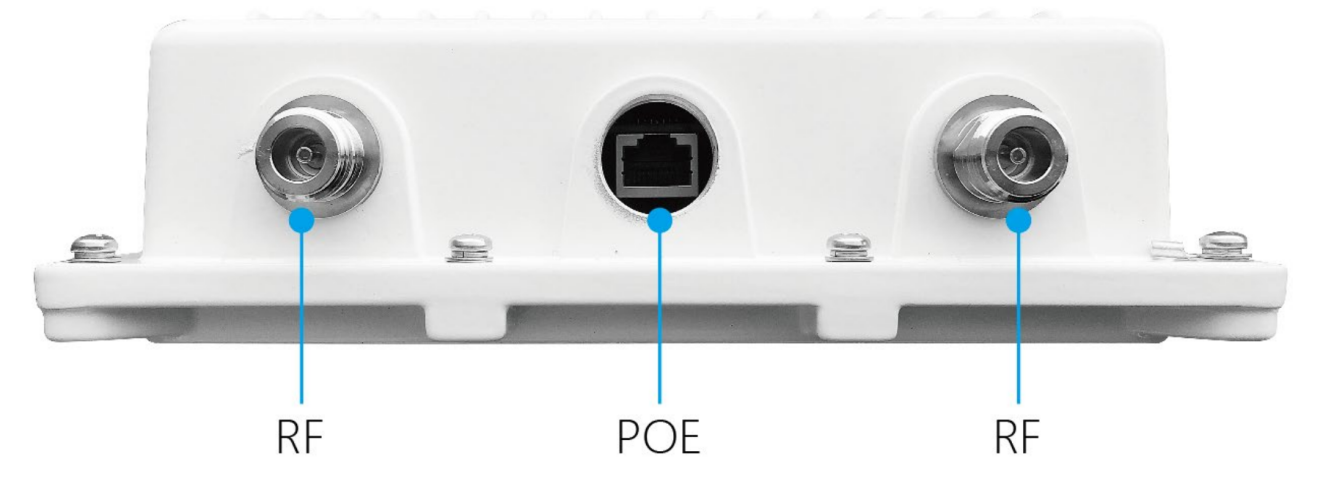

Dimensions



Dimensions



Dimensions

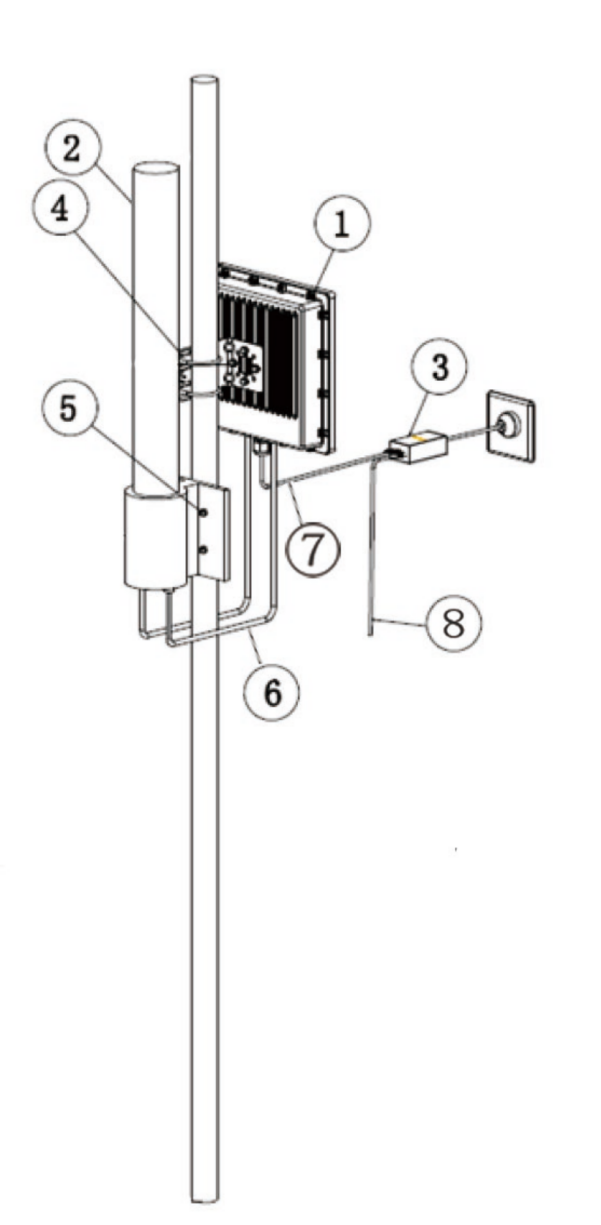

AP

Host antenna

PoE power supply module (PoE adapter)

Host mounting bracket

Antenna mounting bracket

RF feeder

Please connect the PoE port of the power supply module to the PoE interface of the AP host.

The network port (LAN) of the PoE power supply module can be connected to other network devices.

Accessories
