Max data rate 867 Mbps (5G) & 300 Mbps (2.4G)
2x2 MIMO
Supports 802.3at (PoE+)
IP66 rating, operating temperature -40℃~70℃, explosion-proof class IIC
BEA1000-WA50021662 series outdoor industrial wireless AP provides AP, bridge and routing modes with AC centralized management. 48V PoE+ powered, with mounting bracket for convenient pole installation.
IP66 dust/water resistance with wide-temperature hardware for outdoor rain and extreme temperatures. Dual Ethernet ports for high-speed links and peripheral expansion, reducing on-site trenching for plant coverage, long-range bridging and outdoor security backhaul.
The cable is connected, but the port will not come UP / the link is down. What should I check?
+What are the PoE power specifications?
+Which ring protocols are supported, and what is the self-healing time?
+How should I choose between Layer-2 and Layer-3 industrial switches?
+Can non-OEM SFP optical modules work normally?
+How do I restore factory settings if I forget the device login password?
+What are the power supply requirements for industrial switches?
+What are the operating temperature range and protection rating of industrial switches?
+802.11a/b/g/n/ac
Max. data rate 867 Mbps (5G) & 300 Mbps (2.4G)
2x2 MIMO technology
Support 802.3at protocol (POE+)
Protection rating IP66, operating temperature -40℃~70℃, explosion-proof class IIC
| processor | IPQ4028 |
| WiFi standards | IEEE 802.11a/b/g/n/ac dual-band technology |
| Wireless security | WPA2-PSK, hidden SSID, IP/MAC filtering |
| MIMO | 2.4GHz 2x2 300Mbps 5.8GHz 2x2 867Mbps |
| Ethernet interface | 2*10/100/1000Mbps |
| Memory/Flash | 256MB DDR3L，32MB Flash |
| network mode | AP/Bridge/Route |
| operating mode | AP / Station / WDS AP / WDS Station |
| Max. transmit power | 2.4G：25dBm、5G：24dBm |
| Configuration management | Supports web configuration, AC remote management, and SNMP management |
| other | Load balancing, 802.11r roaming, client rate limiting, max user configuration, VLAN support, dual firmware backup, QoS, intelligent thermal control, dynamic channel selection, wireless network probe, Watchdog, STP (Spanning Tree Protocol), scheduled reboot |
| Modulation method | Data rate/mode | transmit power | Receive sensitivity |
| 11b/g/n | 1Mbps～54Mbps | 19～22dbm | -70～-93dBm |
| 11b/g/n | HT20/40 (combination) | 21～25dbm | -68～-88dBm |
| 11a/n | 6Mbps～54Mbps | 18～21dbm | -65～-70dBm |
| 11a/n | HT20/40 (combination) | 20～24dbm | -65～-88dBm |
| 11ac | HT20/40/80 (combination) | 18～24dbm | -57～-88dBm |
| Power supply method | 48V POE+ |
| overload current protection | 600A |
| reverse polarity protection | support |
| Maximum power consumption (W) | 12 |
| Average power consumption (W) | 9 |
| Product dimensions (W× H × D) (mm) | 250x250x200mm |
| Weight (kg) | 13 |
| Mounting | Wall installation |
| shell | Metal |
| Protection rating | IP66 |
| explosion-proof class | Exd IIC T6 |
| antenna | Optional external antenna |

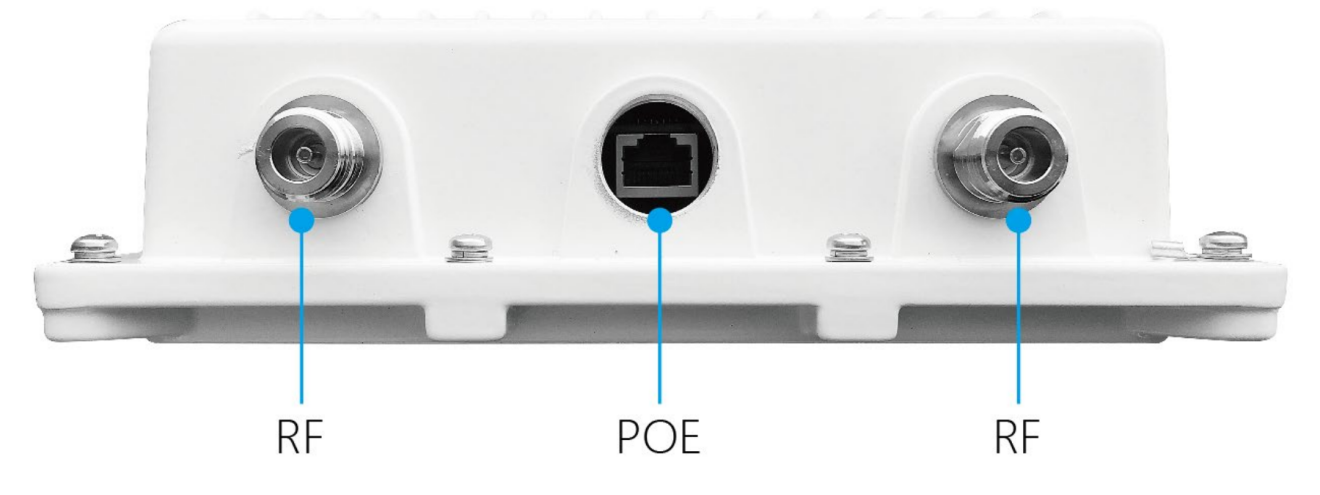

| interface | 2×N type interface |
| MTBF | 200000 hours |
| Storage Temperature | -40℃～85℃ |
| Operating temperature | -40℃～70℃ |
| humidity | 5%～95% RH (non-condensing) |
| surge | POE/GE: common mode 4KV, differential mode 2KV |
| static electricity | Contact 4KV, air 6KV |
| Wind resistance | 150km/h |
| vibration | Complies with IEC 60068-2-6 |
| impact | Complies with IEC 60068-2-27 |
| circuit board | / |
| EMI radiation | Comply with GB/T 9254 / CISPR 32, Class A |
| EMC | Complies with IEC 61000-4-2,3,4,5,6 |
| Product Safety | Comply with GB 4943.1 |
| transportation industry | not applicable |
| EMC | Conforms to EN 301 489 |
| unit | mm |

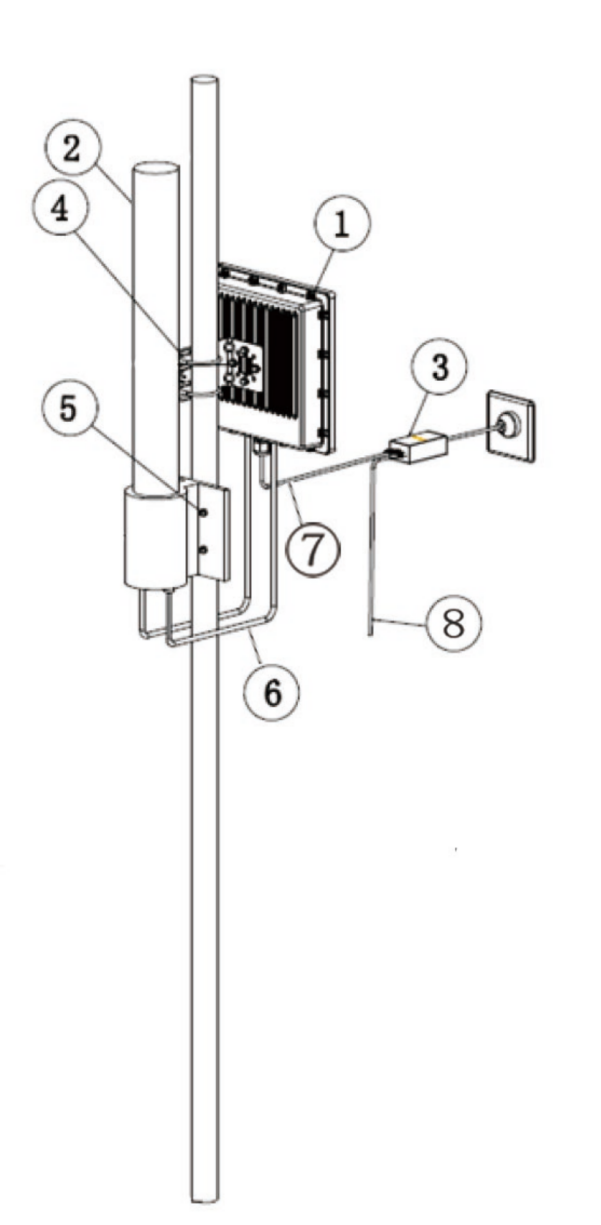

AP
Host antenna
PoE power supply module (PoE adapter)
Host mounting bracket
Antenna mounting bracket
RF feeder
Please connect the PoE port of the power supply module to the PoE interface of the AP host.
The network port (LAN) of the PoE power supply module can be connected to other network devices.
