Max data rate 867 Mbps (5G) & 300 Mbps (2.4G)
2x2 MIMO
Supports 802.3at (PoE+)
IP66 dust/waterproof, operating temperature -40℃~70℃, wind resistance 150 km/h
BEA1000-W5APD1GP1C2P66 series industrial wireless AP/client integrates multiple operating modes for flexible networking. Standard PoE simplifies field power wiring; pole-mount and ceiling-mount options with optional brackets suit poles, walls and other sites.
Industrial hardware architecture with harsh environmental tolerance for dust, rain and extreme temperatures ensures long-term uninterrupted operation. Widely used in wind-power projects, plant wireless networking, long-distance site interconnection and outdoor security video wireless backhaul.
The cable is connected, but the port will not come UP / the link is down. What should I check?
+What are the PoE power specifications?
+Which ring protocols are supported, and what is the self-healing time?
+How should I choose between Layer-2 and Layer-3 industrial switches?
+Can non-OEM SFP optical modules work normally?
+How do I restore factory settings if I forget the device login password?
+What are the power supply requirements for industrial switches?
+What are the operating temperature range and protection rating of industrial switches?
+802.11a/b/g/n/ac
Max. data rate 867 Mbps (5G) & 300 Mbps (2.4G)
2x2 MIMO technology
Support 802.3at protocol (POE+)
IP66 dust/water resistant; operating temperature -40℃~70℃; wind resistance 150 km/h
| processor | IPQ4028 |
| WiFi standards | IEEE 802.11a/b/g/n/ac dual-band technology |
| Wireless security | WPA2-PSK, hidden SSID, IP/MAC filtering |
| Ethernet interface | 1×10/100/1000Mbps |
| operating mode | AP / Station / WDS AP / WDS Station |
| Memory/Flash | 256MB DDR3L、32MB Flash |
| Max. transmit power | 2.4G：25dBm；5G：24dBm |
| network mode | bridge/routing |
| working mode | AP/client |
| other | Scheduled restart, VLAN support, QoS, Watchdog |
| Modulation method | Data rate/mode | transmit power | Receive sensitivity |
| 11b/g/n | 1Mbps～54Mbps | 19～22dBm | -70～-93dBm |
| 11b/g/n | HT20/40(combination) | 21～25dBm | -65～-88dBm |
| 11a/n | 6Mbps～54Mbps | 18～21dBm | -70～-88dBm |
| 11a/n | HT20/40(combination) | 21～25dBm | -65～-88dBm |
| 11ac | VHT20/40/80(combination) | 18～24dBm | -57～-88dBm |
| Power supply method | 48V POE+ |
| overload current protection | 600A |
| reverse polarity protection | support |
| Maximum power consumption (W) | 12 |
| Average power consumption (W) | 9 |

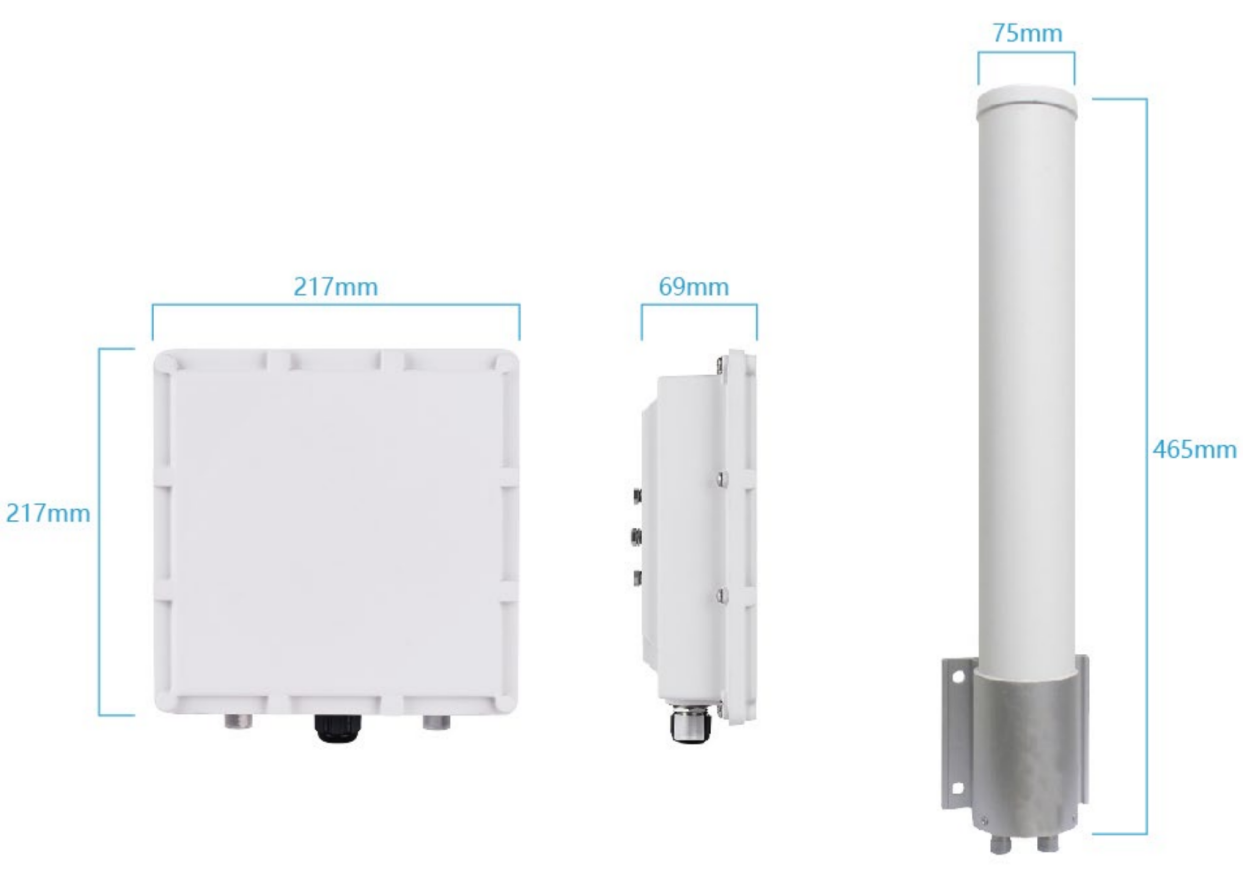

| Product dimensions (W× H × D) (mm) | 217×217×69 |
| Weight (kg) | 1.5 |
| Mounting | Holding pole (pole diameter ≤ 50mm) |
| shell | nonmetal |
| Protection rating | IP66 |
| Antenna installation | Holding pole (pole diameter 40~80mm) |
| Antenna dimensions (mm) | Φ75×465 |
| Antenna weight (kg) | 1.3 |
| Antenna gain | 2.4G：8dBi；5G：10dBi |

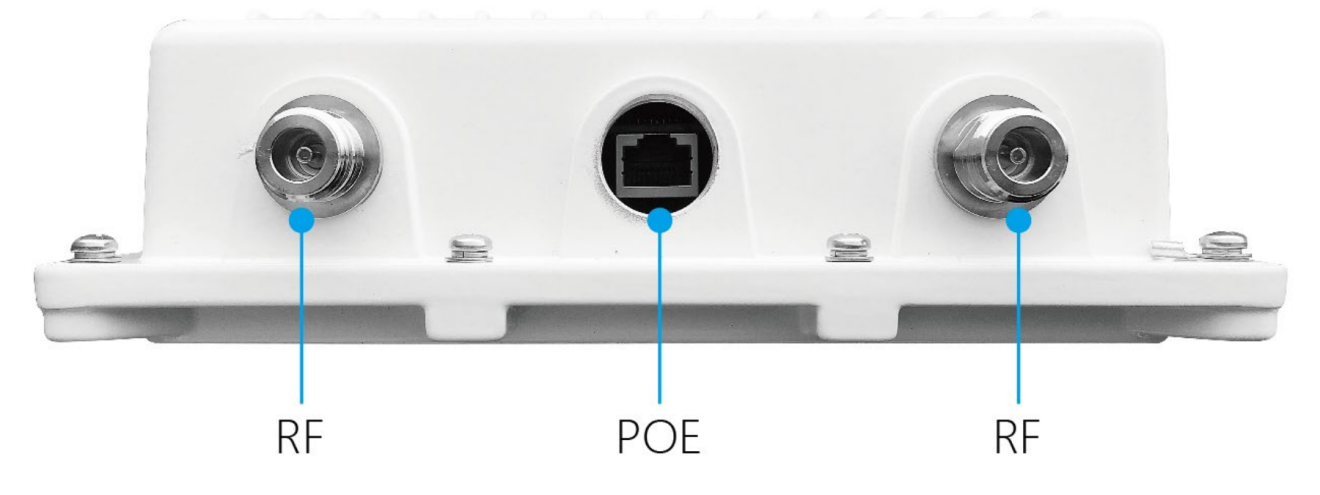

| radio frequency | 2×N type interface |
| MTBF | 200,000 hours |
| Storage Temperature | -40℃～85℃ |
| Operating temperature | -40℃～70℃ |
| humidity | 5%～95% RH (no condensation) |
| surge | POE/GE common mode 4KV, differential mode 2KV |
| static electricity | Contact 4KV, air 6KV |
| Wind resistant | 150km/h |
| vibration | Complies with IEC 60068-2-6 |
| impact | Complies with IEC 60068-2-27 |
| circuit board | / |
| EMI radiation | Comply with GB/T 9254 / CISPR 32, Class A |
| EMC | Complies with IEC 61000-4-2,3,4,5,6 |
| Product Safety | Comply with GB 4943.1 |
| transportation industry | not applicable |
| EMC | Conforms to EN 301 489 |

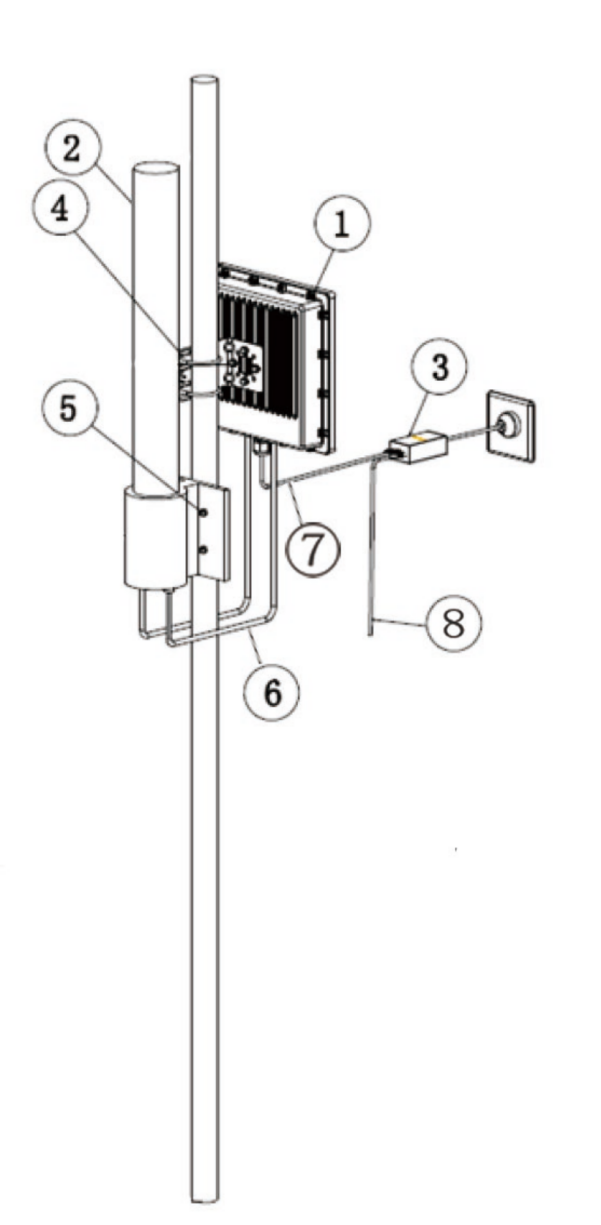

AP
Host antenna
PoE power supply module (PoE adapter)
Host mounting bracket
Antenna mounting bracket
RF feeder
Please connect the PoE port of the power supply module to the PoE interface of the AP host.
The network port (LAN) of the PoE power supply module can be connected to other network devices.
