Max data rate 867 Mbps
Outdoor transmission distance up to 5 km
IP66 rating, operating temperature -40℃~70℃
Supports 802.3at (48V PoE+)
BEA1000-WB50011660 industrial 802.11a/n/ac long-range wireless bridge supports bridge, routing and other modes, with optional AC centralized management. Powered by 802.3at (PoE+), with pole-mount bracket for outdoor installation.
IP66 protection, wide-temperature -40℃~70℃ operation, with lightning and ESD protection for harsh outdoor use. TDMA+ and related optimizations enable up to 5 km PTP/PTMP links, reducing cabling cost for campus, mine and plant wireless backhaul.
The cable is connected, but the port will not come UP / the link is down. What should I check?
+What are the PoE power specifications?
+Which ring protocols are supported, and what is the self-healing time?
+How should I choose between Layer-2 and Layer-3 industrial switches?
+Can non-OEM SFP optical modules work normally?
+How do I restore factory settings if I forget the device login password?
+What are the power supply requirements for industrial switches?
+What are the operating temperature range and protection rating of industrial switches?
+802.11a/n/ac
Max. data rate 867 Mbps
Outdoor max. transmission distance 5 km
Protection rating IP66, operating temperature -40℃~70℃
Support 802.3at protocol (48V POE+)
| processor | IPQ4028 |
| WiFi standards | IEEE 802.11a/n/ac technology |
| Wireless security | WPA2-PSK, Hidden SSID, IP/MAC Filtering |
| Max data rate | 867 Mbps |

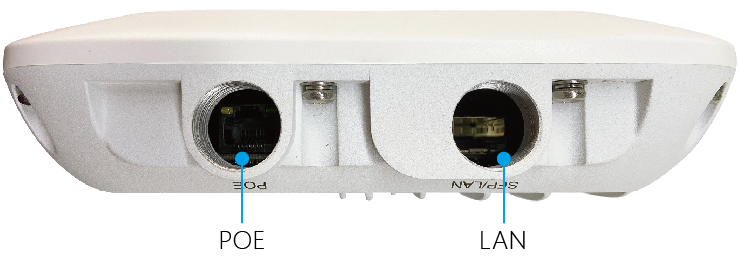

| Ethernet interface | 2*10/100/1000 Mbps |
| Memory/Flash | 256MB DDR3L，32MB Flash |
| network mode | bridge/routing |
| working mode | AP / Station / WDS AP / WDS Station |
| Max. transmit power | 27dBm |
| Configuration management | Supports web configuration, AC remote management, and SNMP management |
| other | Scheduled restart, VLAN, QoS, hardware watchdog, firmware backup, built-in VTrans technology: TDMA+, channel expansion, bandwidth optional, AutoAck |
| Modulation method | Data rate/mode | transmit power | Receive sensitivity |
| 11a/n | 6～54 Mbps | 22～24dBm | -73～-91dBm |
| 11a/n | HT20/40 (combination) | 24～27dBm | -68～-91dBm |
| 11ac | VHT20/40/80 (combination) | 23～27dBm | -60～-91dBm |
| Power supply method | 48V POE+ |
| overload current protection | 600A |
| reverse polarity protection | support |
| Maximum power consumption (W) | 12 |
| Average power consumption (W) | 9 |

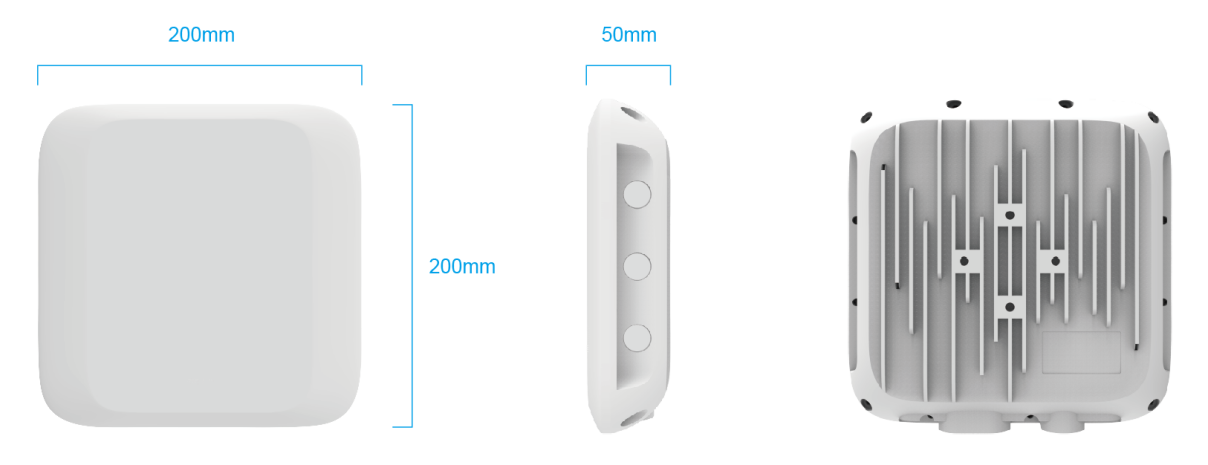

| Product dimensions (W× H × D) (mm) | 200×200×50 mm |
| Weight (kg) | 1.18 |
| Mounting | Pole installation (pole diameter 30~50 mm) |
| shell | nonmetal |
| Protection rating | IP66 |
| antenna | Built-in integrated antenna |
| Antenna gain | 18dBi |
| Antenna beamwidth | Horizontal angle 35° Vertical angle 17° |
| MTBF | 200000 hours |
| Storage Temperature | -40℃～85℃ |
| Operating temperature | -40℃～70℃ |
| humidity | 5%～95% RH (non-condensing) |
| surge | Common mode 4KV, differential mode 2KV |
| static electricity | Contact 4KV, air 6KV |
| Wind resistance | 150km/h |
| vibration | Complies with IEC 60068-2-6 |
| impact | Complies with IEC 60068-2-27 |
| circuit board | / |
| EMI radiation | Comply with GB/T 9254 / CISPR 32, Class A |
| EMC | Complies with IEC 61000-4-2,3,4,5,6 |
| Product Safety | Comply with GB 4943.1 |
| transportation industry | not applicable |
| EMC | Conforms to EN 301 489 |

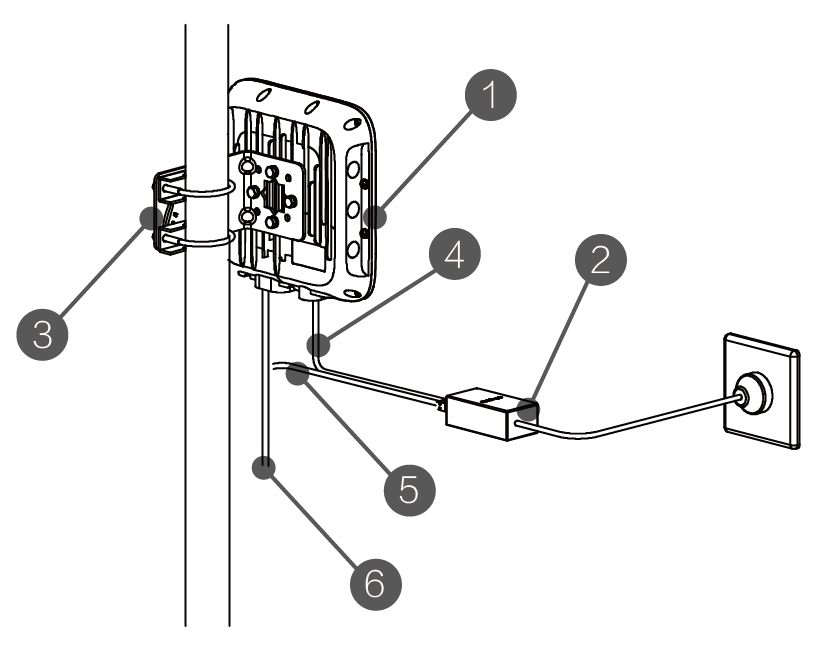

1.Wireless transmission device
2.POE power supply
3. Equipment mounting bracket
4. The device’s POE port can be connected to POE power supply
5. The LAN port on the POE end can be connected to other external devices
6. The device LAN port can be connected to other external devices
*The actual installation height depends on the transmission distance and installation environment, and there is no obstruction between the two points.
