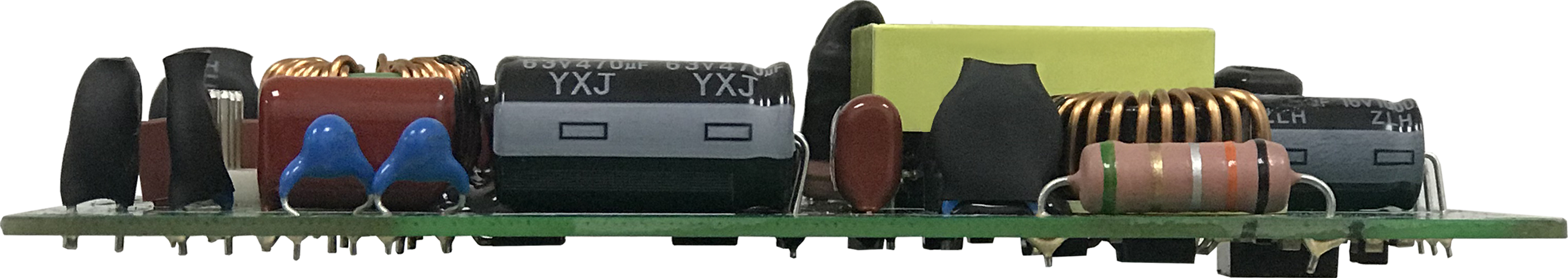

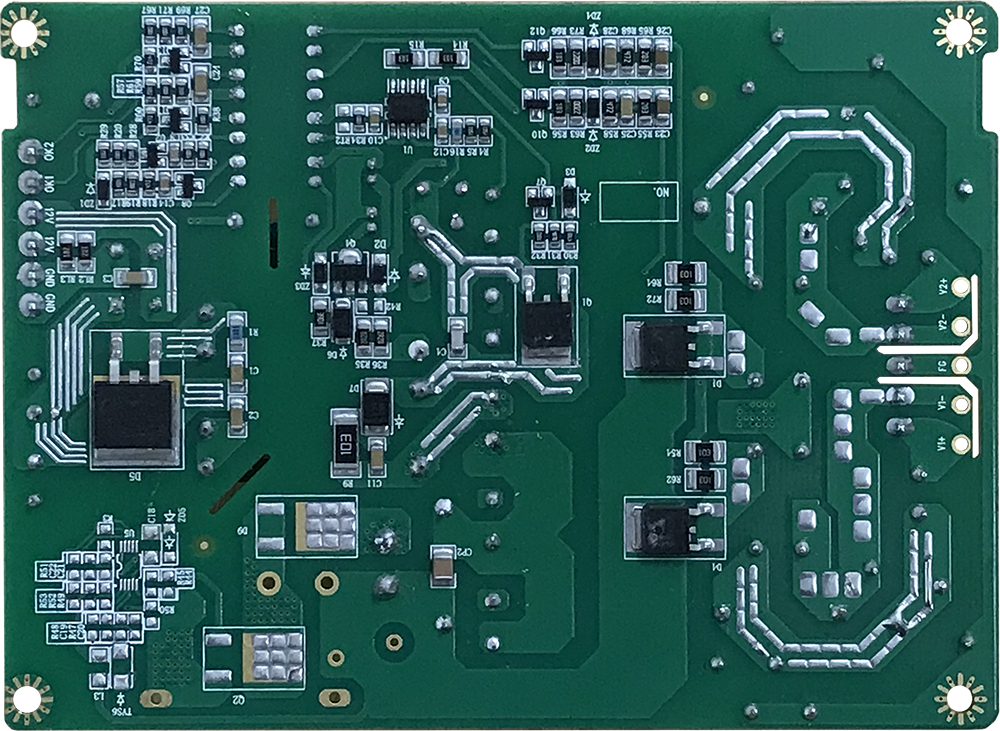

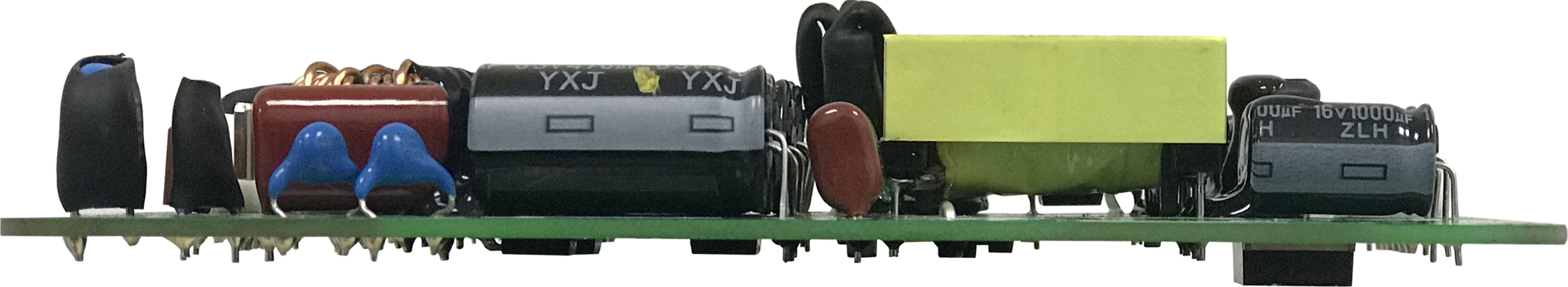

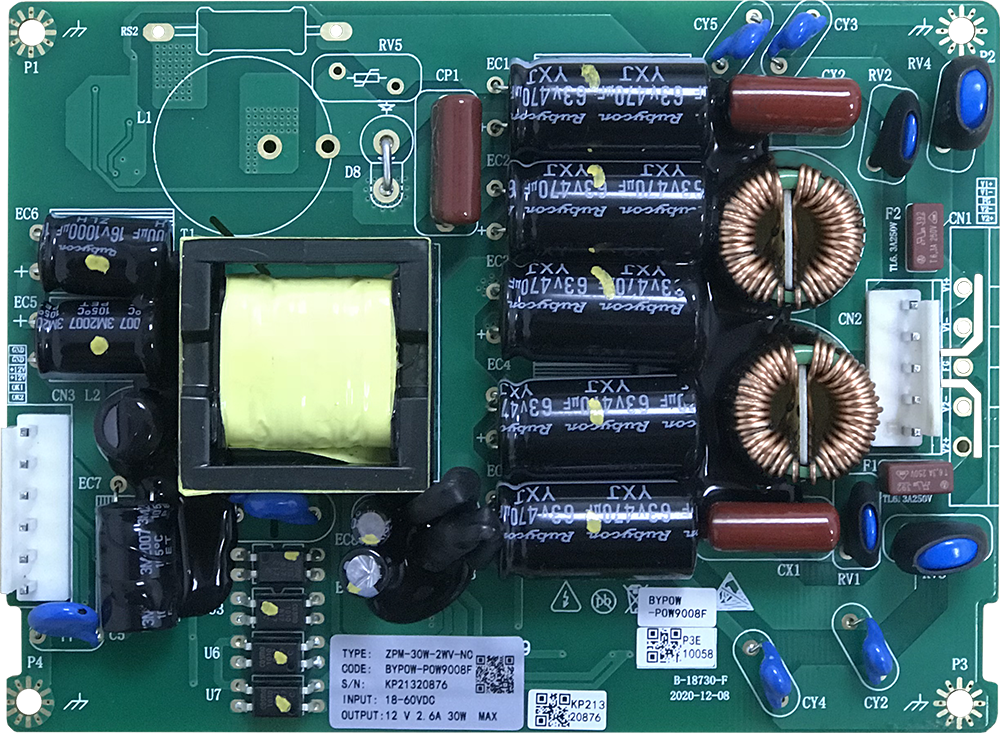

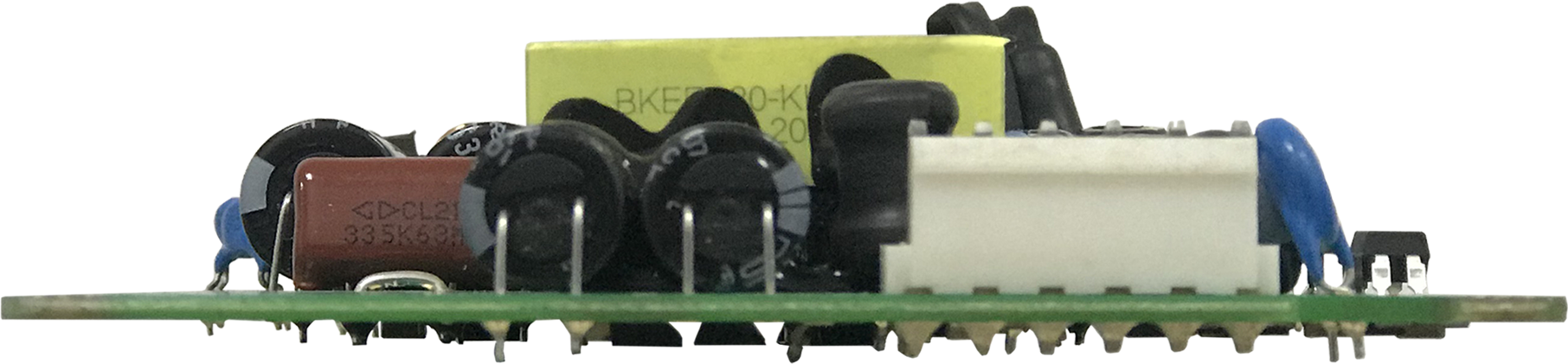

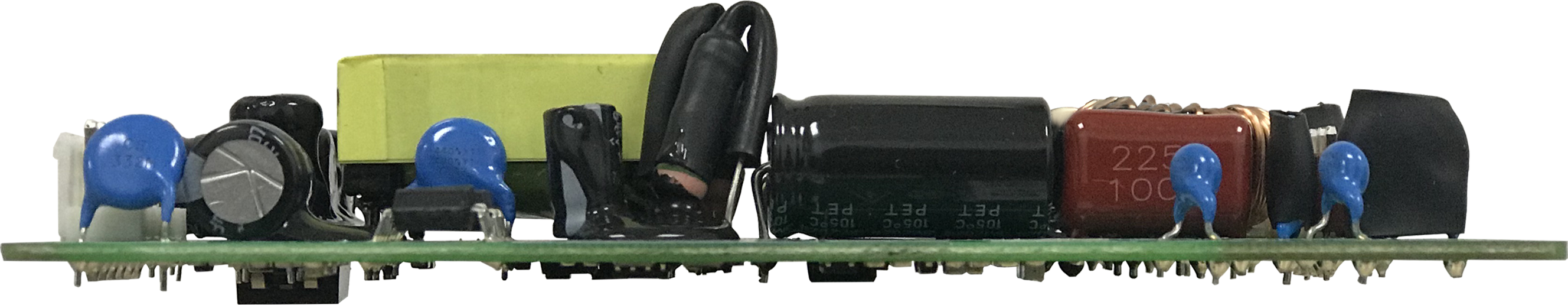

ZPM-30W-2WV-NC Open-Frame Industrial Power Supply
ZPM-30W-2WV-NC Open-Frame Industrial Power Supply
ZPM-30W-2WV-NC Open-Frame Industrial Power Supply
ZPM-30W-2WV-NC Open-Frame Industrial Power Supply
ZPM-30W-2WV-NC Open-Frame Industrial Power Supply
ZPM-30W-2WV-NC Open-Frame Industrial Power Supply
ZPM-30W-2WV-NC Open-Frame Industrial Power Supply

ZPM-30W-2WV-NC Open-Frame Industrial Power Supply

Universal full-range AC input

Efficiency up to 80%

Protections: short circuit / overload / over voltage / over temperature

100% full-load burn-in

Get a Quote Claim Coupon Download
Download

Product Overview

Certifications

Contact

FAQ

  • The cable is connected, but the port will not come UP / the link is down. What should I check?

    +

    1) Confirm an industrial-grade cable and proper RJ45 crimping. 2) Check speed/duplex settings; set both ends to auto-negotiation. 3) Check whether the port is administratively shut down, in the wrong VLAN, or restricted by port security.

  • What are the PoE power specifications?

    +

    Standard PoE and PoE+ are supported, with max per-port power of 15.4 W and 30 W respectively. Total system power budget must be calculated during selection to avoid insufficient supply when too many PDs are connected.

  • Which ring protocols are supported, and what is the self-healing time?

    +

    Mainstream industrial ring protocols such as ERPS (G.8032), RSTP/STP, MRP, and PRP are supported. ERPS typical self-healing is ≤50 ms; traditional RSTP is second-level. It is recommended to use one ring protocol consistently across the network.

  • How should I choose between Layer-2 and Layer-3 industrial switches?

    +

    Layer-2 switches: basic features such as VLAN, ring networks, and port mirroring; suited to access layers and same-subnet networking with strong cost performance. Layer-3 switches: add static routing, OSPF, DHCP relay, multicast, and other routing features—choose these when cross-subnet communication or core/aggregation networks are required.

  • Can non-OEM SFP optical modules work normally?

    +

    The device is compatible with generic IEEE 802.3 SFP modules. Non-OEM modules can usually be recognized, but some brands may have compatibility issues. OEM modules are recommended.

  • How do I restore factory settings if I forget the device login password?

    +

    1) Hardware reset: press and hold the RESET button for 5–10 seconds; the device reboots to factory defaults. 2) Software reset: use the vendor NMS to restore factory settings remotely. All custom configurations will be cleared after restore.

  • What are the power supply requirements for industrial switches?

    +

    DC models support 18–60 VDC or 9.6–60 VDC; AC models support 100–240 VAC, with dual redundant power inputs. Phoenix terminal wiring; reverse-polarity protection is built in so normal reverse connection will not damage the device.

  • What are the operating temperature range and protection rating of industrial switches?

    +

    All-metal aluminum alloy housing. Operating temperature is -40°C to +75°C; premium wide-temperature models reach -40°C to +85°C. Typical enclosure rating is IP40.

Features

Compact size

Universal full-range AC input

Efficiency up to 80%

Protections: short circuit / overload / over voltage / over temperature

Natural convection cooling

Standby power ≤3W

100% full-load burn-in

Specifications

  • Output characteristics-

    DC voltage12VDC
    Rated current2.5A
    Current range0~2.5A
    Rated power30W
    Ripple and noise120 mVp-p
    Line regulation≤± 1%
    Load Adjustment Rate≤±3%
    Power-on delay≤3 s / 48VDC (rated load)
    Rise time≤50 ms / 24VDC (rated load)
    Hold-up time (Typ.)≥100 ms / 48VDC (rated load)

  • Input Characteristics+

    Voltage range18~60VDC
    Efficiency≥80%
    Maximum input current≤2.8A
    Start impulse current≤90A
    Leakage current≤2mA

  • Protection Characteristics +

    Overload120%~150% of rated output power
    Overvoltage13V~17V
    Over temperatureshut off output, auto recovery when temperature normal

  • Environmental Characteristics +

    Operating temperature-40~+85℃
    Operating Humidity20~95%, no condensation
    Storage Temperature-45~+90℃
    Storage Humidity10~95%, no condensation
    Cooling methodNatural cooling

  • Safety and EMC +

    IndustrialComply with EN61000-6-2 standard;
    Comply with EN61000-6-4 standard;
    power industryComply with IEC61850-3 standard;
    Comply with IEEE1613 standard;
    Rail transitWayside equipment power compliant with EN50121-4;
    Onboard equipment power compliant with EN50155;
    EMCComply with EMC standards;
    Surge/lightning protection up to 4A class;
    Safety certificationMeet UL1310 requirements;
    Meet EN/IEC62368-1;

  • Physical Characteristics +

    Dimensions (L×W × H)128mm × 94mm × 26mm
    Weight< 0.2kg

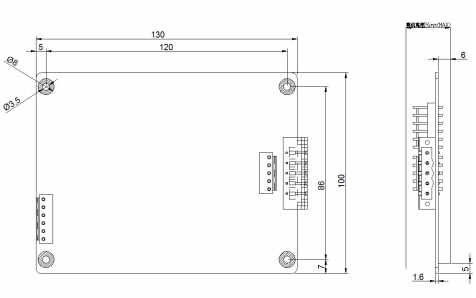

Dimensions

DimensionsDimensions

Accessories

modelProduct Specification
ZPM-30W-2WV-NCDual-input 18-60VDC, 12VDC output, 30W industrial power supply with 2 POWER_OK signals. For 1U industrial equipment; compliant with power and transportation industry standards.
