MAC-M480-24 Din-Rail Industrial Power Supply
MAC-M480-24 Din-Rail Industrial Power Supply

MAC-M480-24 Din-Rail Industrial Power Supply

Get a Quote Claim Coupon Download
Download

Product Overview

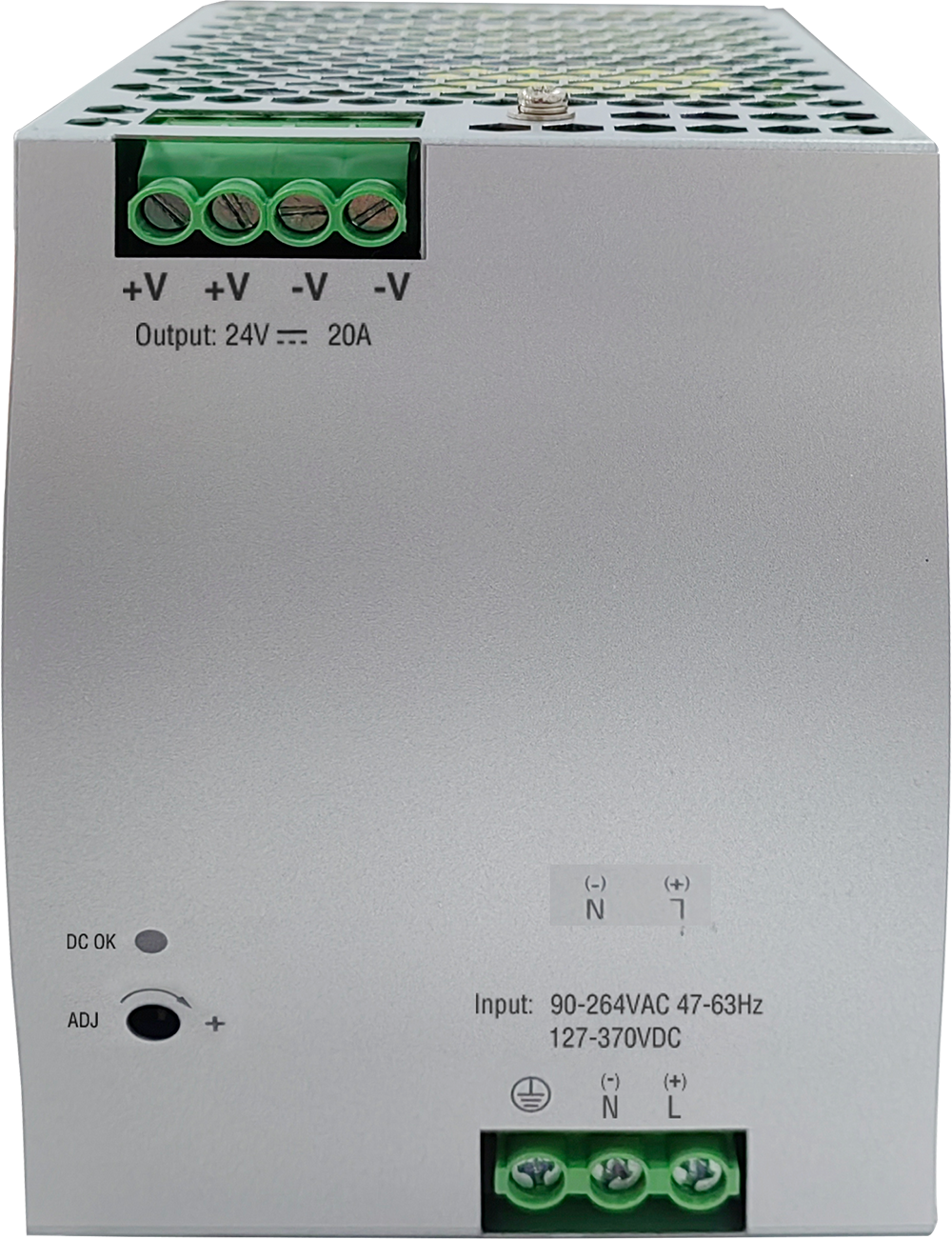

MAC-M480-24 is a cost-effective, standard DIN-rail mount, high-efficiency switching power supply. The MAC series DIN-rail power supplies feature high reliability, stable output voltage, high efficiency, fast dynamic response, comprehensive protection, excellent EMI immunity, compact size, light weight and a space-saving standard rail design. Typical applications include industrial control equipment, communication systems, intelligent buildings, digital information systems and robotics.

Safety standards: EN60950, UL61010, TUV, CCC; EMC standards: GB/T 17626, EN55032, GB/T 9254, EN61000

Certifications

Contact

FAQ

  • The cable is connected, but the port will not come UP / the link is down. What should I check?

    +

    1) Confirm an industrial-grade cable and proper RJ45 crimping. 2) Check speed/duplex settings; set both ends to auto-negotiation. 3) Check whether the port is administratively shut down, in the wrong VLAN, or restricted by port security.

  • What are the PoE power specifications?

    +

    Standard PoE and PoE+ are supported, with max per-port power of 15.4 W and 30 W respectively. Total system power budget must be calculated during selection to avoid insufficient supply when too many PDs are connected.

  • Which ring protocols are supported, and what is the self-healing time?

    +

    Mainstream industrial ring protocols such as ERPS (G.8032), RSTP/STP, MRP, and PRP are supported. ERPS typical self-healing is ≤50 ms; traditional RSTP is second-level. It is recommended to use one ring protocol consistently across the network.

  • How should I choose between Layer-2 and Layer-3 industrial switches?

    +

    Layer-2 switches: basic features such as VLAN, ring networks, and port mirroring; suited to access layers and same-subnet networking with strong cost performance. Layer-3 switches: add static routing, OSPF, DHCP relay, multicast, and other routing features—choose these when cross-subnet communication or core/aggregation networks are required.

  • Can non-OEM SFP optical modules work normally?

    +

    The device is compatible with generic IEEE 802.3 SFP modules. Non-OEM modules can usually be recognized, but some brands may have compatibility issues. OEM modules are recommended.

  • How do I restore factory settings if I forget the device login password?

    +

    1) Hardware reset: press and hold the RESET button for 5–10 seconds; the device reboots to factory defaults. 2) Software reset: use the vendor NMS to restore factory settings remotely. All custom configurations will be cleared after restore.

  • What are the power supply requirements for industrial switches?

    +

    DC models support 18–60 VDC or 9.6–60 VDC; AC models support 100–240 VAC, with dual redundant power inputs. Phoenix terminal wiring; reverse-polarity protection is built in so normal reverse connection will not damage the device.

  • What are the operating temperature range and protection rating of industrial switches?

    +

    All-metal aluminum alloy housing. Operating temperature is -40°C to +75°C; premium wide-temperature models reach -40°C to +85°C. Typical enclosure rating is IP40.

Features

Specifications

  • Dimensions/Weight -

    Dark129.2mm(±0.3)
    Width85.5mm(±0.3)
    Height125.2mm(±0.3)
    N.W.≤ 1.35kg

  • Temperature, humidity+

    Operating temperature-25℃ ~ +70℃
    Storage Temperature-25℃ ~ +70℃
    Operating Humidity5%–95%, non-condensing
    Storage Humidity5%–95%, non-condensing

  • Input Characteristics+

    Input Voltage Range 190~264V AC
    Input Voltage Range 2127~370V DC
    Rated input voltage110VAC, 220VAC
    Input voltage frequency47~63Hz
    Standby power consumption<5W @ 24V no load, input 230V AC, 25℃
    Input fuse (built-in)8A slow-blow fuse
    Start impulse current40A @ 230V AC, 25°C, cold start
    Recommended Reserve FuseT8A/250V AC,5.08mm
    Maximum input current≤8.6A, Vin =90V AC
    -Input over-voltage protection/
    Leakage current3.5mA Max.
    Wiring MethodTerminal block screw connection
    Efficiency≥92.5%, 24V20A@230V AC 25℃

  • Output characteristics+

    Rated output voltage24V DC
    Output voltage adjustment range24 ~ 28V DC
    Output voltage range≤± 1%
    Capacitive load4700 μF (min.)
    Rated output current20A
    Output ripple & noise≤150mV p-p (20 MHz bandwidth limited)
    Rise time≤ 100ms
    Power-on delay≤3.0s,115V AC ≤1.5s, 230V AC
    Rated output power480W
    Hold-up time≧ 16ms
    Voltage Adjustment Rate±0.5%
    Load Adjustment Rate± 1%
    Overshoot margin≤±5% (recovery time ≤1ms)
    Wiring MethodTerminal block screw connection

  • Electrical.+

    Output current limiting protection22 ~ 30A
    Safety isolation for shock protectionPrimary pole isolation transformer 3000V AC
    -Output Overvoltage Protection30 ~ 35V output lock machine
    Over-heated protectionCase temperature: >70℃, output shutdown
    Output short-circuit protectionConstant current or hiccup; auto recovery after fault clear
    Built-in current limiting device8A slow-blow fuse

  • Input Connection+

    Wiring MethodTerminal block, screw connection
    Terminal circuit count3 PIN (L/N/PE)
    Wire specifications12～ 14 (AWG/kcmil)
    Cross-sectional area of flexible wire2.05 mm²
    Rigid conductor cross-sectional area2.05 ～6 mm²
    Tightening torque1.0 Nm (max.)

  • Output connection+

    Wiring MethodTerminal block, screw connection
    Terminal circuit count4 PIN (-24V/-24V/+24V/+24V)
    Wire specifications8～ 12（AWG/kcmil）
    Cross-sectional area of flexible wire2.05 ～2.5 mm²
    Rigid conductor cross-sectional area2.05 ～6 mm²
    Tightening torque0.5 Nm (max)

  • Safety insulation+

    Electrical resistanceEN 60950-1
    Leakage CurrentEN 60950-1
    Insulation resistanceEN 60950-1
    Earth resistanceEN 60950-1

  • EMC/Shock/Vibration+

    EMIEN 55032 CLASS A EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-11 EN 61000-3-2 CLASS A
    Shock testingIEC 60068-2-27
    Electromagnetic Immunity—
    Vibration testIEC 60068-2-6
    Harmonic current—

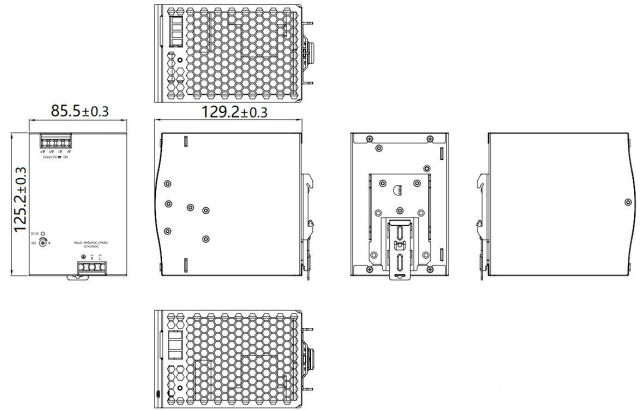

Dimensions

Dimensions

Accessories
