Backplane bandwidth 20 Gbps
Supports PoE per IEEE 802.3af/at
Max output power 30W per PoE port
Redundant dual power input design

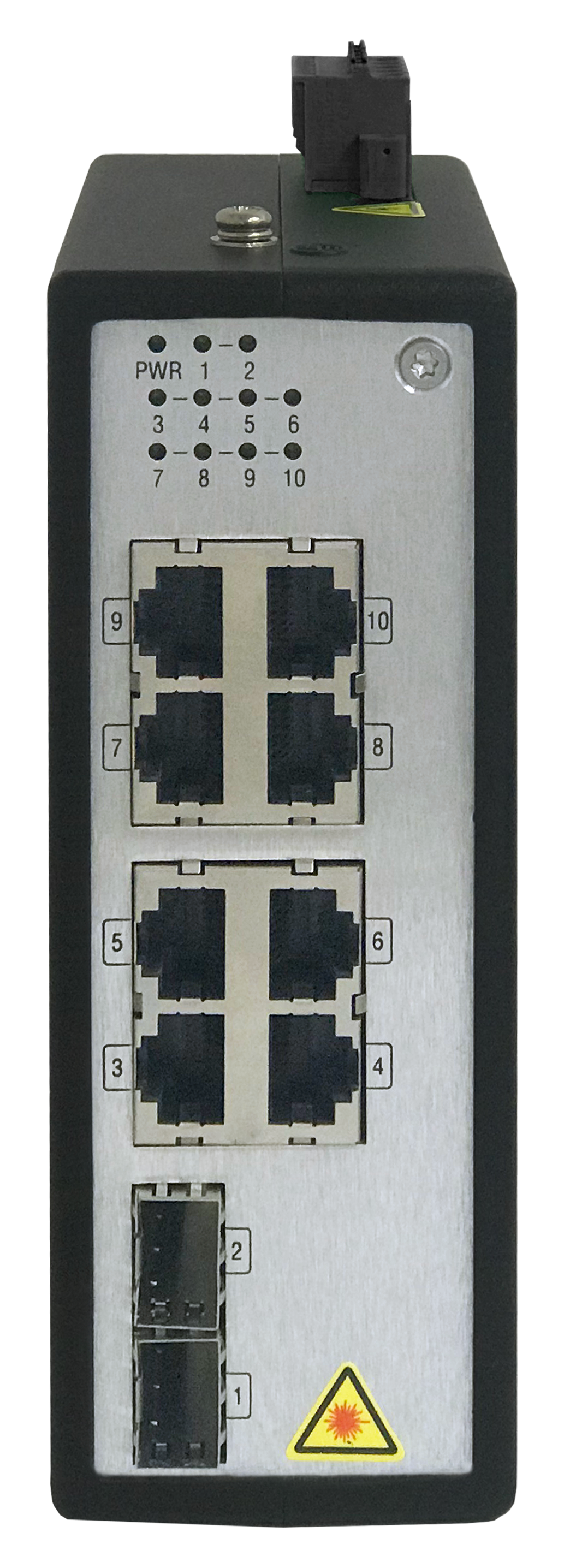

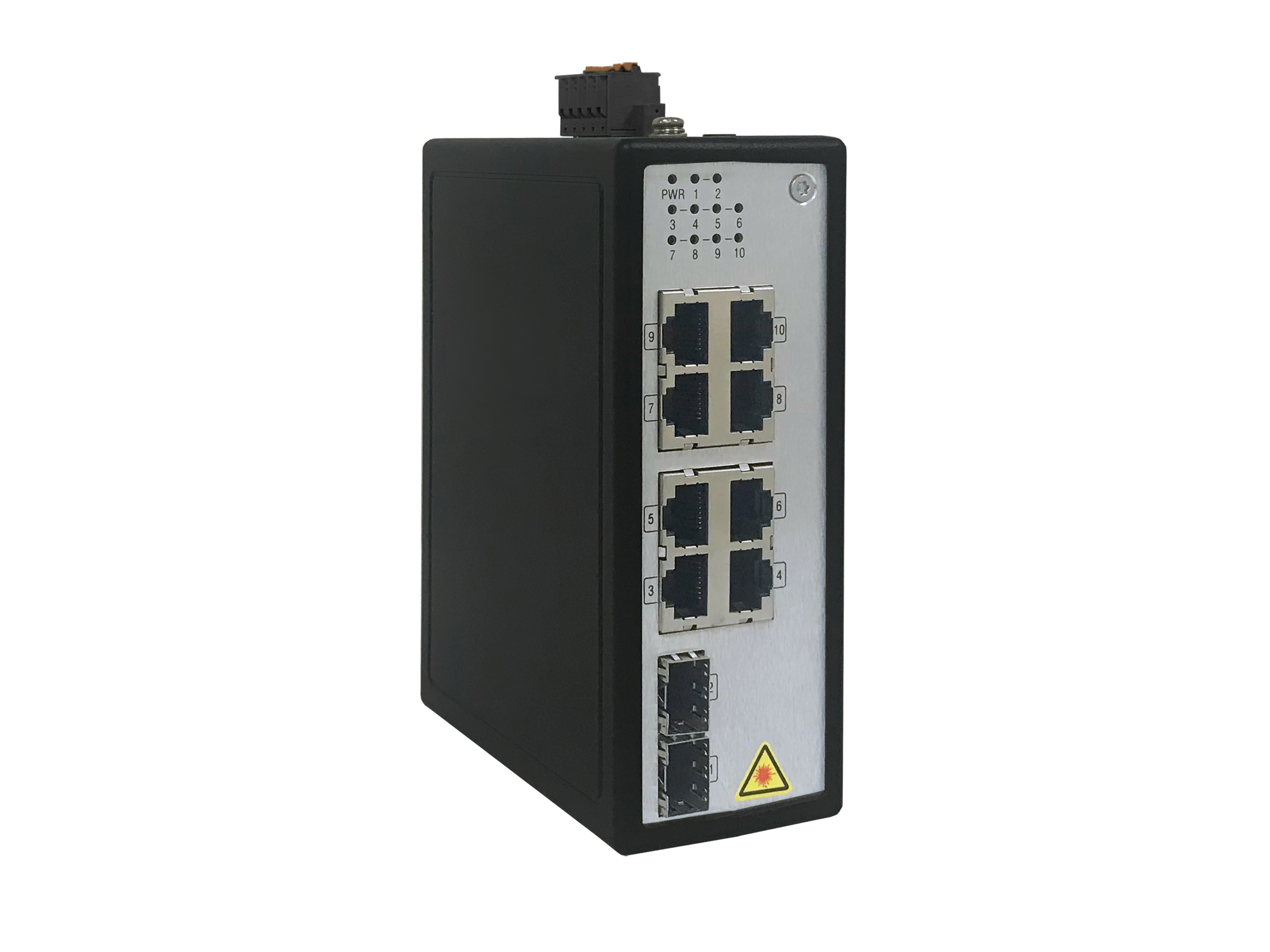

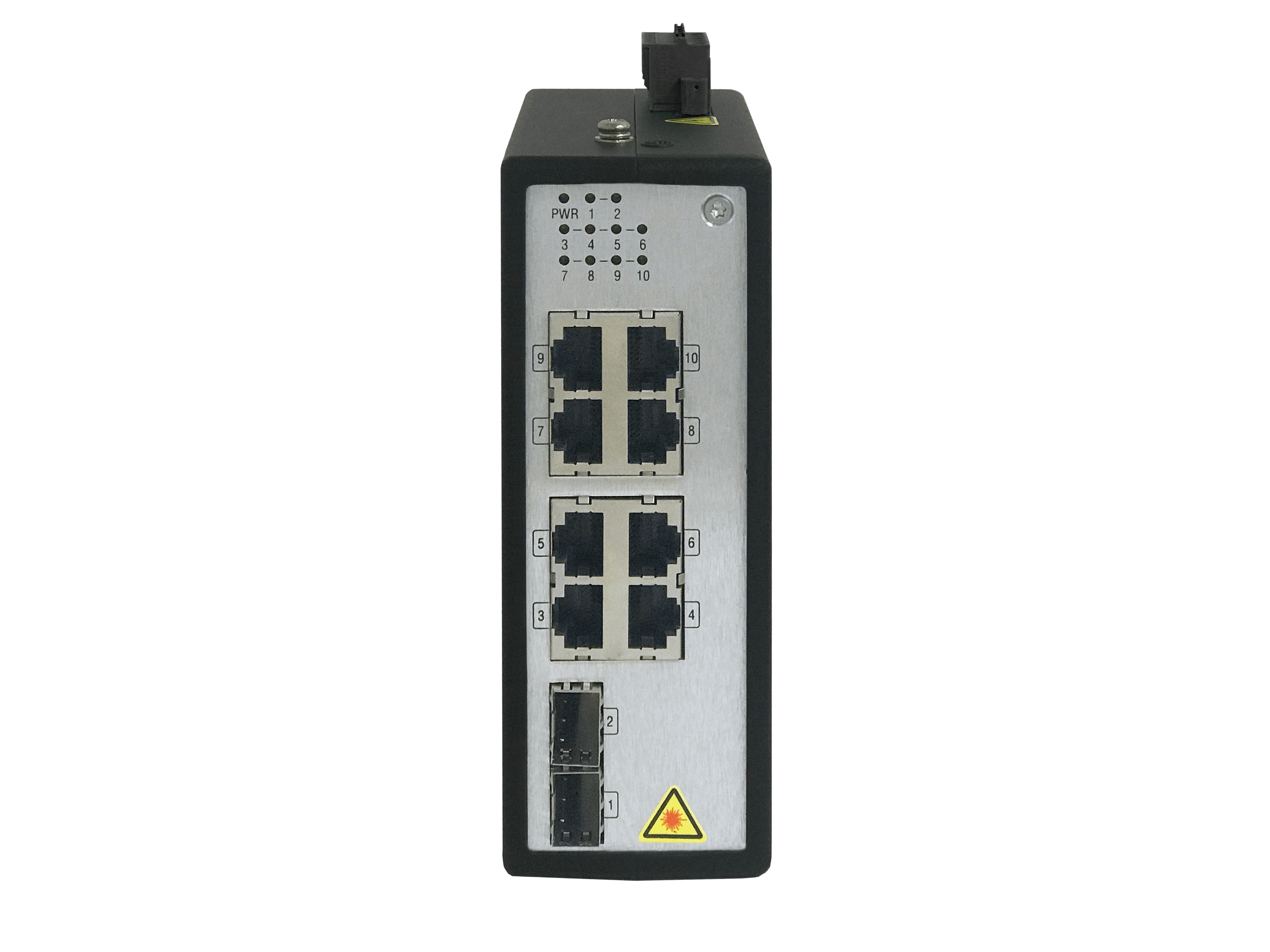

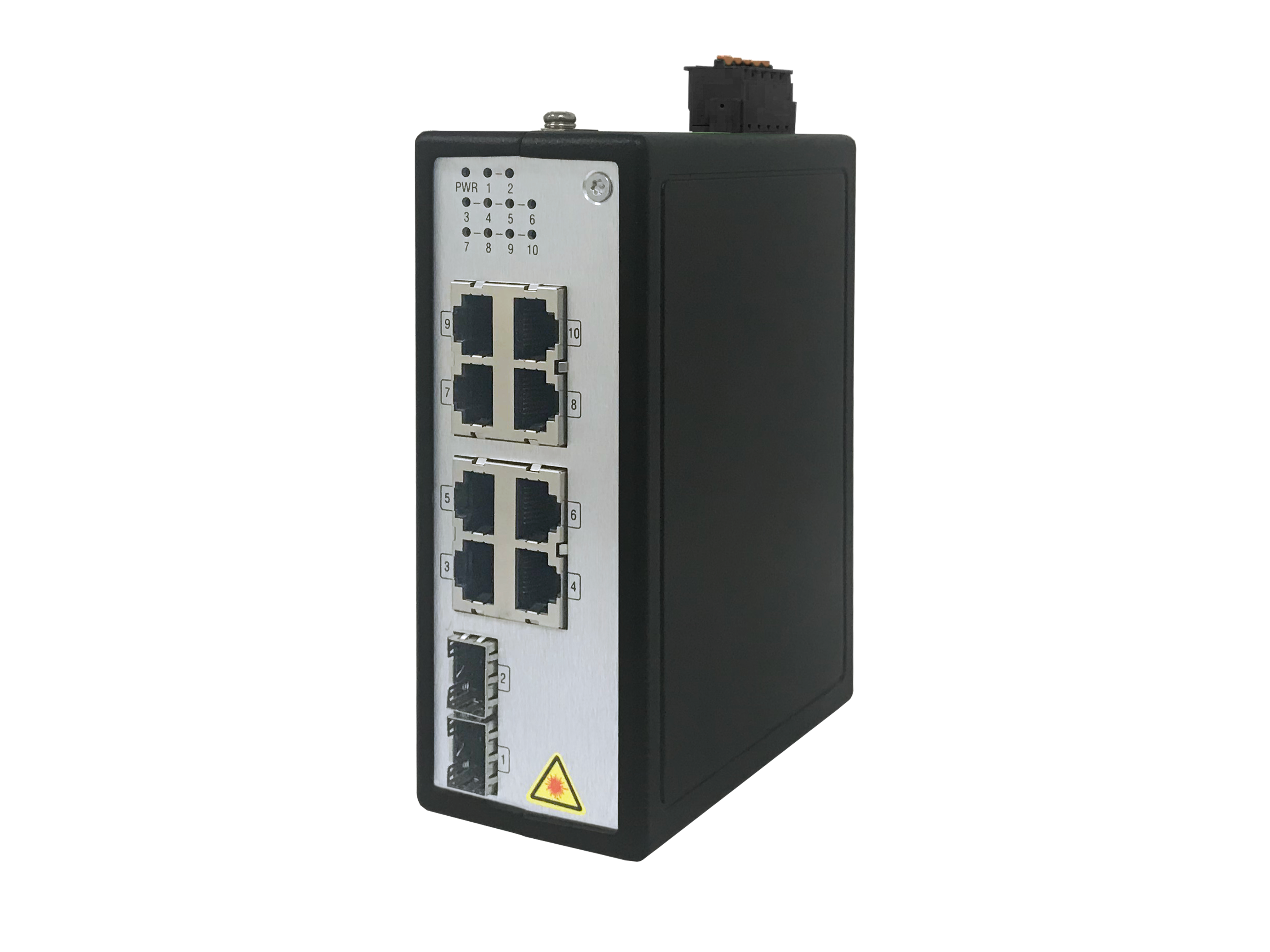

The TOM1000 series unmanaged industrial switch supports 2 Gigabit SFP slots + 8 Gigabit copper ports for harsh industrial environments as a cost-effective Ethernet solution. PoE models support centralized power with up to 30W per port. Operating temperature -40°C ~ 75°C. All models pass strict burn-in testing for industrial automation. Rugged aluminum alloy housing with optional fiber connectivity.
The cable is connected, but the port will not come UP / the link is down. What should I check?
+What are the PoE power specifications?
+Which ring protocols are supported, and what is the self-healing time?
+How should I choose between Layer-2 and Layer-3 industrial switches?
+Can non-OEM SFP optical modules work normally?
+How do I restore factory settings if I forget the device login password?
+What are the power supply requirements for industrial switches?
+What are the operating temperature range and protection rating of industrial switches?
+All Gigabit ports
Backplane bandwidth 20Gbps
The TNM4000 general-purpose managed rack-mount industrial switch is fanless with redundant dual power inputs to avoid fan-failure risks and keep running if one PSU fails, greatly improving reliability and continuity. It supports redundant rings (ERPS, MRP, etc.) and RSTP/STP for fast network fault recovery and high backbone availability.
The cybersecurity power-industry switch supports management features such as IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS and port mirroring.
Redundant dual power input design
die-cast aluminum alloy housing
Fanless , -40°C to +75°C operating ambient temperature
MTBF≥400,000 hours
| Backplane bandwidth | 20Gbps |
| Switching Technology | store-and-forward |
| MAC address table | 4K |
| packet buffer | 1.5 Mbits |
| switching rate | 148,800 pps/FE port; 1,488,000 pps/GE port |

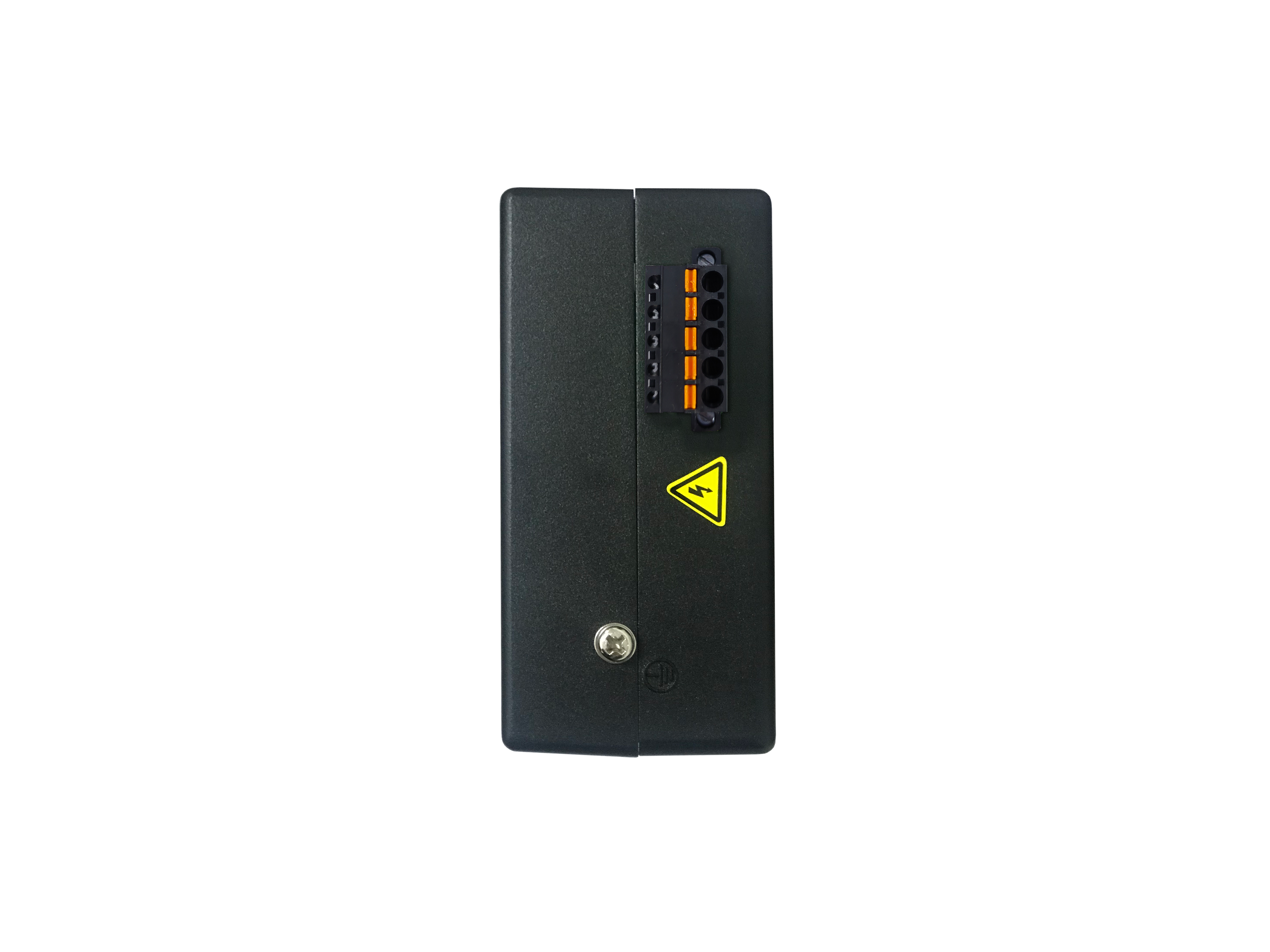

| connection | 1 removable 5-PIN terminal block |
| Input voltage | 24 ~ 240VDC or 100 ~ 240VAC , dual input48~54VDC , dual input (PoE models) |
| overload current protection | Supports |
| reverse polarity protection | Supports |
| Power consumption | ≤6W |

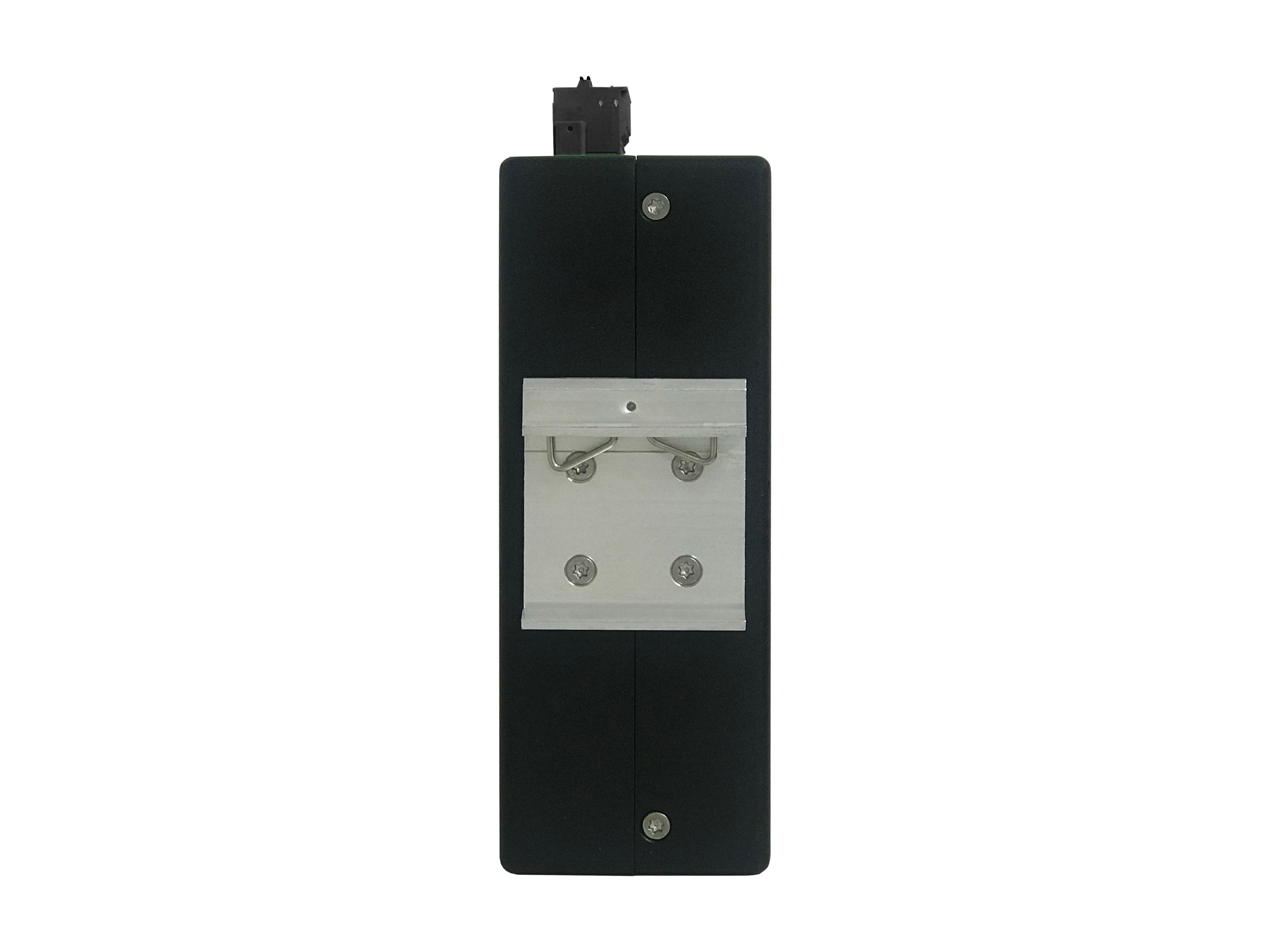

| Mounting method | Din-Rail mounting |
| housing | die-cast aluminum alloy housing |
| protection rating | IP40 IP30（PoE models） |
| Dimensions (W×H×D) | 52mm x 140mm x 110mm |
| Weight | ≤0.7KG |
| MTBF | ≥400,000 H |
| storage temperature | ‐40°C ~ 85°C |
| Operating temperature | ‐40°C ~ 75°C |
| Humidity | 5% ~ 95% (non-condensing) |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| free fall | IEC 60068-2-31 |
| PCB | Compliant with IPC standards |
| EMI radiation | FCC 47 CFR Part 15 Class A EN55032 Class A EN55035 Class A |
| EMC | IEC(EN)61000-4-2, Level 4 IEC(EN)61000-4-3, Level 3 IEC(EN)61000-4-4, Level 4 IEC(EN)61000-4-5, Level 4 IEC(EN)61000-4-6, Level 3 IEC(EN)61000-4-9, Level 5 |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B C lass A |
| hazardous area | UL/cUL1604 Class 1 Div 2 (certification in progress) |
| transportation industry | JT/T817-2011 ; NEMA-TS2 (certification in progress) |
| rail industry | EN50121-4 |
| power industry | IEC61850-3 IEEE1613（C37.90.x） |
| industrial control industry | UL/cUL61010 |
| shipbuilding industry | GL (certification in progress) |
| Model | Product Specification |
| TOM1000-ISA10U2080 | Full aluminum alloy all-black TOM1000 series 10-port DIN-rail unmanaged industrial switch: 8×10/100/1000BaseT + 2×100/1000BaseX SFP (modules not included). IP40; operating temperature -40°C ~ +75°C; MTBF≥400,000 hours. Redundant dual isolated power (24~240VDC/100~240VAC). Power cord sold separately. |
| TOM1000-ISA10F2080P | All-black with Centauri software, 24-port DIN-rail Layer-3 industrial switch: 16×10/100/1000BaseT + 8×2.5G/1.0G/100M auto-sensing SFP, redundant dual isolated power (24~240VDC or 100~240VAC). One relay alarm output (250VAC 2A@250VAC or 125VDC 2A@30VDC) plus management Console. Operating temperature -40°C ~ +85°C; IP40. |
