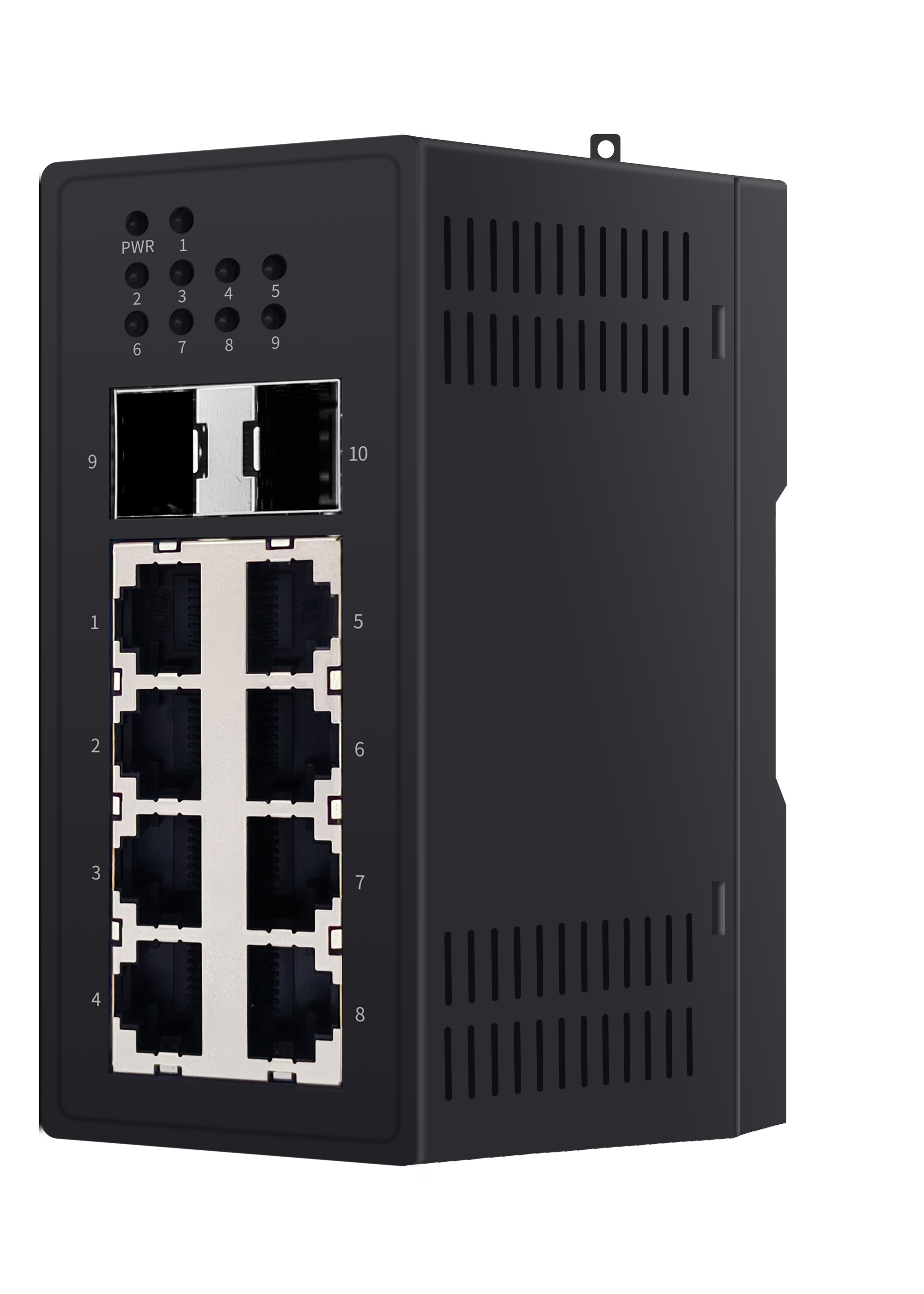

PAT300 Series All-Domestic Din-Rail Unmanaged Industrial Switch
PAT300 Series All-Domestic Din-Rail Unmanaged Industrial Switch

PAT300 Series All-Domestic Din-Rail Unmanaged Industrial Switch

Backplane bandwidth up to 20 Gbps

Corrosion- and oxidation-resistant industrial resin housing

Wire-speed forwarding and auto MDI/MDI-X on all ports; long-distance transmission supported

IP40 protection rating

Get a Quote Claim Coupon Download
Download

Product Overview

The PAT300 series fully domestic DIN-rail unmanaged industrial switch supports 5 or 8 Gigabit or FE copper ports, or 1 Gigabit optical + 4 Gigabit copper, or 2 Gigabit optical + 8 Gigabit copper, for harsh industrial environments as a cost-effective homegrown controllable solution. Operating temperature -40°C~ +75°C with excellent environmental adaptability.

The PAT300 series fully domestic DIN-rail unmanaged industrial switch uses fully domestic design with homegrown controllable chips and software for supply-chain and information security. Dual 9.6~60VDC inputs, DIN-rail mounting, industrial resin housing with corrosion-/oxidation resistance, IP40, high-level EMI/EMC tests and strict burn-in meet security-industry requirements.

Certifications

Contact

FAQ

  • The cable is connected, but the port will not come UP / the link is down. What should I check?

    +

    1) Confirm an industrial-grade cable and proper RJ45 crimping. 2) Check speed/duplex settings; set both ends to auto-negotiation. 3) Check whether the port is administratively shut down, in the wrong VLAN, or restricted by port security.

  • What are the PoE power specifications?

    +

    Standard PoE and PoE+ are supported, with max per-port power of 15.4 W and 30 W respectively. Total system power budget must be calculated during selection to avoid insufficient supply when too many PDs are connected.

  • Which ring protocols are supported, and what is the self-healing time?

    +

    Mainstream industrial ring protocols such as ERPS (G.8032), RSTP/STP, MRP, and PRP are supported. ERPS typical self-healing is ≤50 ms; traditional RSTP is second-level. It is recommended to use one ring protocol consistently across the network.

  • How should I choose between Layer-2 and Layer-3 industrial switches?

    +

    Layer-2 switches: basic features such as VLAN, ring networks, and port mirroring; suited to access layers and same-subnet networking with strong cost performance. Layer-3 switches: add static routing, OSPF, DHCP relay, multicast, and other routing features—choose these when cross-subnet communication or core/aggregation networks are required.

  • Can non-OEM SFP optical modules work normally?

    +

    The device is compatible with generic IEEE 802.3 SFP modules. Non-OEM modules can usually be recognized, but some brands may have compatibility issues. OEM modules are recommended.

  • How do I restore factory settings if I forget the device login password?

    +

    1) Hardware reset: press and hold the RESET button for 5–10 seconds; the device reboots to factory defaults. 2) Software reset: use the vendor NMS to restore factory settings remotely. All custom configurations will be cleared after restore.

  • What are the power supply requirements for industrial switches?

    +

    DC models support 18–60 VDC or 9.6–60 VDC; AC models support 100–240 VAC, with dual redundant power inputs. Phoenix terminal wiring; reverse-polarity protection is built in so normal reverse connection will not damage the device.

  • What are the operating temperature range and protection rating of industrial switches?

    +

    All-metal aluminum alloy housing. Operating temperature is -40°C to +75°C; premium wide-temperature models reach -40°C to +85°C. Typical enclosure rating is IP40.

Features

Backplane bandwidth up to 20 Gbps

Wide and diverse power ranges

Corrosion- and oxidation-resistant industrial resin housing

The TCC4100 series uses CPLD dynamic reconfiguration and reprogramming for high stability/reliability with local/remote monitoring of key parameters. Unique extended industrial-grade design suits harsh and field environments.

IP40 Ingress protection

Redundant dual input power design

Compact and easy to install; plug-and-play, no configuration required

Fanless whole-unit design; wide-temp quiet operation

Specifications

  • Switching Performance -

    Backplane bandwidth 1Gbps (5 FE copper ports)
    Homegrown controllable IT-innovation Patriot 4000 series 40-port standard 19-inch rack-mount Layer-3 industrial switch: 24 GE/FE auto-sensing copper + 8 GE/FE auto-sensing SFP + 8×1.0/10G auto-sensing SFP+, 1 MGT, 1 CLI, 1 relay. Dual 100~240V inputs. Patriot
    1.6Gbps (8 FE copper ports)
    16Gbps (8 Gigabit copper ports)
    Layer-3 enhanced IP54/IP67 waterproof/dustproof: 12 FE/Gigabit auto-sensing M12 (4 with power-fail bypass). Redundant dual industrial isolated power (110VDC/220VAC).
    Switching Technologystore-and-forward
    MAC address table2K (5 FE/Gigabit copper ports)
    Layer-3 enhanced IP41 fully sealed 1U rack-mount (19-inch capable): 16 FE M12 (PoE/PoE+ with built-in 130W PoE PSU). Industrial isolated power (110VDC/220VAC).
    Layer-3 enhanced IP41 fully sealed 1U rack-mount (19-inch capable): 4 Gigabit 8-pin A-Code M12 + 12 FE 4-pin D-Code M12. Industrial isolated power (110VDC/220VAC).
    packet buffer size570 Kbit (5/8 FE copper ports)
    All-black with Changzheng Centauri software, 40-port standard 19-inch 1U rack-mount TSN Layer-3 industrial switch: 8×1000/2500BaseX SFP (optics not included) + 8×1000/2500/10000BaseX SFP (optics not included) + 24×10/100/1000BaseT. Built-in dual 100-240V industrial PSUs. IP40. Includes mounting brackets, monitoring cable and power cord. With CENTAURI software.
    switching rate148,800 pps/FE port; 1,488,000 pps/GE port

  • Power Parameters +

    Power connection1 removable 5-PIN terminal block
    Input voltage9.6 ~ 60VDC , dual input
    overload current protectionSupports
    reverse polarity protectionSupports
    Power consumption≤7W

  • Physical Characteristics +

    Mounting methodDin-Rail mounting
    housingindustrial resin housing
    protection ratingIP40
    Dimensions (W×H×D)42mm × 110mm × 100mm (±0.3mm)
    Weight< 0.23kg

  • Mechanical Characteristics +

    VibrationIEC 60068-2-6
    ShockIEC 60068-2-27
    free fallIEC 60068-2-31
    PCBCompliant with IPC standards

  • Temperature Characteristics +

    storage temperature-40°C ~ +85°C
    Operating temperature-40°C ~ +75°C
    Humidity5% ~ 95% (non-condensing)

  • Electromagnetic Characteristics +

    EMI radiationFCC 47 CFR Part 15 Class A
    EN55032 Class A
    EN55035 Class A
    EMCIEC(EN)61000-4-2, Level 3
    IEC(EN)61000-4-3, Level 3
    IEC(EN)61000-4-4, power: Level 3, signal: Level 2
    IEC(EN)61000-4-5, power: Level 3, signal: Level 2
    IEC(EN)61000-4-6, Level 3
    IEC(EN)61000-4-8, Level 5

  • Industry Certification & Testing +

    Product SafetyEN 62368-1
    EMCEN 55032
    EN 55035
    EN I EC61000-3-2
    EN 61000-3-3
    FCC Part 15 Subpart B C lass A
    OtherNetwork access license, RoHS

Dimensions

Dimensions

Accessories

ModelProduct Specification
PAT300-A5V0005CSZIngress protection IP40, Operating temperature-40°C ~ +75°C. dual 9.6 ~ 60VDC redundant powerinput. Patriotfully domesticIT-innovationhomegrown controllableunmanagedindustrial switch, 5 Gigabit copper ports, industrial resin housing, DIN-rail mounting.
PAT300-A5V0050CSZIngress protection IP40, Operating temperature-40°C ~ +75°C. dual 9.6 ~ 60VDC redundant powerinput. Patriotfully domesticIT-innovationhomegrown controllableunmanagedindustrial switch, 8 FE copper ports, industrial resin housing, DIN-rail mounting.
PAT300-A8V0008CSZIngress protection IP40, Operating temperature-40°C ~ +75°C. dual 9.6 ~ 60VDC redundant powerinput. Patriotfully domesticIT-innovationhomegrown controllableunmanagedindustrial switch, 8 Gigabit copper ports, industrial resin housing, DIN-rail mounting.
PAT300-A8V0080CSZIngress protection IP40, Operating temperature-40°C ~ +75°C. dual 9.6 ~ 60VDC redundant powerinput. Patriot
PAT300-A5V1040CSZfully domesticIT-innovationhomegrown controllableunmanagedindustrial switch, 1 Gigabit optical ports+4 Gigabit copper ports, industrial resin housing, DIN-rail mounting. Ingress protection IP40, Operating temperature-40°C ~ +75°C. dual 9.6 ~ 60VDCredundant powerinput. Patriot
PAT300-A10V2080CSZfully domesticIT-innovationhomegrown controllableunmanagedindustrial switch, 2 Gigabit optical ports+8 Gigabit copper ports, industrial resin housing, DIN-rail mounting. Ingress protection IP40, Operating temperature-40°C ~ +75°C. dual 9.6 ~ 60VDCredundant powerinput.
