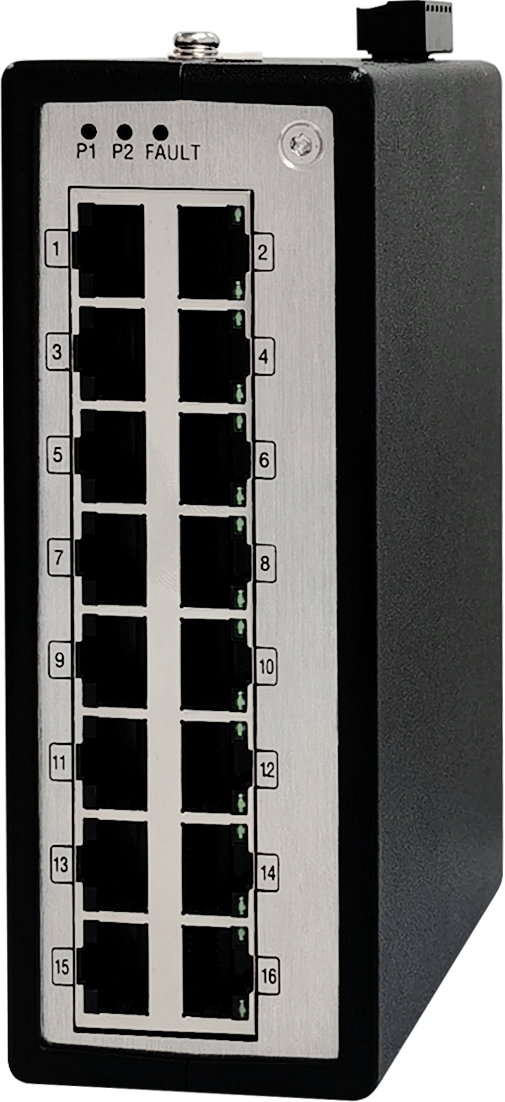

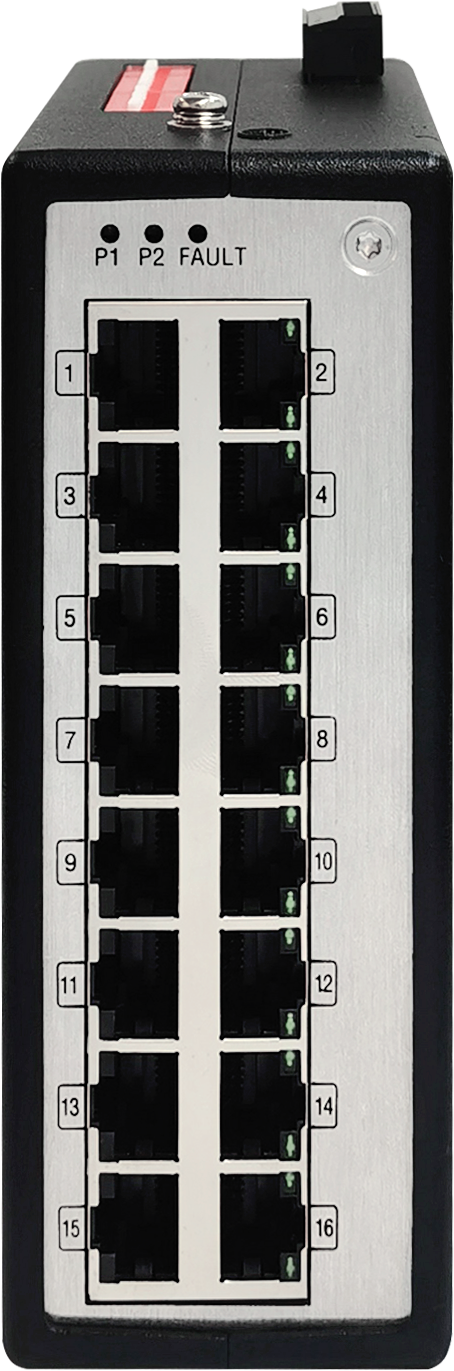

The MTX140 series industrial switch supports up to 16 FE copper + 2 GE/FE auto-sensing Combo ports for simple industrial Ethernet. Top-panel DIP switches enable/disable QoS and BSP (broadcast storm protection) for greater versatility. Die-cast aluminum housing with optional fiber (SFP).

MTX140 series uses redundant 12/24/48 VDC and 24VAC inputs with DIN-rail mounting and high-level EMC tests. Compact size with 100% burn-in testing for reliable operation.

Certifications

Contact

FAQ

The cable is connected, but the port will not come UP / the link is down. What should I check?
+

1) Confirm an industrial-grade cable and proper RJ45 crimping. 2) Check speed/duplex settings; set both ends to auto-negotiation. 3) Check whether the port is administratively shut down, in the wrong VLAN, or restricted by port security.
What are the PoE power specifications?
+

Standard PoE and PoE+ are supported, with max per-port power of 15.4 W and 30 W respectively. Total system power budget must be calculated during selection to avoid insufficient supply when too many PDs are connected.
Which ring protocols are supported, and what is the self-healing time?
+

Mainstream industrial ring protocols such as ERPS (G.8032), RSTP/STP, MRP, and PRP are supported. ERPS typical self-healing is ≤50 ms; traditional RSTP is second-level. It is recommended to use one ring protocol consistently across the network.
How should I choose between Layer-2 and Layer-3 industrial switches?
+

Layer-2 switches: basic features such as VLAN, ring networks, and port mirroring; suited to access layers and same-subnet networking with strong cost performance. Layer-3 switches: add static routing, OSPF, DHCP relay, multicast, and other routing features—choose these when cross-subnet communication or core/aggregation networks are required.
Can non-OEM SFP optical modules work normally?
+

The device is compatible with generic IEEE 802.3 SFP modules. Non-OEM modules can usually be recognized, but some brands may have compatibility issues. OEM modules are recommended.
How do I restore factory settings if I forget the device login password?
+

1) Hardware reset: press and hold the RESET button for 5–10 seconds; the device reboots to factory defaults. 2) Software reset: use the vendor NMS to restore factory settings remotely. All custom configurations will be cleared after restore.
What are the power supply requirements for industrial switches?
+

DC models support 18–60 VDC or 9.6–60 VDC; AC models support 100–240 VAC, with dual redundant power inputs. Phoenix terminal wiring; reverse-polarity protection is built in so normal reverse connection will not damage the device.
What are the operating temperature range and protection rating of industrial switches?
+

All-metal aluminum alloy housing. Operating temperature is -40°C to +75°C; premium wide-temperature models reach -40°C to +85°C. Typical enclosure rating is IP40.

Features

Industrial-grade chipset

Compact and easy to install

SupportsQoS (IEEE 802. 1P/1Q and TOS/DiffServ)

die-cast aluminum alloy housing

IP30Ingress protection or IP40Ingress protection

Redundant dual power input design

Fanless; operating temperature -40°C to +75°C or -10°C to +60°C

Specifications

Switching Performance -
Switching Technology store-and-forward
Backplane bandwidth 8.8 Gbps (max)
MAC address table 8K (max)
packet buffer 4 Mb (max)

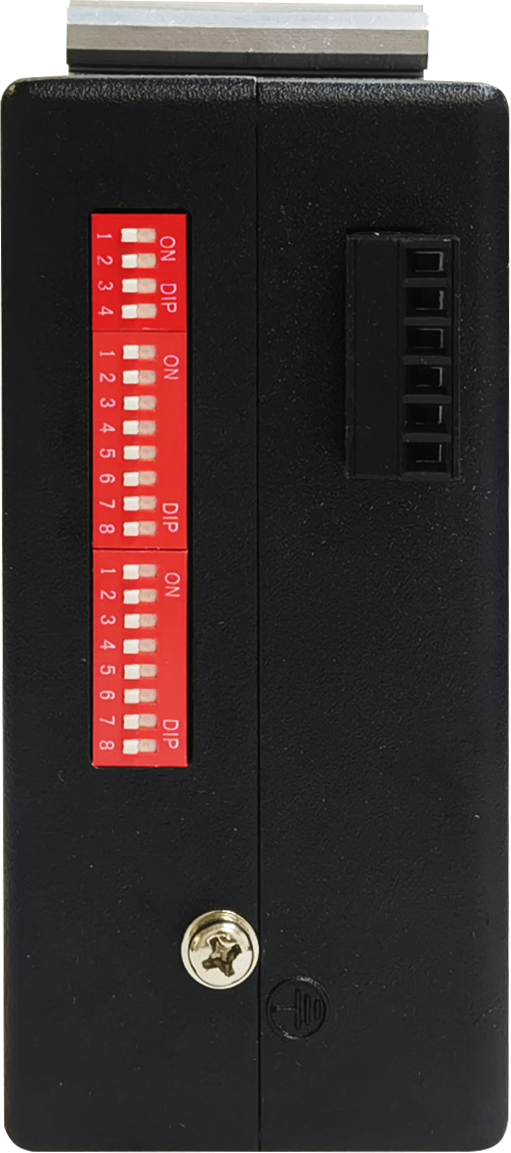

DIP switch configuration+
DIP switch functions QoS (Quality of Service), BSP (broadcast storm protection), power alarm, port alarm, alarm buzzer

Power Parameters +

connection	1 removable 6-PIN terminal block
Input voltage	12/24/48 VDC & 24 VAC, redundant dual input
Operating voltage	9.6~60 VDC & 18~30 VAC
overload current protection	Supports
reverse polarity protection	Supports
Power consumption	<10W

Physical Characteristics +

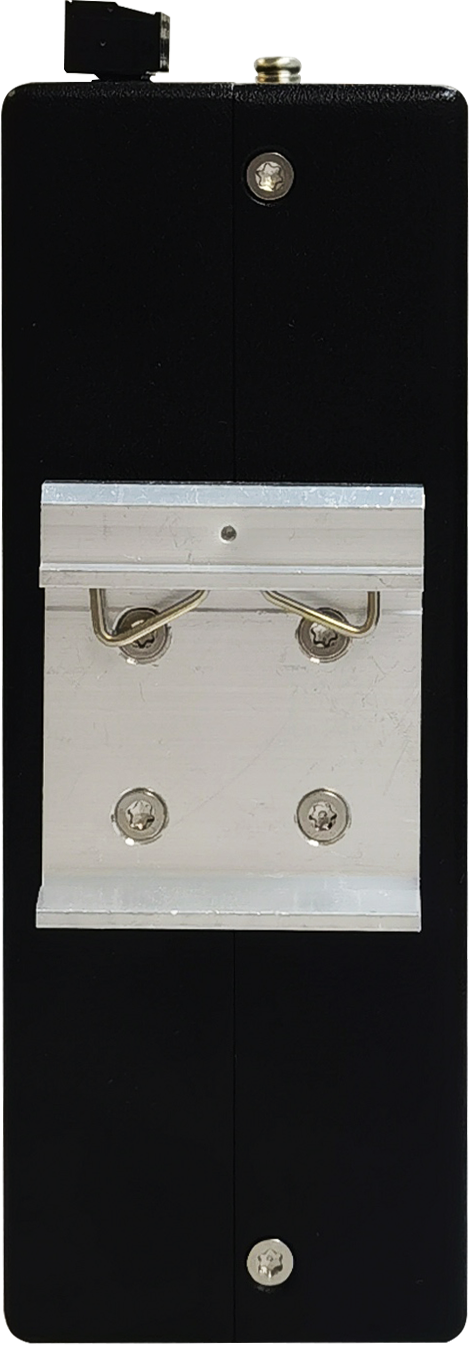

Mounting method	Din-Rail mounting
housing	die-cast aluminum alloy housing
protection rating	IP30 or IP40
Dimensions (W×H×D)	MTX140-A10R/A16R： 52mm x 140mm x 110mm MTX140-A18R： 72mm x 140mm x 110mm
Weight	MTX140-A10R/16R： <1 kg MTX140-A18R： <1.2 kg

Environmental Characteristics +
Humidity 5% ~ 95% (non-condensing)
operating temperature -40°C~75°C (IP30) or -10°C~60°C (IP40)
storage temperature ‐40°C~ 85°C
Mechanical Characteristics +
Vibration IEC 60068-2-6
Shock IEC 60068-2-27
free fall IEC 60068-2-31
PCB Compliant with IPC standards

Electromagnetic Characteristics +

EMI	FCC Part 15 Subpart B Class A EN 55032 Class A EN 55035 Class A
EMS	IEC(EN)61000-4-2, Level 3 IEC(EN)61000-4-3, Level 3 IEC(EN)61000-4-4, Level 3 IEC(EN)61000-4-5, Level 3 IEC(EN)61000-4-6, Level 3 IEC(EN)61000-4-8, Level 5 IEC(EN)61000-4-18, Level 3

Industry Certification & Testing +
Product Safety EN/IEC62368-1
UL/cUL61010
EMC EN55032
EN55024
EN61000-3-2
EN61000-3-3
EN61000-6-2
EN61000-6-4
FCC Part 15 Subpart B Class A

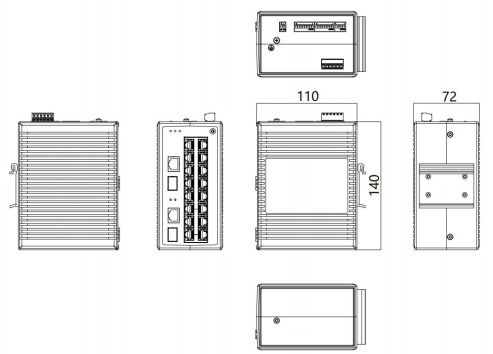

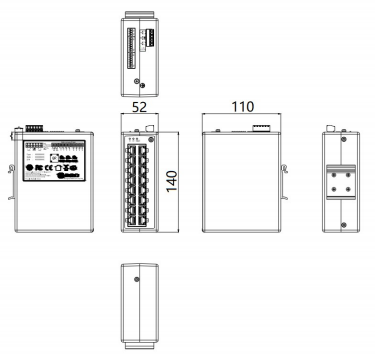

Dimensions

Accessories

Model	Product Specification
MTX140-A16R000G	MTX140seriesindustrial switch
MTX140-A18R200G	MTX140 series industrial switch description
MTX140-A10R2008	MTX140 10-port DIN-rail unmanaged industrial switch, die-cast aluminum housing: 8 FE copper + 2 GE/FE auto-sensing Combo; DIP audible/visual alarm and 1 relay alarm (1A@24VDC). IP30; operating temperature -40°C ~ +75°C. Redundant 12/24/48VDC (9.6~60VDC) and 24VAC (18~30VAC) input (Class 2 only).
MTX140-A16R000G	MTX140 16-port unmanaged industrial switch, die-cast aluminum housing. 16 FE copper. DIP audible/visual alarm and 1 relay alarm (1A@24VDC). IP30; operating temperature -40°C ~ +75°C. Redundant 12/24/48 VDC (9.6~60 VDC) & 24VAC (18~30 VAC) input (Class 2 only).
MTX140-A16R000GL	MTX140 16-port unmanaged industrial switch, die-cast aluminum housing. 16 FE copper. DIP audible/visual alarm and 1 relay alarm (1A@24VDC). IP40; operating temperature -10°C ~ +60°C. Redundant 12/24/48 VDC (9.6~60 VDC) & 24VAC (18~30 VAC) input (Class 2 only).
MTX140-A18R200G	MTX140 18-port DIN-rail unmanaged industrial switch, die-cast aluminum housing: 16 FE copper + 2 GE/FE auto-sensing Combo; DIP audible/visual alarm and 1 relay alarm (1A@24VDC). IP30; operating temperature -40°C ~ +75°C. Redundant 12/24/48VDC (9.6~60VDC) and 24VAC (18~30VAC) input (Class 2 only).
