Backplane bandwidth 12.8 Gbps; fixed optical ports SC/FC/ST; management via CLI, WEB, SNMP
Supports multiple multicast protocols with strong security
Supports port-based VLAN, IEEE 802.1Q VLAN and GVRP
Supports SNMPv1/v2c/v3

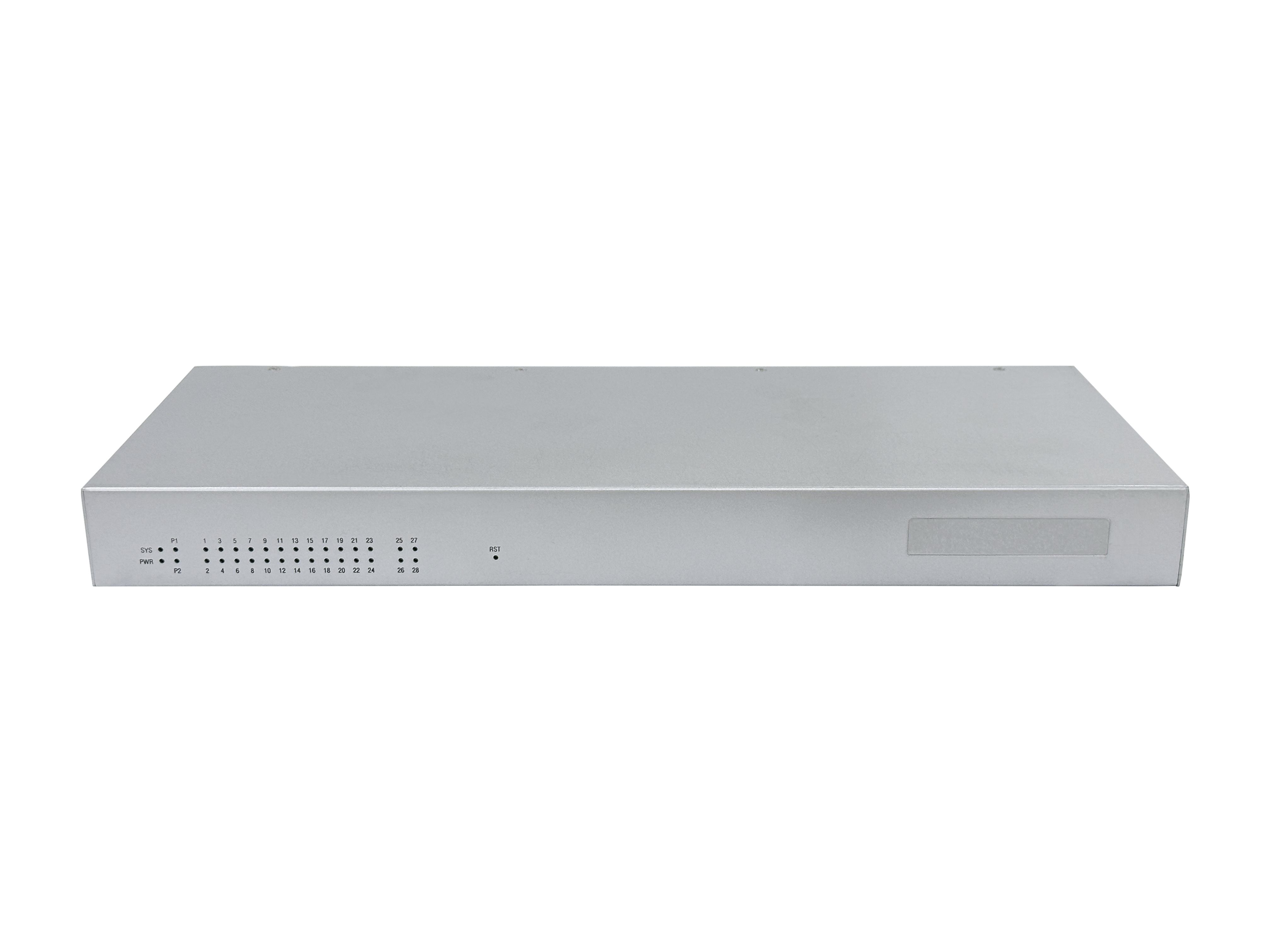

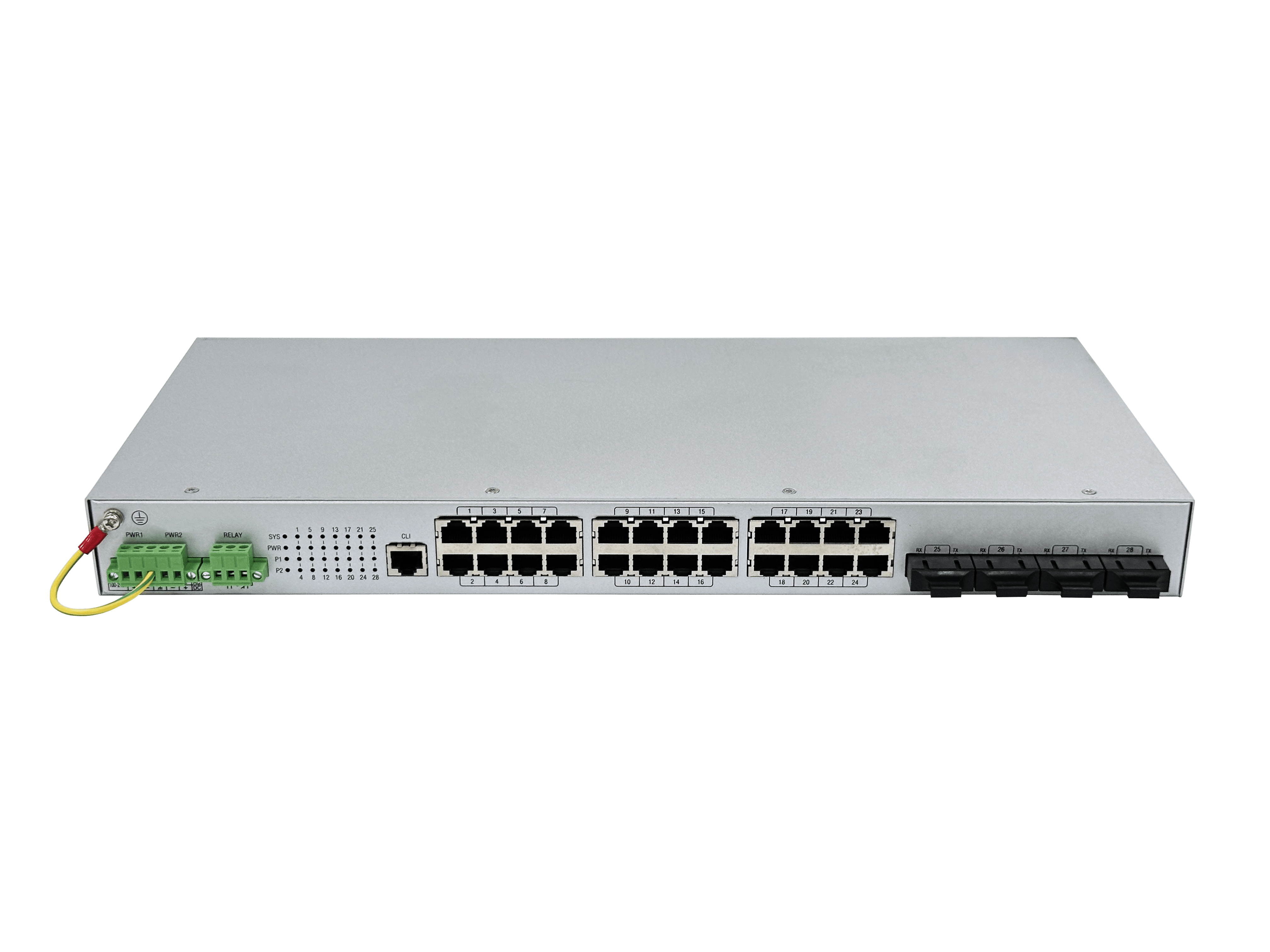

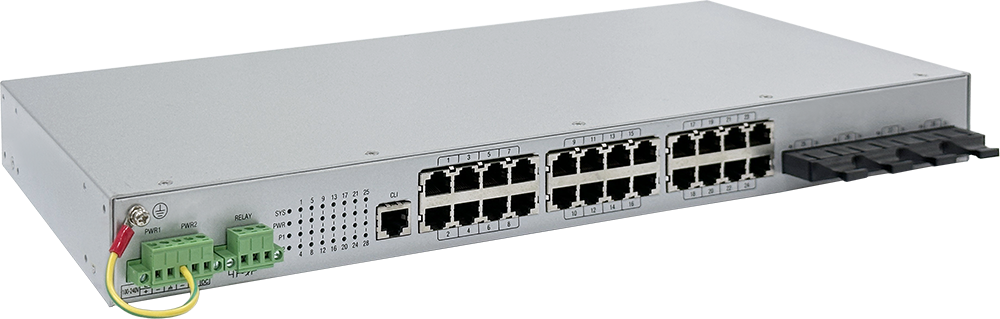

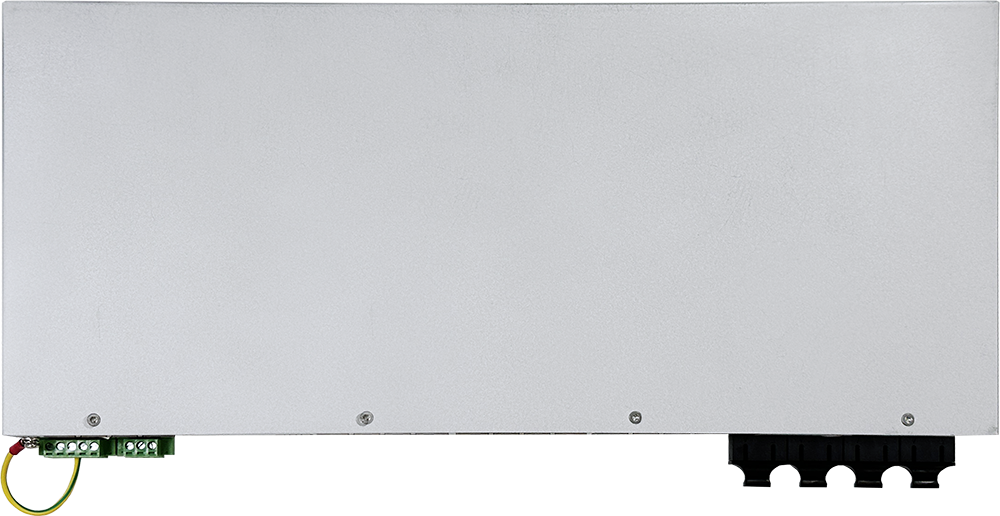

TNM4000
cybersecurity power-industry switch
TNM4000
The SRS2000 series rack-mount Layer-2 managed industrial switch uses redundant dual inputs of 100~240VDC/VAC and 48~54VDC (PoE models), rack mounting; PoE models deliver up to 30W per PoE port. Rugged aluminum alloy housing, IP40, high-level EMI/EMC tests and strict burn-in meet industry stability/durability standards.
TNM4000
The cybersecurity power-industry switch supports 24 FE copper / 24 FE copper + 2 fixed FE optics / 24 FE copper + 4 fixed FE optics, suitable for large industrial networks.
TNM4000
The cybersecurity power-industry switch supports management features such as IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS and port mirroring.
TNM4000
The cybersecurity power-industry switch is fanless with redundant dual power inputs and supports redundant rings and RSTP/STP to improve system reliability and backbone availability.
The cable is connected, but the port will not come UP / the link is down. What should I check?
+What are the PoE power specifications?
+Which ring protocols are supported, and what is the self-healing time?
+How should I choose between Layer-2 and Layer-3 industrial switches?
+Can non-OEM SFP optical modules work normally?
+How do I restore factory settings if I forget the device login password?
+What are the power supply requirements for industrial switches?
+What are the operating temperature range and protection rating of industrial switches?
+High-performance, flexibly configurable Layer-2 wire-speed switch
Backplane 12.8 Gbps; fixed optics SC/FC/ST; management via CLI, WEB and SNMP
Provides packet-loss protection and fast recovery from network faults
Supports multiple multicast protocols with strong security
Supportsport-based VLAN, IEEE 802.1 Q VLAN and GVRP
SupportsQoS
SupportsSNMPv1/v2c/v3
SupportsRMON
Supports bandwidth management
Supportsport mirroring
Supports network storm control
Redundant dual power input design
Fanless, -40oC to +85oCoperating temperatureTNM4000cybersecurity power-industry switch
IEEE 802.3 CSMA/CD method and physical Layer specifications CSMA/CD method and physical layer specifications
IEEE 802.1p Priority Queuing Priority Queuing
IEEE 802.1q VLAN tagging VLAN Tagging
IEEE 802.1d Spanning Tree Algorithm Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Multiple Spanning Tree Protocol
IEEE 802.3ac VLAN Tagging VLAN Tagging
IEEE 802.1x Authentication Authentication
IEEE 802.3ad Link Aggregation Link Aggregation
IEEE 802.3x Flow Control Flow Control
IEEE 802.3 Ethernet Ethernet
IEEE 802.3u Fast Ethernet Fast Ethernet
IEEE 802.3z Gigabit Ethernet Gigabit Ethernet
IEEE 802 Networks Networks
RFC 768 UDP User Datagram Protocol
RFC 791 IP Internet Protocol
RFC 792 ICMP Internet Control Message Protocol
RFC 793 TCP Transmission Control Protocol
RFC 826 ARP Address Resolution Protocol
RFC 854 Telnet Client & Server Telnet Client & Server
RFC 862 Echo Protocol Echo Protocol
RFC 863 Discard Protocol Discard Protocol
RFC 1027 Using ARP to Implement Transparent Subnet Gateways Proxy ARP
RFC 1059, 1119 NTPv1/2 Network Time Protocol v1 and v2
RFC 1112 IGMP Host Extensions for IP Multicasting
RFC 1191 Path MTU Discovery Path MTU Discovery
RFC 1542 Bootstrap Extensions & DHCP DHCP relay agent
RFC 1851 The ESP Triple DES Transform ESP Triple DES Transform
RFC 1994 PPP Challenge Handshake Authentica-tion Protocol (CHAP) Challenge Handshake Authentication Protocol
RFC 2068 HTTP Hypertext Transfer Protocol
RFC 213 DHCP Server DHCP Server
RFC 2138 RADIUS Remote Authentication Dial-In User Service
RFC 2139 RADIUS Accounting RADIUS Accounting
RFC 2236 IGMPv2 IGMPv2
RFC 2474 DiffServ Precedence
RFC 2597 DiffServ Assured Forwarding
RFC 2598 DiffServ Expedited Forwarding
RFC 2644 Directed Broadcasts Directed Broadcasts
RFC 2865 Remote Authentication Dial in User Ser-vice (RADIUS) Remote Authentication Dial-In User Service
RFC 3046 DHCP Relay Agent Information Option DHCP Relay Agent Information Option
RFC 3222 Forwarding Information Base (FIB) Forwarding Information Base
GMRP GARP Multicast Registration Protocol
GVRP GARP VLAN Registration Protocol
SSH2 Secure Shell 2
IGMP snooping IGMP snooping
SNMPv3 SNMPv3
TNM4000
cybersecurity power-industry switch
| Management Methods | Browser, STD-17MIB-II, STD-58SMIv2, STD-59RMON, STD-62SNMPv3, SNMPv2c, SNMPv1, RFC2668MAU, RFC2925PingMIB, SSH, HTTPS, |
| Telnet diagnostics | LEDs, log files, RMON, port mirroring, |
| TRAP redundancy | STP，RSTP，MSTP， |
| Link aggregation Others | 4KVLANS, IPv4/IPv6multicast, storm control, |
| Supports Jumbo Frame time synchronization | NTP |
| D） | 440mm ×43.8mm × |
| 200mm Ingress protection | IP40 |
| Terminal block | 1 removable 5- |
| Terminal-block input voltage | 100-240V， |
| Supports reverse-polarity protection | Supports |
| 4M switching rate | 148,800 pps/FE port; 1,488,000 pps/GE port12.8Gbps |
| Vibration | IEC60068-2- 6 |
| Shock | IEC60068-2- 27 |
| free fall | IEC60068-2- 31 |
| PCB | Compliant with IPC standards TNM4000 cybersecurity power-industry switch |
| EMI radiation | FCC47CFRPart15ClassAEN55032Cla |
| Layer-3 enhanced IP54/IP67 waterproof/dustproof: 12 FE/Gigabit auto-sensing M12 (4 with power-fail bypass). Industrial isolated power (110VDC/220VAC). | IEC(EN)61000-4-2，Level 4IEC(EN)61000-4-3，Level 3IEC(EN)61000-4-4，Level 4IEC(EN)61000-4-5，Level 4IEC(EN)61000-4-6，Level 3IEC(EN)61000-4-9，Level 5 |
| Product Safety | CE.CB.IEC.IECEEIEC/EN62368-1FCCPart15SubpartBClass AIEC60825- 1 |
| hazardous area | UL/cUL160 |
| FE multi-mode SFP (850nm), LC, max 2 km; MRD-SFP-GSX FE multi-mode SFP (1310nm), LC, max 2 km | JT/T817-2011；NEMA- |
| TS2 (certification in progress) rail industry | EN50121- 4 |
| power industry | IEC61850-3IEEE1613（C37.90. |
| x) industrial control industry | UL/ |
| cUL61010 (certification in progress) shipbuilding industry | GL (certification in progress) |
| storage temperature | -40℃~85℃ |
| operating temperature | -40℃~85℃ |
| Humidity | 5%~95%, non-condensing TNM4000 cybersecurity power-industry switch |
| Model | Product Specification |
| TNM4000 | The TNM4000 general-purpose managed rack-mount industrial switch is designed for harsh-environment networks, configurable with 20×10/100/1000BaseT + 4×100/1000Base(X/T) COMBO + 8×100/1000BaseX SFP + 4×100/1000/2500/10000BaseX SFP, supporting multi-rate fiber and copper for high-speed data, especially high-bandwidth large industrial networks. |
| HH100-240V | Input: industrial isolated PSU, redundant input. K: port type/quantity; K1 FE optical count (00,02,04); K2 FE copper count (24); Y: optics S=single-mode M=multi-mode; P: power-industry dedicated; ZZ: fiber connector SC/FC/ST |
| TNM4000 | Cybersecurity power-industry switch models: TNM4000-PHH0024S rack-mount 24-port 1U Layer-2 cybersecurity power switch, 24 FE copper, 1 CLI, 1 relay, dual 100-240V inputs. TNM4000-PHH0224S-Y-ZZ rack-mount 26-port 1U Layer-2, 24 FE copper + 2 fixed FE optics (SM/MM, SC/FC/ST), 1 CLI, 1 relay, dual 100-240V. TNM4000-PHH0424S-Y-ZZ rack-mount 28-port 1U Layer-2, 24 FE copper + 4 fixed FE optics (SM/MM, SC/FC/ST), 1 CLI, 1 relay, dual 100-240V. |
