Backplane bandwidth 56 Gbps
Wire-speed forwarding and auto MDI/MDI-X on all ports; long-distance transmission supported
Supports IEEE 802.3af/at PoE
IP40 protection rating

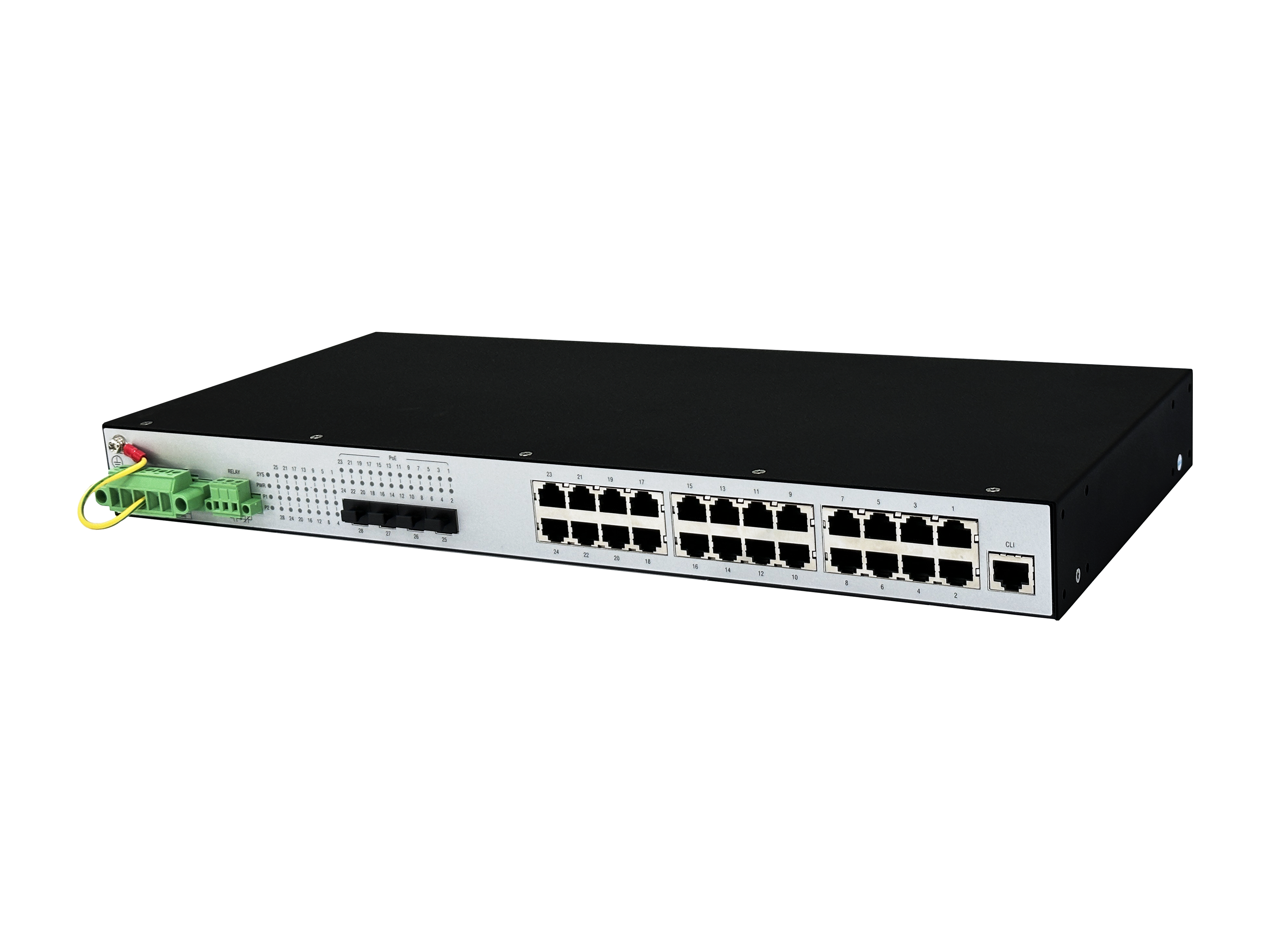

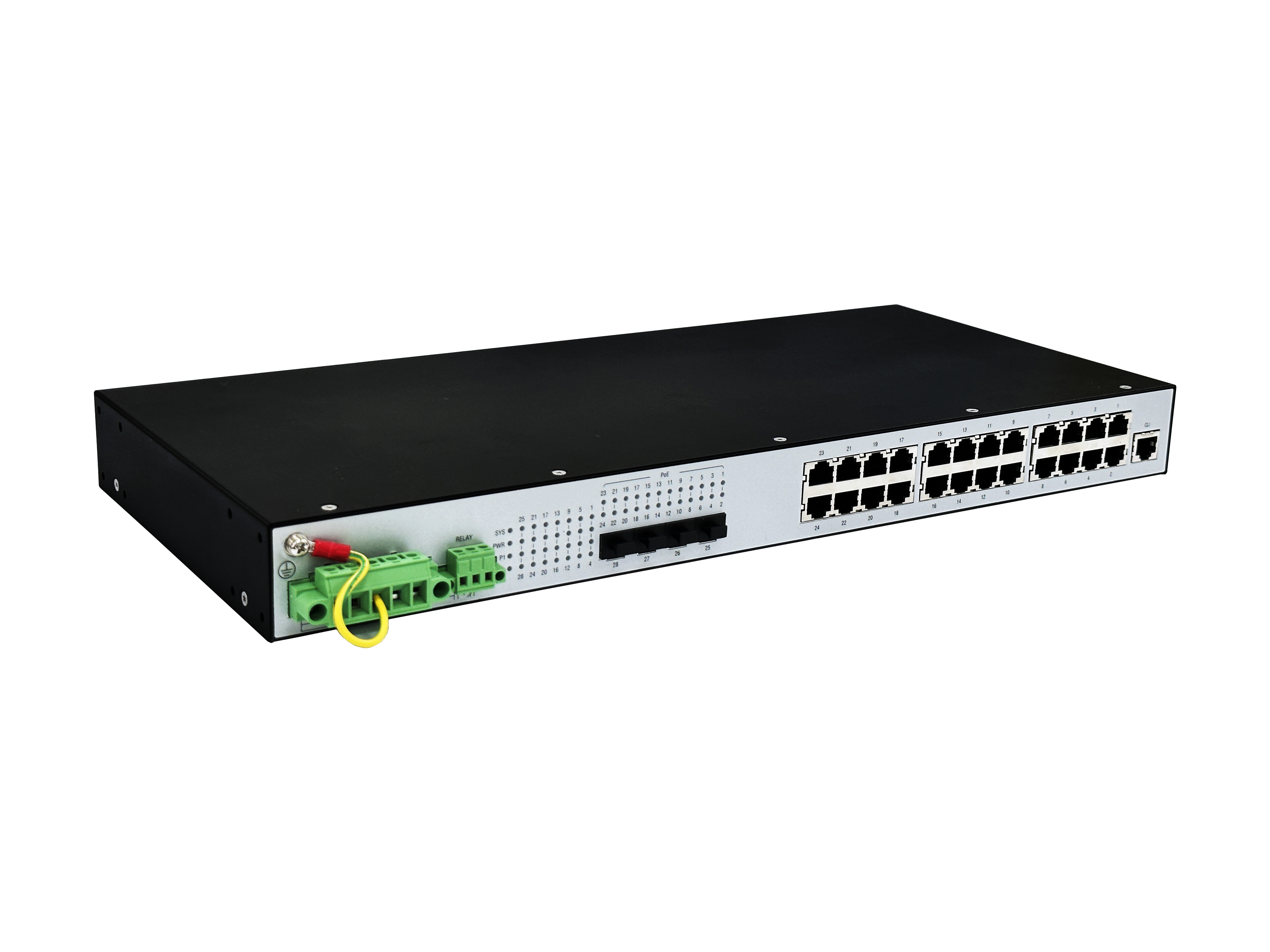

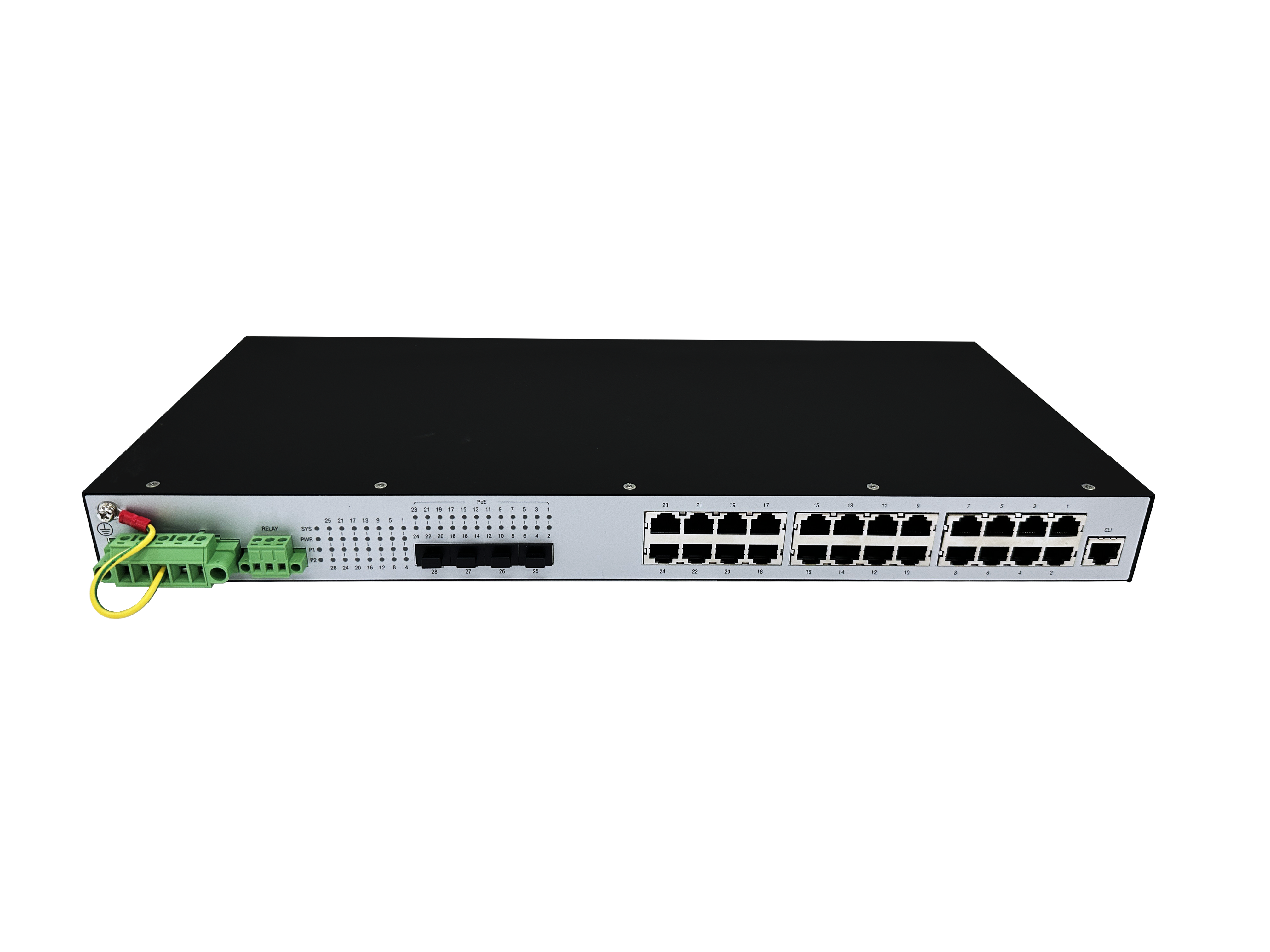

SRS2000 series rack-mount Layer-2 managed industrial switch
The SRS2000 series rack-mount Layer-2 managed industrial switch supports 4 GE/FE SFP + 24 PoE Gigabit copper, and 4 GE/FE SFP + 24 Gigabit copper, for harsh industrial environments as a cost-effective solution. Operating temperature -40°C~ +75°C.
The SRS2000 series rack-mount Layer-2 managed industrial switch uses redundant dual inputs of 100~240VDC/VAC and 48~54VDC (PoE models), rack mounting; PoE models deliver up to 30W per PoE port. Rugged aluminum alloy housing, IP40, high-level EMI/EMC tests and strict burn-in meet industry stability/durability standards.
The cable is connected, but the port will not come UP / the link is down. What should I check?
+What are the PoE power specifications?
+Which ring protocols are supported, and what is the self-healing time?
+How should I choose between Layer-2 and Layer-3 industrial switches?
+Can non-OEM SFP optical modules work normally?
+How do I restore factory settings if I forget the device login password?
+What are the power supply requirements for industrial switches?
+What are the operating temperature range and protection rating of industrial switches?
+All Gigabit ports
Backplane bandwidth 56 Gbps
Wide and diverse power ranges and types
Rust-free aluminum alloy housing with hex socket screws
Supports network management
The TCC4100 series uses CPLD dynamic reconfiguration and reprogramming for high stability/reliability with local/remote monitoring of key parameters. Unique extended industrial-grade design suits harsh and field environments.
Supports one-click factory reset and reboot
Supports configuration file upload/download
Supports IEEE 802.3af/at PoE
The PAT300 series fully domestic homegrown controllable unmanaged industrial switch uses 9.6~60VDC and 18~30VAC redundant dual inputs with DIN-rail mounting. Rugged aluminum alloy housing, IP40, strong mechanical shock and EMI immunity, high-level EMI/EMC tests, and strict burn-in meet security-industry and related industrial standards.
Surge protection level : power±4KV , Ethernet ports±4KV
IP40 Ingress protection
Compact and easy to install; plug-and-play, no configuration required
Fanless whole-unit design; wide-temp quiet operation
MTBF ≥ 300,000h
Industrial Ethernet Switch
IEEE 802.3 CSMA/CD Method and Physical Layer Specifications CSMA/CD method and physical layer specifications
IEEE 802.1p Priority Queuing Priority Queuing
IEEE 802.1q VLAN Tagging VLAN Tagging
IEEE 802.1d Spanning Tree Algorithm Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Multiple Spanning Tree Protocol
IEEE 802.1x Authentication Authentication
IEEE 802.3ac VLAN Tagging VLAN Tagging
IEEE 802.3ad Link Aggregation Link Aggregation
IEEE 802.3af/at PoE
IEEE 802.3x Flow Control Flow Control
IEEE 802.3 Ethernet Ethernet
IEEE 802.3u Fast Ethernet Fast Ethernet
IEEE 802.3z Gigabit Ethernet Gigabit Ethernet
IEEE 802 Networks Networks
IEEE 1166 Internet Numbers Internet Numbers
RFC 768 UDP User Datagram Protocol
RFC 791 IP Internet Protocol
RFC792 ICMP Internet Control Message Protocol
RFC 793 TCP Transmission Control Protocol
RFC 826 ARP Address Resolution Protocol
RFC 854 Telnet Client & Server Telnet Client & Server
RFC 862 Echo Protocol Echo Protocol
RFC 863 Discard Protocol Discard Protocol
RFC 1027 Using ARP to Implement Transparent Subnet Gateways Proxy ARP
RFC 1059,1119 NTPv1/2 Network Time Protocol v1 and v2
RFC 1112 IGMP Host Extensions for IP Multicasting
RFC 1191 Path MTU Discovery Path MTU Discovery
RFC 1542 Bootstrap Extensions & DHCP DHCP relay agent
RFC 1851 The ESP Triple DES Transform ESP Triple DES Transform
RFC 1866 HTML HTML
RFC 1994 PPP Challenge Handshake Authentication Protocol (CHAP) Challenge Handshake Authentication Protocol
RFC 2068 HTTP Hypertext Transfer Protocol
RFC 213 DHCP Server DHCP Server
RFC 2138 RADIUS Remote Authentication Dial-In User Service
RFC 2139 RADIUS Accounting RADIUS Accounting
RFC 2236 IGMPv2 IGMPv2
RFC 2474 DiffServ Precedence
RFC 2475 DiffServ Core and Edge Router Functions
RFC 2597 DiffServ Assured Forwarding
RFC 2598 DiffServ Expedited Forwarding
RFC 2644 Directed Broadcasts Directed Broadcasts
RFC 2865 Remote Authentication Dial User Service (RADIUS) Remote Authentication Dial-In User Service
RFC 3046 DHCP Relay Agent Information Option DHCP Relay Agent Information Option
RFC 3222 Forwarding Information Base (FIB) Forwarding Information Base
GMRP GARP Multicast Registration Protocol
GVRP GARP VLAN Registration Protocol
SSH2 Secure Shell 2
IGMP Snooping IGMP snooping
SNMPv3 Simple Network Management Protocol v3
| Backplane bandwidth | 56Gbps |
| Switching technology | store-and-forward |
| MAC address table | 8K |
| Packet buffer size | 4.1Mbits |
| Switching rate | 148,800 pps/FE port; 1,488,000 pps/GE port |
| Management Methods | Browser, Console, Telnet, SSH 2.0, Syslog, STD-62 SNMPv3, SNMPv1, SNMPv2, FTP/TFTP |
| Diagnostics | LEDs, log files, relay, port mirroring, TRAP |
| Redundancy | RSTP , STP , MSTP , link aggregation |
| time synchronization | NTP |
| Other | 4K VLANS , IPv4/IPv6 Multicast , storm control , Supports Jumbo Frame |
| Power connection | 1 removable 5-PIN terminal block |
| Input voltage | 100-240VAC(50-60Hz)/ 100-240VDC , redundant dual input 48-54VDC , redundant dual input |
| overload current protection | Supports |
| reverse polarity protection | Supports |
| Power consumption | The PAT4000 series homegrown controllable IT-innovation Patriot Layer-3 mining industrial switch is designed for high-intensity, high-reliability mining networks, supporting 24 Gigabit copper + 8 GE/FE auto-sensing SFP + 8×10G/1G auto-sensing SFP with flexible media/bandwidth options for underground, open-pit and dispatch-center industrial environments. |
| Mounting method | rack mounting |
| housing | aluminum alloy housing |
| protection rating | IP40 |

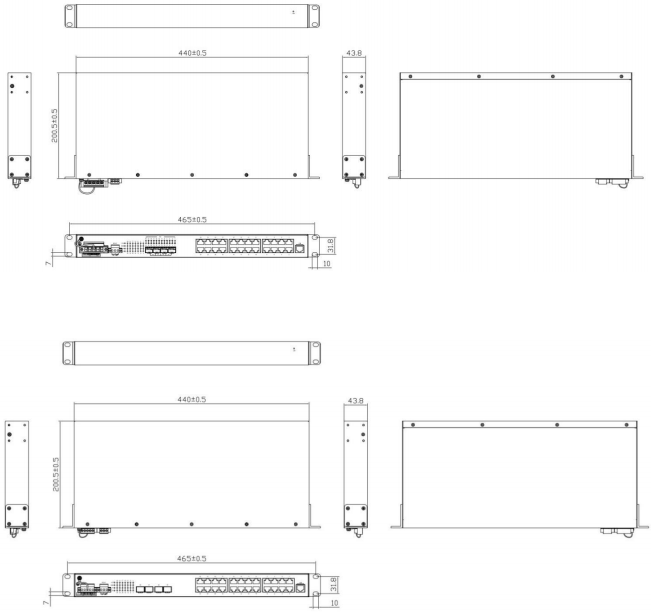

| Dimensions (W×H×D) | 440mm × 43.8mm × 200mm |
| Weight | 1.7kg |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| free fall | IEC 60068-2-31 |
| PCB | Compliant with IPC standards Temperature Characteristics |
| storage temperature | -40°C ~ +85°C |
| Operating temperature | -40°C ~ +75°C |
| Humidity | 5% ~ 95% (non-condensing) |
| EMI radiation | FCC 47 CFR Part 15 Class A EN55032 Class A EN55035 Class A |
| EMC | IEC(EN)61000-4-2, Level 4 IEC(EN)61000-4-4, Level 4 IEC(EN)61000-4-5, Level 4 IEC(EN)61000-4-6, Level 3 IEC(EN)61000-4-8, Level 5 |
| Product Safety | EN 62368-1 |
| EMC | EN 55032 EN 55035 EN I EC61000-3-2 EN 61000-3-3 FCC Part 15 Subpart B C lass A |
| Other | BiDi Gigabit single-mode SFP (1550nm Tx/1310nm Rx), LC, max 40 km. TNM4000 backbone industrial switch optional accessories (continued). SFP/XFP port module description |
| Model | Product Specification |
| SRS2000-SB28PP4G24TP | Full aluminum alloy all-black with Centauri software, 28-port Layer-2 managed industrial switch: 4×100/1000BaseX SFP + 24×10/100/1000BaseT PoE, rack-mount. IP40; operating temperature -40°C ~ +75°C. 48~54VDC redundant dual isolated power. Includes power cord and mounting brackets. |
| SRS2000-SB28HH4G24TT | Full aluminum alloy all-black with Centauri software, 28-port Layer-2 managed industrial switch: 4×100/1000BaseX SFP + 24×10/100/1000BaseT, rack-mount. IP40; operating temperature -40°C ~ +75°C. 100~240V redundant dual isolated power. Includes power cord and mounting brackets. |
