Supports multiple redundant rings; any two ports can form a self-healing ring; multiple independent rings supported
Supports QoS (IEEE 802.1P/1Q and TOS/DiffServ)
Supports CLI, Telnet, Web management and SNMPv1/v2c/v3 NMS
IP40 protection rating

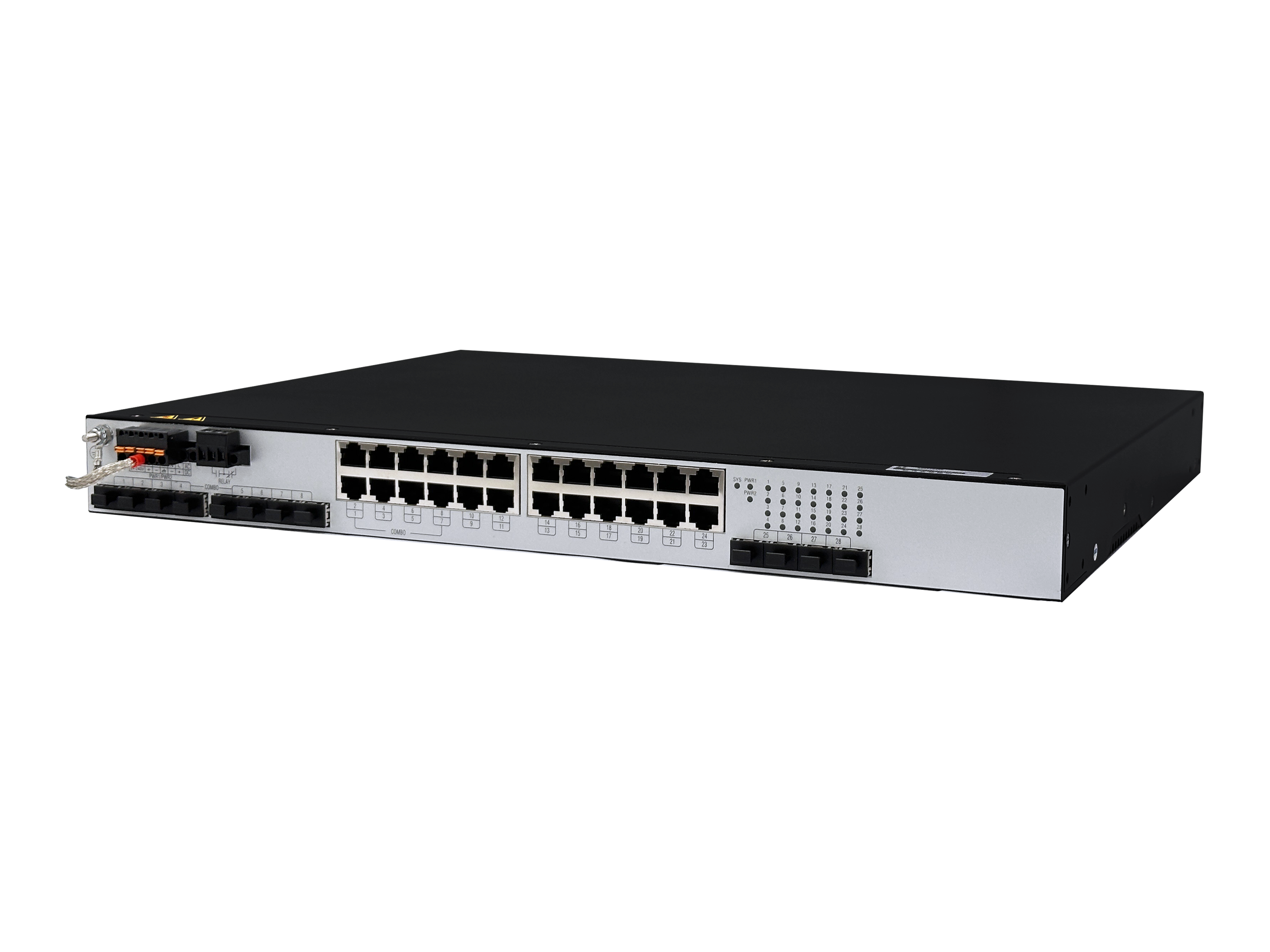

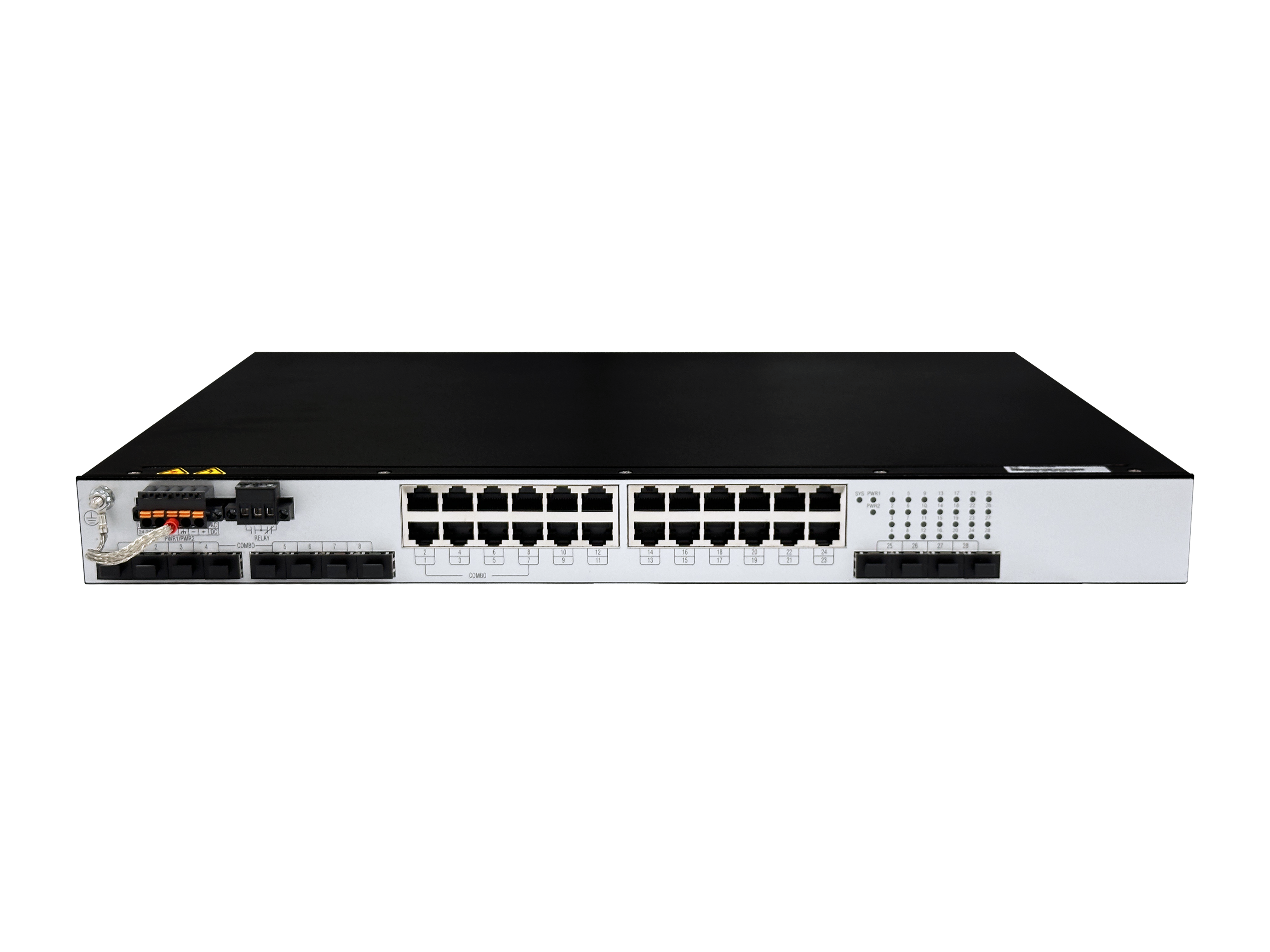

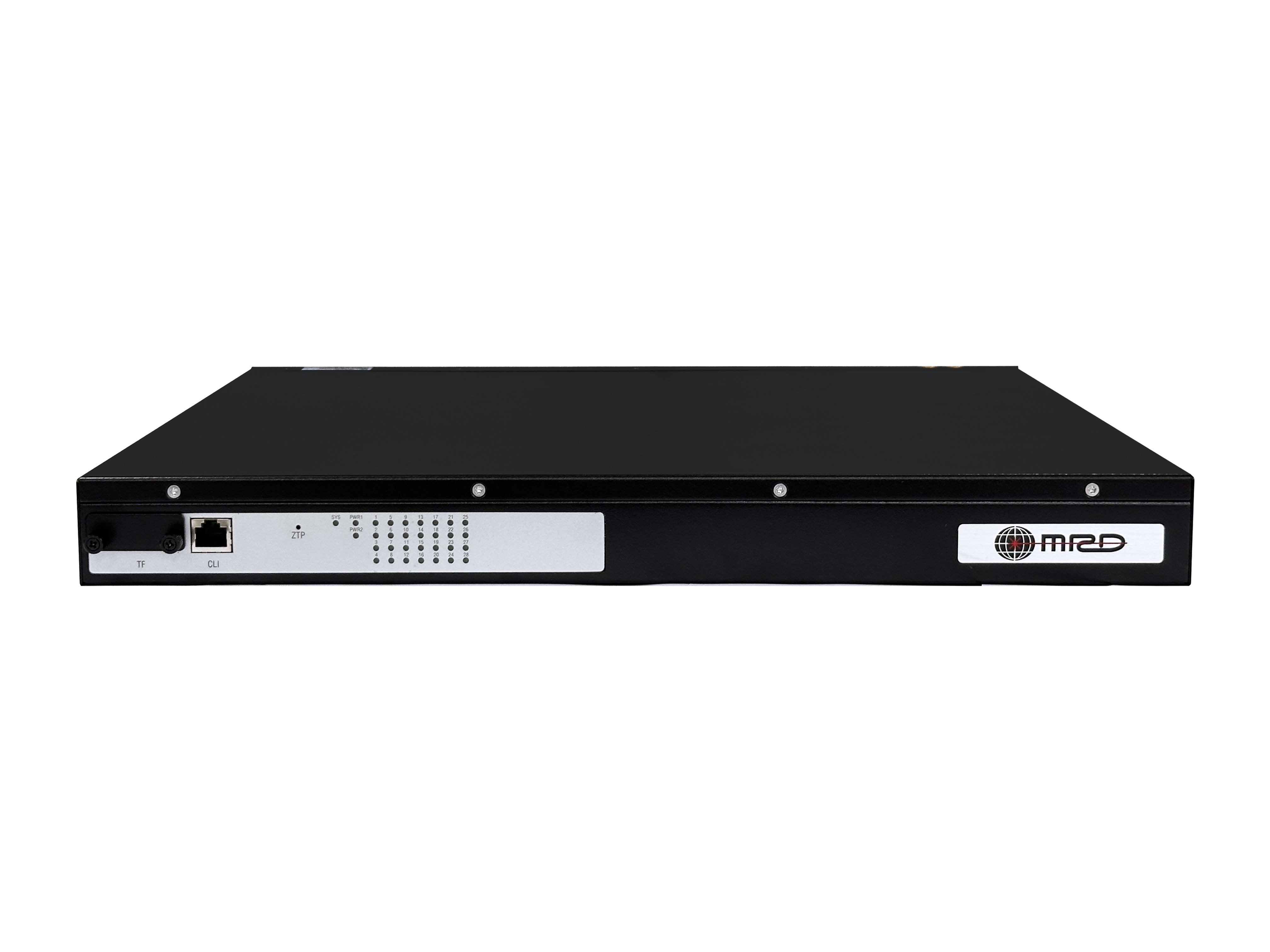

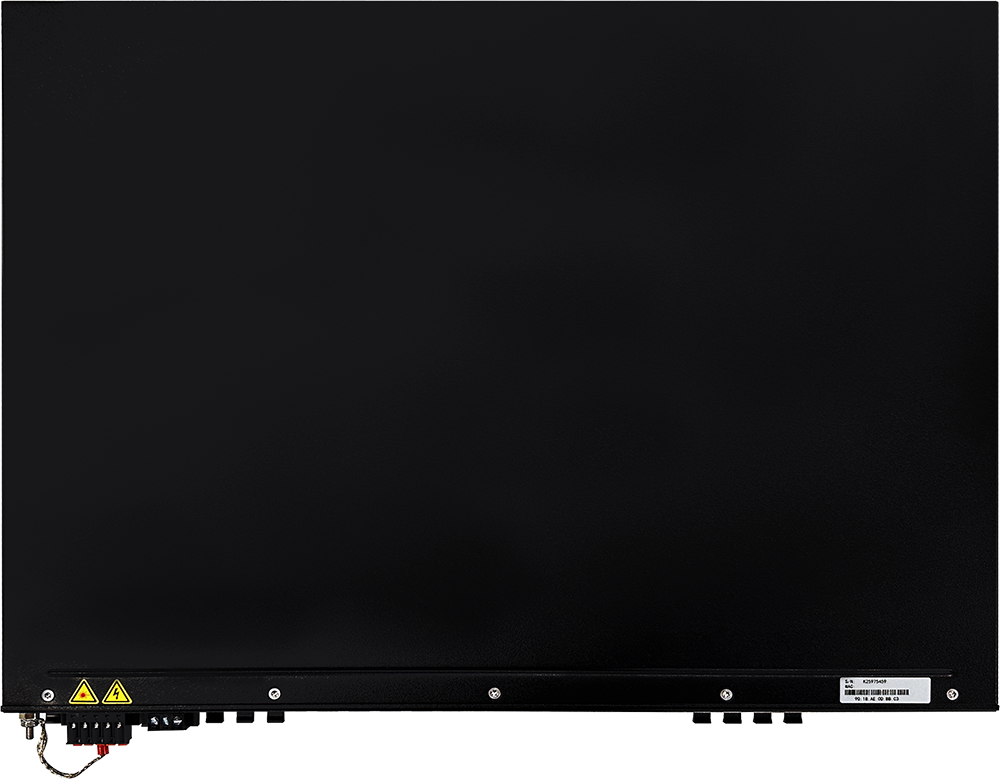

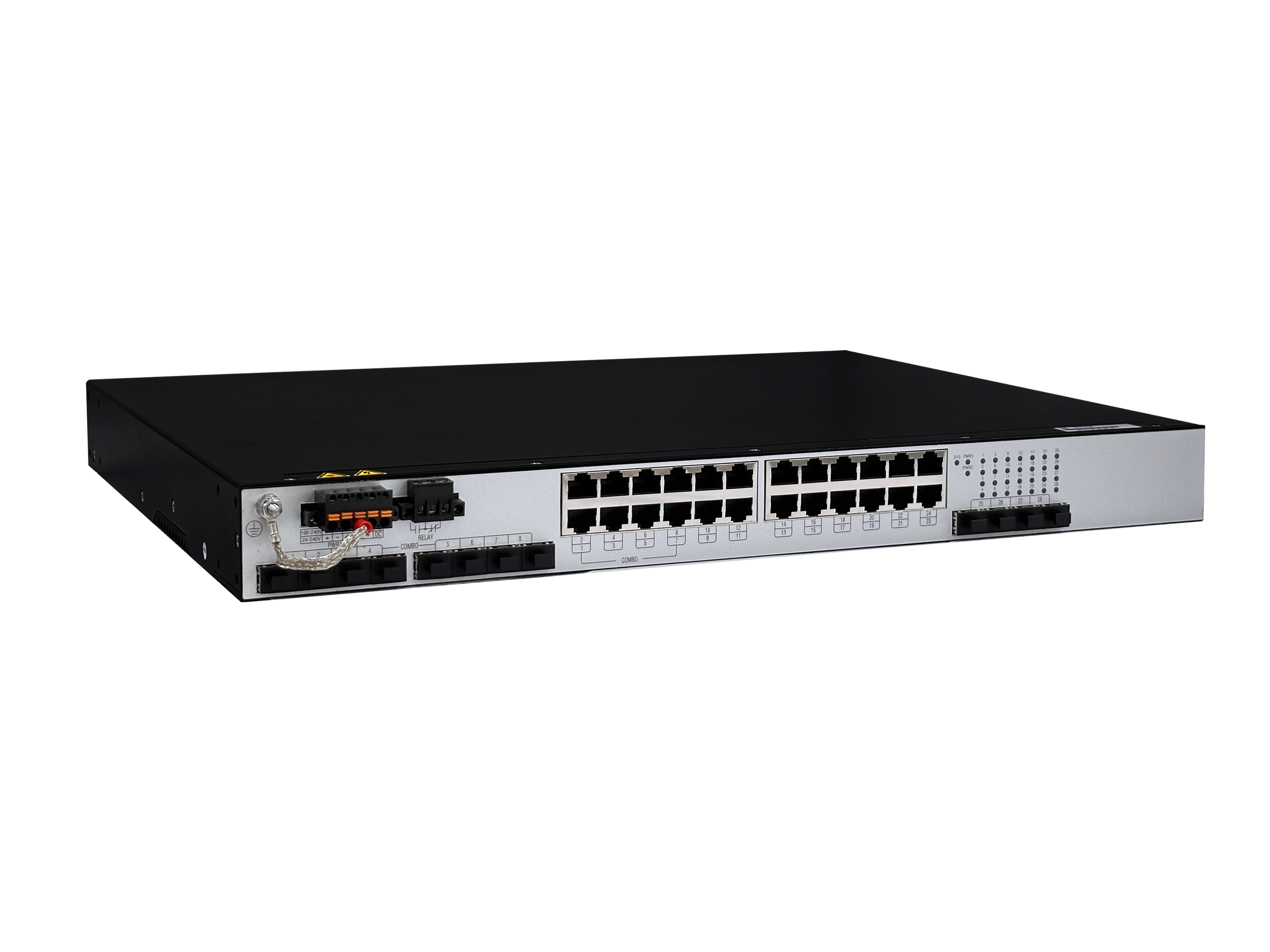

PAT4000 seriesfully domestic28-port rack-mountLayer-2industrial switchMRD (Shanghai Boying Communication Technology Co., Ltd.)an industrial Ethernet switch independently developed on domestic CPU, switch chip, PHY, OS and software, delivering security and controllability from PHY to core software. PAT4000 seriesfully domestic28-port rack-mountLayer-2industrial switchuses 100% domestic parts, localization rate reaches 100%.
The PAT4000 series fully domestic 28-port rack-mount Layer-2 industrial switch supports 16 Gigabit copper + 8 GE/FE auto-sensing Combo + 4 GE/FE auto-sensing SFP, suitable for large industrial networks.
The PAT4000 series fully domestic 28-port rack-mount Layer-2 industrial switch supports IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS and port mirroring, plus Ethernet redundancy (RSTP/STP/MSTP) to improve reliability and backbone availability. It features a rugged aluminum alloy housing for industrial environments with optional fiber connectivity.
The cable is connected, but the port will not come UP / the link is down. What should I check?
+What are the PoE power specifications?
+Which ring protocols are supported, and what is the self-healing time?
+How should I choose between Layer-2 and Layer-3 industrial switches?
+Can non-OEM SFP optical modules work normally?
+How do I restore factory settings if I forget the device login password?
+What are the power supply requirements for industrial switches?
+What are the operating temperature range and protection rating of industrial switches?
+Core CPU, switch chip and PHY use domestic chips with domestic-IP Linux OS
BiDi FE single-mode SFP (1550nm Tx/1310nm Rx), LC, max 40 km; MRD-MGIGA-GLX Gigabit single-mode SFP (1310nm), LC, max 20 km; MRD-MGIGA-GEX Gigabit single-mode SFP (1310nm), LC, max 40 km; MRD-MGIGA-GZX Gigabit single-mode SFP (1550nm), LC, max 80 km
Provides packet-loss protection and fast recovery from network faults
Supports IGMP snooping and GMRP
Supports port-based unicast MAC binding
Supports multiple multicast protocols with strong security
Layer-3 enhanced IP41 fully sealed 1U rack-mount (19-inch capable): 8 FE M12 (PoE/PoE+ with built-in 130W PoE PSU). Industrial isolated power (110VDC/220VAC).
Supports QoS (IEEE 802.1P/1Q and TOS/DiffServ)
Supports CLI, Telnet, Web management and SNMPv1/v2c/v3 NMS software
Supports RMON
Supportsport mirroring
Redundant dual power input design
IP40 Ingress protection
Fanless , -40℃ ~ +85℃operating temperature
IEEE 802.3 CSMA/CD method and physical Layer specifications CSMA/CD method and physical layer specifications
IEEE 802.1p Priority Queuing Priority Queuing
IEEE 802.1q VLAN tagging VLAN Tagging
IEEE 802.1d Spanning Tree Algorithm Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Multiple Spanning Tree Protocol
IEEE 802.3ac VLAN Tagging VLAN Tagging
IEEE 802.1x Authentication Authentication
IEEE 802.3ad Link Aggregation Link Aggregation
IEEE 802.3x Flow Control Flow Control
IEEE 802.3 Ethernet Ethernet
IEEE 802.3u Fast Ethernet Fast Ethernet
IEEE 802.3z Gigabit Ethernet Gigabit Ethernet
IEEE 802 Networks Networks
RFC 768 UDP User Datagram Protocol
RFC 791 IP Internet Protocol
RFC 792 ICMP Internet Control Message Protocol
RFC 793 TCP Transmission Control Protocol
RFC 826 ARP Address Resolution Protocol
RFC 854 Telnet Client & Server Telnet Client & Server
RFC 862 Echo Protocol Echo Protocol
RFC 863 Discard Protocol Discard Protocol
RFC 867 Daytime Protocol Daytime Protocol
RFC 868 Time Protocol Time Protocol
RFC 1027 Using ARP to Implement Transparent Subnet Gateways Proxy ARP
RFC 1059, 1119 NTPv1/2 Network Time Protocol v1 and v2
RFC 1191 Path MTU Discovery Path MTU Discovery
RFC 1851 The ESP Triple DES Transform ESP Triple DES Transform
RFC 1866 HTML HTML
RFC 1994 PPP Challenge Handshake Authentication Protocol (CHAP) Challenge Handshake Authentication Protocol
RFC 2068 HTTP Hypertext Transfer Protocol
RFC 2138 RADIUS Remote Authentication Dial-In User Service
RFC 2139 RADIUS Accounting RADIUS Accounting
RFC 2236 IGMPv2 IGMPv2
RFC 2474 DiffServ Precedence
RFC 2597 DiffServ Assured Forwarding
RFC 2598 DiffServ Expedited Forwarding
RFC 2644 Directed Broadcasts Directed Broadcasts
RFC 2865 Remote Authentication Dial in User Service (RADIUS) Remote Authentication Dial-In User Service
GMRP GARP Multicast Registration Protocol
GVRP GARP VLAN Registration Protocol
SSH2 Secure Shell 2
IGMP snooping IGMP snooping
SNMPv3 Simple Network Management Protocol v3
| Backplane bandwidth | 56Gbps |
| Processor | 1.0G dual-core |
| Switching technology | store-and-forward |
| MAC address table | 8K |
| Packet buffer | 3 Mbits |
| Switching rate | 148,800 pps/FE port; 1,488,000 pps/GE port |
| Management Methods | Browser, Serial, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3, SNMPv2c , SNMPv1 , RFC2668 MAU , RFC2925 Ping MIB , MRD Private MI Bs |
| Diagnostics | LEDs, log files, relay, RMON, port mirroring, TRAP |
| Redundancy | RSTP , STP , MSTP , link aggregation |
| time synchronization | NTP |
| Other | 4K VLANS , IPv4/IPv6 multicast , storm control , Supports Jumbo Frame |
| Terminal block | 1 removable 5-pin terminal block |
| Input voltage | 100 ~ 240VAC (50 ~ 60Hz) / 24 ~ 240VDC , dual input |
| Power | ≤50W |
| overload current protection | Supports |
| reverse polarity protection | Supports |
| Mounting method | rack mounting |
| housing | aluminum alloy housing |
| Dimensions (W x H x D) | 442mm×43.8mm×335mm |
| protection rating | IP40 |
| Weight | ≤2.7 Kg |
| storage temperature | -40℃ ~ 85℃ |
| operating temperature | -40℃ ~ 85℃ |
| Humidity | 5% ~ 95%, non-condensing |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| free fall | IEC 60068-2-31 |
| PCB | Compliant with IPC standards |
| EMI radiation | FCC 47 CFR Part 15 Class A EN55032 Class A EN55035 Class A |
| EMC | IEC(EN)61000-4-2, Level 4 IEC(EN)61000-4-4, Level 4 IEC(EN)61000-4-5, Level 4 IEC(EN)61000-4-6, Level 3 IEC(EN)61000-4-9, Level 5 |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B C lass A |
| hazardous area | UL/cUL1604 Class 1 Div 2 (certification in progress) |
| transportation industry | JT/T817-2011 ; NEMA-TS2 (certification in progress) |
| rail industry | EN50121-4 |
| power industry | IEC61850-3 IEEE1613（C37.90.x） |
| industrial control industry | UL/cUL61010 (certification in progress) |
| shipbuilding industry | GL (certification in progress) |
| Model | Product Specification |
| PAT4000-ISB28UU4GX8GC16GT | All-black with Changzheng Centauri software, 28-port standard 19-inch rack-mount Layer-2 industrial switch: 16×10/100/1000BaseT + 8×100/1000Base(X/T) Combo + 4×100/1000BaseX SFP. 1 CLI, 1 relay. Redundant dual isolated power (24~240VDC/100~240VAC). Specifications are subject to change without notice. Tel: 86-21-58330762 Fax: 86-21-58330763 |
