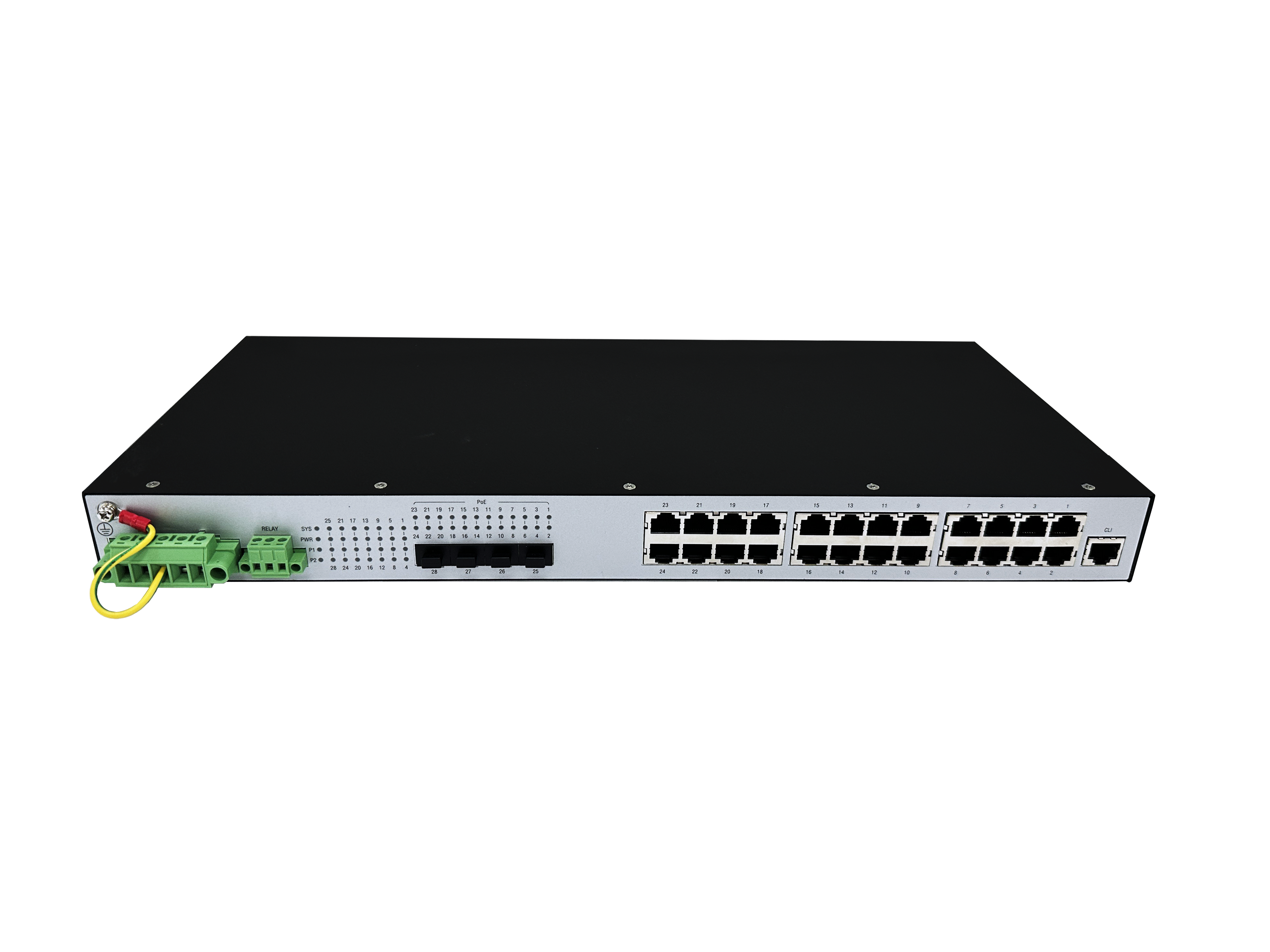

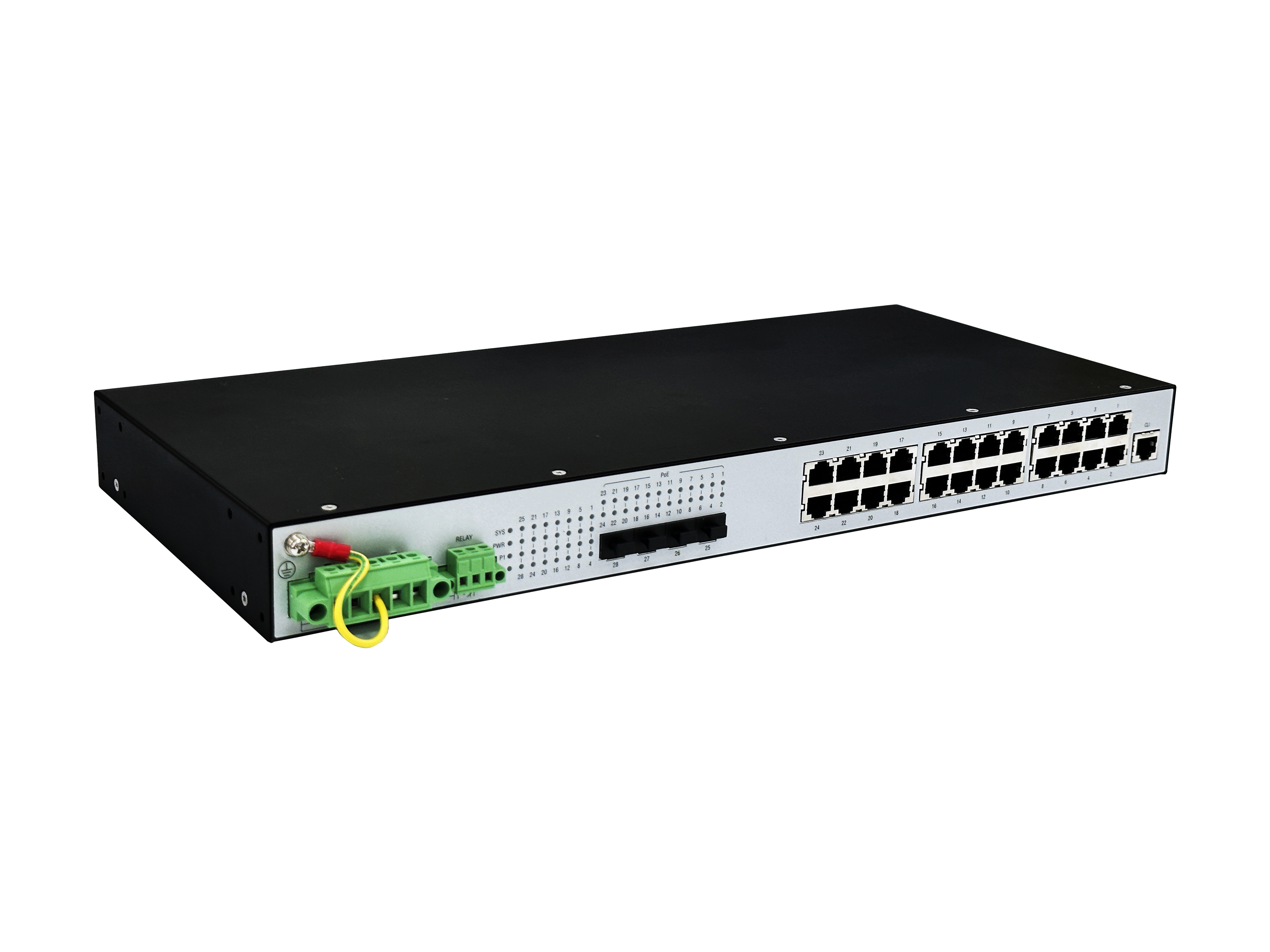

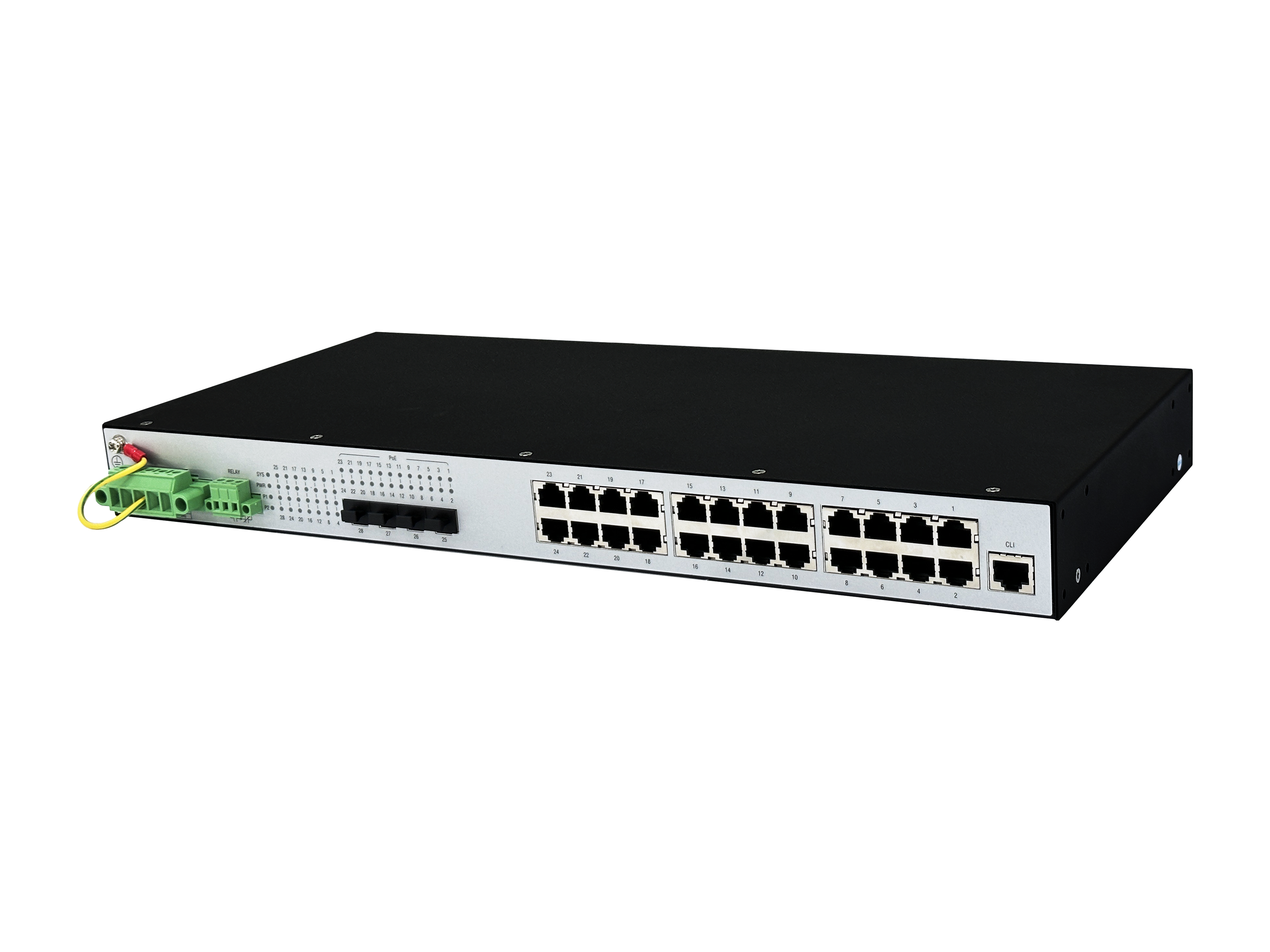

SRS2000 Series Rackmount Layer-2 Managed Industrial Switch

PAT300 Series indigenous controllable Patriot full Layer-3 industrial switch is self-developed by MRD (Shanghai Boying) on domestic CPU, switch chip, PHY, OS and software—secure and controllable from PHY to core software. Uses 100% domestic parts with 100% localization.

SRS2000 Series rackmount Layer-2 managed industrial switch uses 100~240VDC/VAC and 48~54VDC (PoE models) redundant dual power, rackmount; PoE models deliver up to 30W per PoE port. Rugged aluminum housing, IP40, high-level EMI/EMC, strict burn-in—meeting industry stability and durability requirements.

Certifications

Contact

FAQ

The cable is connected, but the port will not come UP / the link is down. What should I check?
+

1) Confirm an industrial-grade cable and proper RJ45 crimping. 2) Check speed/duplex settings; set both ends to auto-negotiation. 3) Check whether the port is administratively shut down, in the wrong VLAN, or restricted by port security.
What are the PoE power specifications?
+

Standard PoE and PoE+ are supported, with max per-port power of 15.4 W and 30 W respectively. Total system power budget must be calculated during selection to avoid insufficient supply when too many PDs are connected.
Which ring protocols are supported, and what is the self-healing time?
+

Mainstream industrial ring protocols such as ERPS (G.8032), RSTP/STP, MRP, and PRP are supported. ERPS typical self-healing is ≤50 ms; traditional RSTP is second-level. It is recommended to use one ring protocol consistently across the network.
How should I choose between Layer-2 and Layer-3 industrial switches?
+

Layer-2 switches: basic features such as VLAN, ring networks, and port mirroring; suited to access layers and same-subnet networking with strong cost performance. Layer-3 switches: add static routing, OSPF, DHCP relay, multicast, and other routing features—choose these when cross-subnet communication or core/aggregation networks are required.
Can non-OEM SFP optical modules work normally?
+

The device is compatible with generic IEEE 802.3 SFP modules. Non-OEM modules can usually be recognized, but some brands may have compatibility issues. OEM modules are recommended.
How do I restore factory settings if I forget the device login password?
+

1) Hardware reset: press and hold the RESET button for 5–10 seconds; the device reboots to factory defaults. 2) Software reset: use the vendor NMS to restore factory settings remotely. All custom configurations will be cleared after restore.
What are the power supply requirements for industrial switches?
+

DC models support 18–60 VDC or 9.6–60 VDC; AC models support 100–240 VAC, with dual redundant power inputs. Phoenix terminal wiring; reverse-polarity protection is built in so normal reverse connection will not damage the device.
What are the operating temperature range and protection rating of industrial switches?
+

All-metal aluminum alloy housing. Operating temperature is -40°C to +75°C; premium wide-temperature models reach -40°C to +85°C. Typical enclosure rating is IP40.

Features

All Gigabit ports

Backplane bandwidth up to 56Gbps

Wide and diverse power input options

Rust-free aluminum alloy housing with hex socket screws

Supports network management

Wire-speed forwarding and auto MDI/MDI-X on all ports; long-distance capable

One-click factory reset and reboot

Supports configuration file upload/download

Supports IEEE 802.3af/at PoE

Each PoE port supports 802.3af and 802.3at

Surge protection: power ±4 kV, Ethernet ±4 kV

IP40 protection rating

Compact, easy to install, plug-and-play

Fanless design; wide-temperature quiet operation

MTBF ≥ 300,000h

Industrial Ethernet Switch

Specifications

IEEE 802.3 CSMA/CD Method and Physical Layer Specifications

IEEE 802.1p Priority Queuing

IEEE 802.1q VLAN Tagging

IEEE 802.1d Spanning Tree Algorithm

IEEE 802.1w Rapid Spanning Tree

IEEE 802.1s Multiple Spanning Tree

IEEE 802.1x Authentication

IEEE 802.3ac VLAN Tagging

IEEE 802.3ad Link Aggregation

IEEE 802.3af/at PoE

IEEE 802.3x Flow Control

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3z Gigabit Ethernet

IEEE 802 Networks

IEEE 1166 Internet Numbers Internet data

RFC 768 UDP

RFC 791 IP

RFC792 ICMP

RFC 793 TCP

RFC 826 ARP

RFC 854 Telnet Client & Server

RFC 862 Echo Protocol

RFC 863 Discard Protocol

RFC 1027 Using ARP to Implement Transparent Subnet Gateways

RFC 1059,1119 NTPv1/2

RFC 1112 IGMP IP

RFC 1191 Path MTU Discovery

RFC 1542 Bootstrap Extensions & DHCP DHCP

RFC 1851 The ESP Triple DES Transform ESP

RFC 1866 HTML HTML

RFC 1994 PPP Challenge Handshake Authentication Protocol (CHAP)

RFC 2068 HTTP

RFC 213 DHCP Server DHCP

RFC 2138 RADIUS

RFC 2139 RADIUS Accounting

RFC 2236 IGMPv2

RFC 2474 DiffServ Precedence

RFC 2475 DiffServ Core and Edge Router Functions

RFC 2597 DiffServ Assured Forwarding

RFC 2598 DiffServ Expedited Forwarding

RFC 2644 Directed Broadcasts

RFC 2865 Remote Authentication Dial User Service (RADIUS)

RFC 3046 DHCP Relay Agent Information Option DHCP

RFC 3222 Forwarding Information Base (FIB)

GMRP GARP

GVRP GARP

SSH2 Secure Shell 2

IGMP Snooping IGMP

SNMPv3

Switching Performance -
Backplane Bandwidth 56Gbps
Switching Technology store-and-forward
MAC Address Table 8K
Packet Buffer Size 4.1Mbits
Switching Rate 148,800 pps/FE port; 1,488,000 pps/GE port

Software Features-

Management Methods	Browser, Console, Telnet, SSH 2.0, Syslog, STD-62 SNMPv3, SNMPv1, SNMPv2, FTP/TFTP
Diagnostics	Indicators, logs, relay, port mirroring, TRAP
Redundancy	RSTP, STP, MSTP, link aggregation
time synchronization	NTP
other	4K VLANs, IPv4/IPv6 multicast, storm control, Jumbo Frame

Power Parameters+

Power Connection	1 removable 5-PIN terminal
Input voltage	100-240VAC (50-60Hz) / 100-240VDC, redundant dual input 48-54 VDC, redundant dual input
overload current protection	support
reverse polarity protection	support
Power consumption	≤25W (non-PoE models; PoE models excluding PD)

Physical Characteristics+
Mounting method Rackmount
shell aluminum alloy housing
protection rating IP40
Dimensions (W×H×D) 440mm × 43.8mm × 200mm
Weight 1.7kg

Mechanical Characteristics+

vibration	IEC 60068-2-6
impact	IEC 60068-2-27
free fall	IEC 60068-2-31
circuit board	Compliant with IPC standards Temperature Characteristics
Storage Temperature	-40°C ~ +85°C
Operating temperature	-40°C ~ +75°C
humidity	5% ~ 95% (non-condensing)

Electromagnetic Characteristics+
EMI radiation FCC 47 CFR Part 15 Class A
EN55032 Class A
EN55035 Class A
EMC IEC(EN)61000-4-2, Level 4
IEC(EN)61000-4-4, Level 4
IEC(EN)61000-4-5, Level 4
IEC(EN)61000-4-6, Level 3
IEC(EN)61000-4-8, Level 5
Industry Certification & Testing+
Product Safety EN 62368-1
EMC EN 55032
EN 55035
EN I EC61000-3-2
EN 61000-3-3
FCC Part 15 Subpart B C lass A
other MPS test report, telecom network access license, RoHS

Dimensions

Accessories

model	Product Specification
SRS2000-SB28PP4G24TP	All-aluminum 10-port unmanaged PoE industrial switch: 2×100/1000BaseX SFP (no SFP module) + 8×10/100/1000BaseT PoE, DIN-rail. IP40, -40°C~+75°C. Redundant dual power (48~54VDC). Power cord ordered separately.
SRS2000-SB28HH4G24TT	All-aluminum all-black Centauri 28-port Layer-2 managed industrial switch: 4×100/1000BaseX SFP + 24×10/100/1000BaseT PoE, rackmount. IP40, -40°C~+75°C. 48~54VDC redundant dual isolated power. Includes power cord and brackets.
