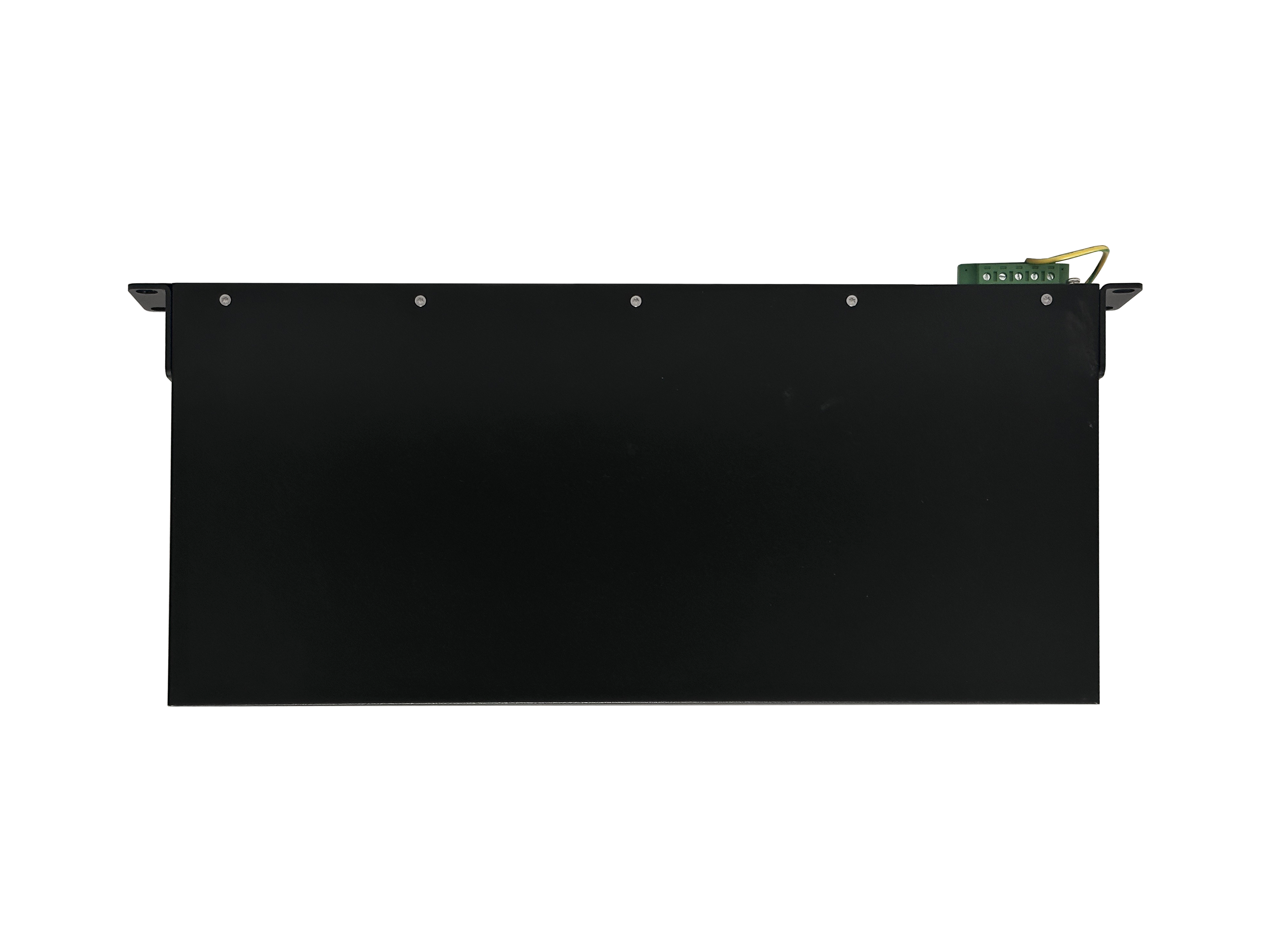

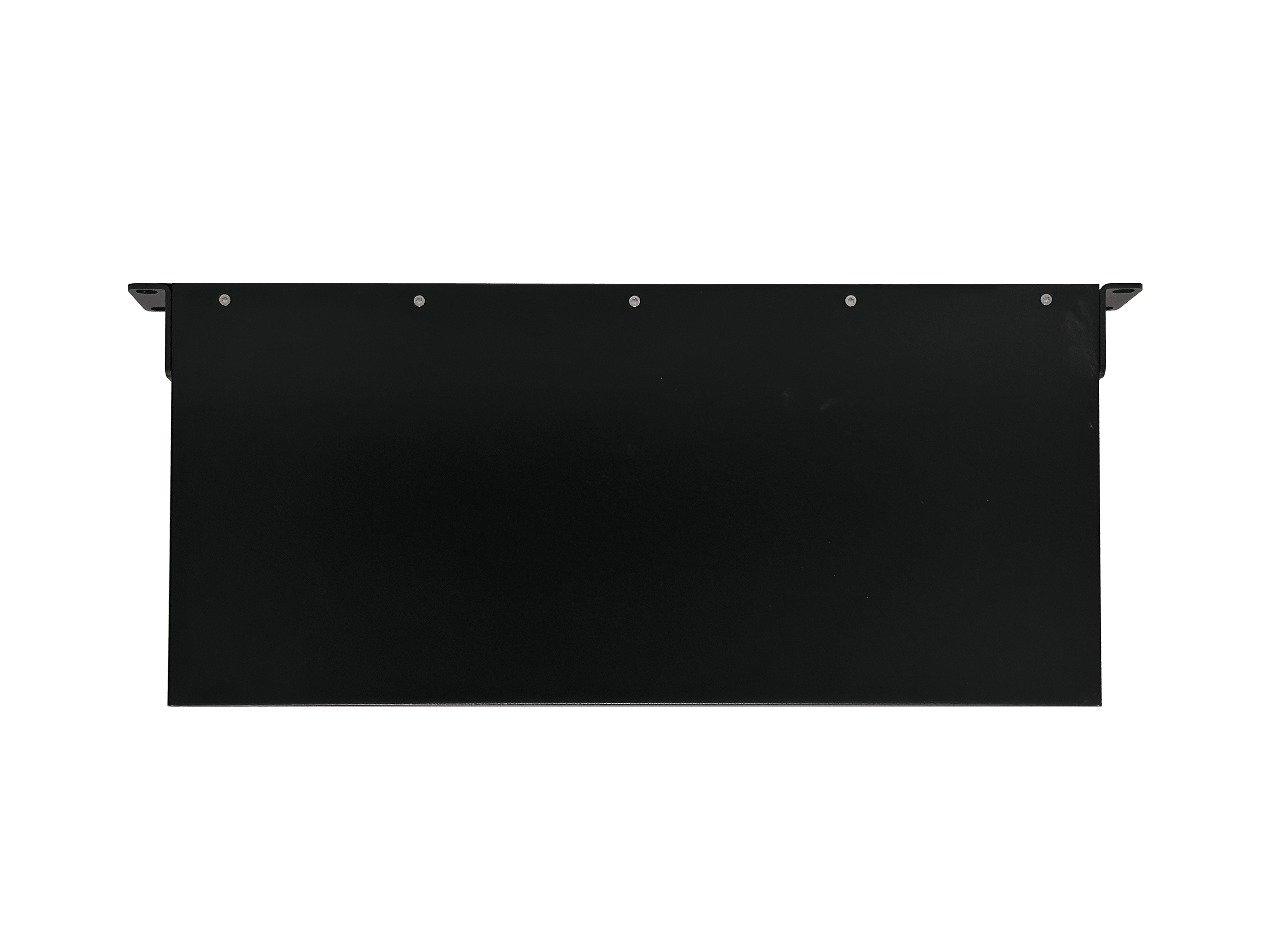

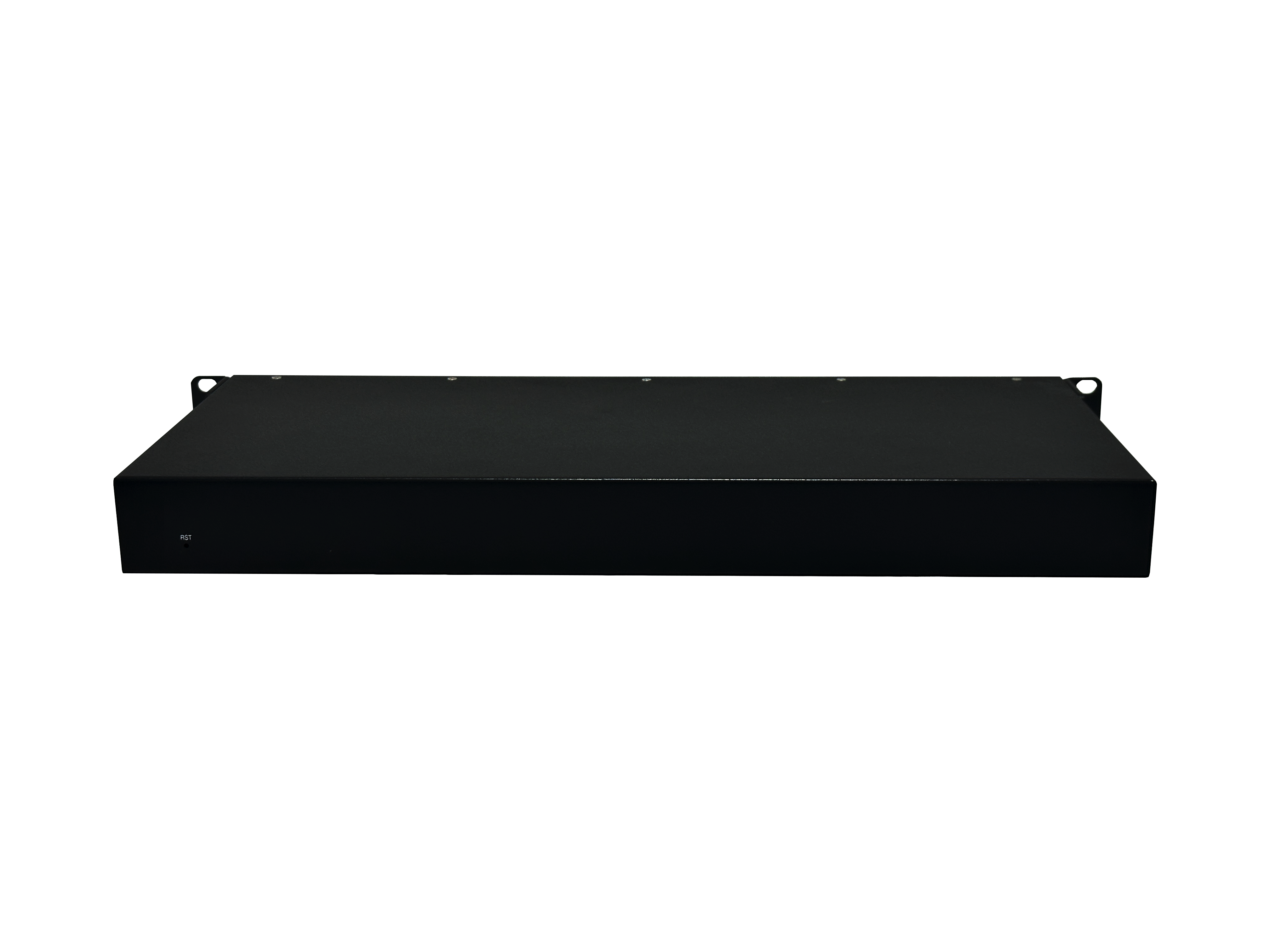

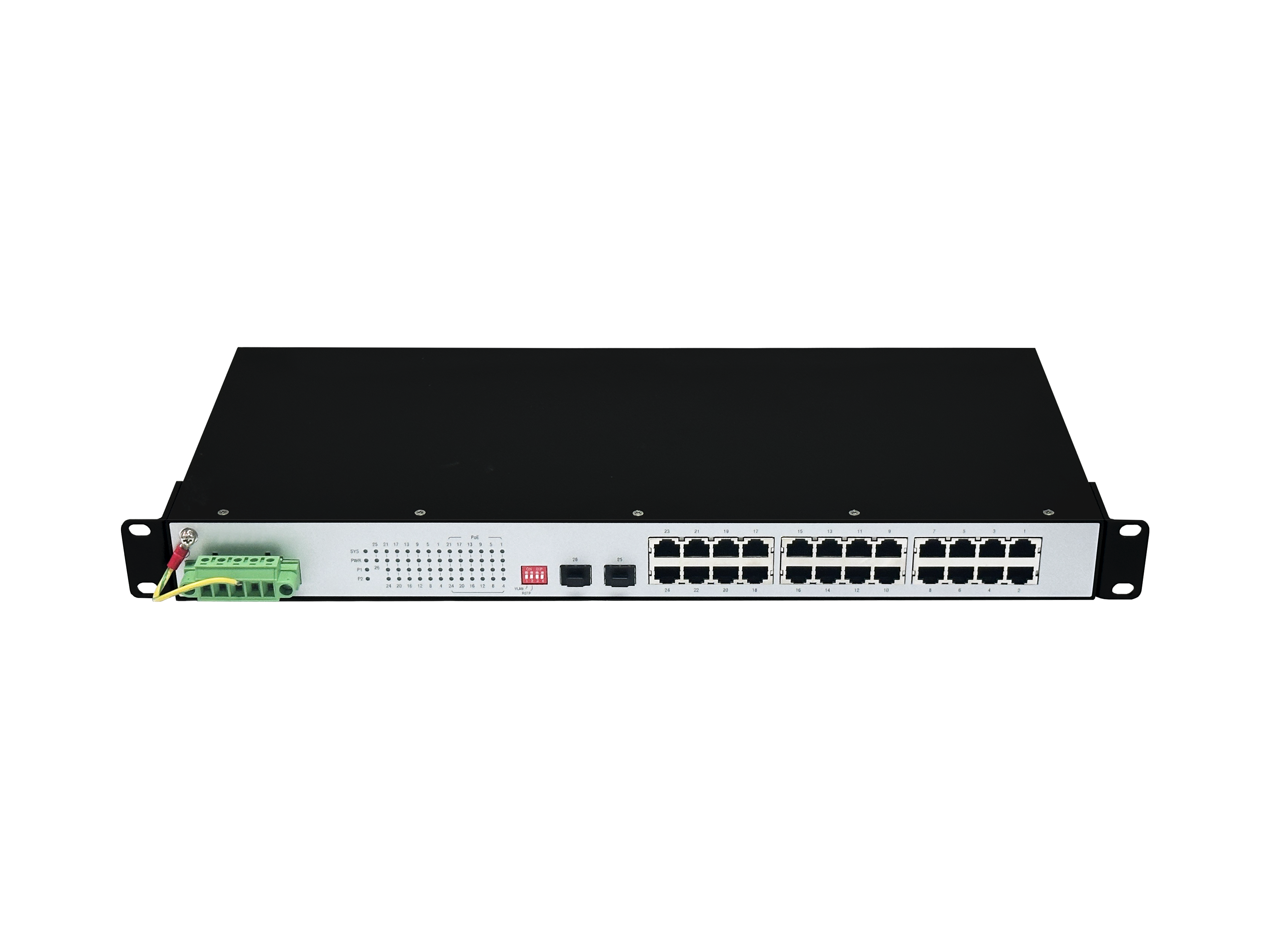

SRS2000 Series Rackmount WEB-Managed PoE Industrial Switch
SRS2000 Series Rackmount WEB-Managed PoE Industrial Switch
SRS2000 Series Rackmount WEB-Managed PoE Industrial Switch
SRS2000 Series Rackmount WEB-Managed PoE Industrial Switch
SRS2000 Series Rackmount WEB-Managed PoE Industrial Switch
SRS2000 Series Rackmount WEB-Managed PoE Industrial Switch
SRS2000 Series Rackmount WEB-Managed PoE Industrial Switch

SRS2000 Series Rackmount WEB-Managed PoE Industrial Switch

Backplane bandwidth 52 Gbps

Supports WEB management

One-click port isolation and self-healing ring setup

Supports IEEE 802.3af/at PoE

Get a Quote Claim Coupon Download
Download

Product Overview

SRS2000 Series Rackmount WEB-Managed PoE Industrial Switch

MTX100 Series 8-port unmanaged industrial switch, die-cast aluminum housing. 8×10/100/1000BaseT. IP30, -40°C~+75°C. 12/24/48 VDC (9.6~60VDC) & 24VAC (18~30VAC) (Class 2 power only).

MTX100 Series 8-port unmanaged industrial switch, die-cast aluminum housing. 2×100BaseX SFP + 6×10/100BaseT. IP30, -40°C~+75°C. 12/24/48 VDC (9.6~60VDC) & 24VAC (18~30VAC) (Class 2 power only).

Certifications

Contact

FAQ

  • The cable is connected, but the port will not come UP / the link is down. What should I check?

    +

    1) Confirm an industrial-grade cable and proper RJ45 crimping. 2) Check speed/duplex settings; set both ends to auto-negotiation. 3) Check whether the port is administratively shut down, in the wrong VLAN, or restricted by port security.

  • What are the PoE power specifications?

    +

    Standard PoE and PoE+ are supported, with max per-port power of 15.4 W and 30 W respectively. Total system power budget must be calculated during selection to avoid insufficient supply when too many PDs are connected.

  • Which ring protocols are supported, and what is the self-healing time?

    +

    Mainstream industrial ring protocols such as ERPS (G.8032), RSTP/STP, MRP, and PRP are supported. ERPS typical self-healing is ≤50 ms; traditional RSTP is second-level. It is recommended to use one ring protocol consistently across the network.

  • How should I choose between Layer-2 and Layer-3 industrial switches?

    +

    Layer-2 switches: basic features such as VLAN, ring networks, and port mirroring; suited to access layers and same-subnet networking with strong cost performance. Layer-3 switches: add static routing, OSPF, DHCP relay, multicast, and other routing features—choose these when cross-subnet communication or core/aggregation networks are required.

  • Can non-OEM SFP optical modules work normally?

    +

    The device is compatible with generic IEEE 802.3 SFP modules. Non-OEM modules can usually be recognized, but some brands may have compatibility issues. OEM modules are recommended.

  • How do I restore factory settings if I forget the device login password?

    +

    1) Hardware reset: press and hold the RESET button for 5–10 seconds; the device reboots to factory defaults. 2) Software reset: use the vendor NMS to restore factory settings remotely. All custom configurations will be cleared after restore.

  • What are the power supply requirements for industrial switches?

    +

    DC models support 18–60 VDC or 9.6–60 VDC; AC models support 100–240 VAC, with dual redundant power inputs. Phoenix terminal wiring; reverse-polarity protection is built in so normal reverse connection will not damage the device.

  • What are the operating temperature range and protection rating of industrial switches?

    +

    All-metal aluminum alloy housing. Operating temperature is -40°C to +75°C; premium wide-temperature models reach -40°C to +85°C. Typical enclosure rating is IP40.

Features

All Gigabit ports

Backplane bandwidth up to 52Gbps

Wide and diverse power input options

Rust-free aluminum alloy housing with hex socket screws

Supports WEB management

Wire-speed forwarding and auto MDI/MDI-X on all ports; long-distance capable

One-click port isolation and self-healing ring setup

One-click factory reset and reboot

Supports configuration file upload/download

Supports IEEE 802.3af/at PoE

Surge protection: power ±4 kV, Ethernet ±4 kV

IP40 protection rating

Compact, easy to install, plug-and-play

Fanless design; wide-temperature quiet operation

MTBF ≥ 300,000h

Industrial Ethernet Switch

Specifications

IEEE 802.3 CSMA/CD Method and Physical Layer Specifications

IEEE 802.1p Priority Queuing

IEEE 802.1q VLAN Tagging

IEEE 802.1w Rapid Spanning Tree

IEEE 802.3ac VLAN Tagging

IEEE 802.3ad Link Aggregation

IEEE 802.3af/at PoE

IEEE 802.3x Flow Control

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3z Gigabit Ethernet

IEEE 802 Networks

RFC 768 UDP

RFC 791 IP

RFC792 ICMP

RFC 793 TCP

RFC 826 ARP

RFC 862 Echo Protocol

RFC 863 Discard Protocol

RFC 1027 Using ARP to Implement Transparent Subnet Gateways

RFC 1112 IGMP IP

RFC 2068 HTTP

RFC 2236 IGMPv2

IGMP Snooping IGMP

  • Switching Performance -

    Backplane Bandwidth52Gbps
    Switching Technologystore-and-forward
    MAC Address Table8K
    Packet Buffer Size4.1Mbit
    Switching Rate148,800 pps/FE port; 1,488,000 pps/GE port

  • Software Features-

    Management MethodsWEB based on HTTP, SNMPv1, SNMPv2
    DiagnosticsIndicators, logs, port mirroring, TRAP
    RedundancyRSTP
    DIP switchRSTP ，VLAN
    other4K VLANs, IPv4 multicast, storm control, Jumbo Frame

  • Power Parameters+

    Power Connection1 removable 5-PIN terminal
    Input voltage48~54 VDC, dual input
    overload current protectionsupport
    reverse polarity protectionsupport
    Power consumption≤25W (excluding PD)

  • Physical Characteristics+

    Mounting methodRackmount
    shellaluminum alloy housing
    protection ratingIP40
    Dimensions (W×H×D)440mm × 43.8mm × 200mm
    Weight1.7kg

  • Mechanical Characteristics+

    vibrationIEC 60068-2-6
    impactIEC 60068-2-27
    free fallIEC 60068-2-31
    circuit boardCompliant with IPC standards

    Temperature Characteristics
    Storage Temperature-40°C ~ +85°C
    Operating temperature-40°C ~ +75°C
    humidity5% ~ 95% (non-condensing)

  • Electromagnetic Characteristics+

    EMI radiationFCC 47 CFR Part 15 Class A
    EN55032 Class A
    EN55035 Class A
    EMCIEC(EN)61000-4-2, Level 4
    IEC(EN)61000-4-4, Level 4
    IEC(EN)61000-4-5, Level 4
    IEC(EN)61000-4-6, Level 3
    IEC(EN)61000-4-8, Level 5

  • Industry Certification & Testing+

    Product SafetyEN 62368-1
    EMCEN 55032
    EN 55035
    EN I EC61000-3-2
    EN 61000-3-3
    FCC Part 15 Subpart B C lass A
    otherMPS test report, telecom network access license, RoHS

Dimensions

Dimensions

Accessories

modelProduct Specification
SRS2000-SW26PP2G24TPAll-black Centauri 26-port WEB-managed industrial switch: 2×100/1000BaseX SFP (no SFP module) + 24×10/100/1000BaseT PoE, rackmount. IP40, -40°C~+75°C. 48~54VDC redundant dual isolated power. Includes one power cord.
