Supports up to 80 Gigabit ports + 8×10G ports
Supports PoE per IEEE 802.3af/at
Any two ports can form a self-healing ring; multiple independent rings supported
Layer-2 QoS rate limiting and traffic shaping enable tiered Ethernet bandwidth services

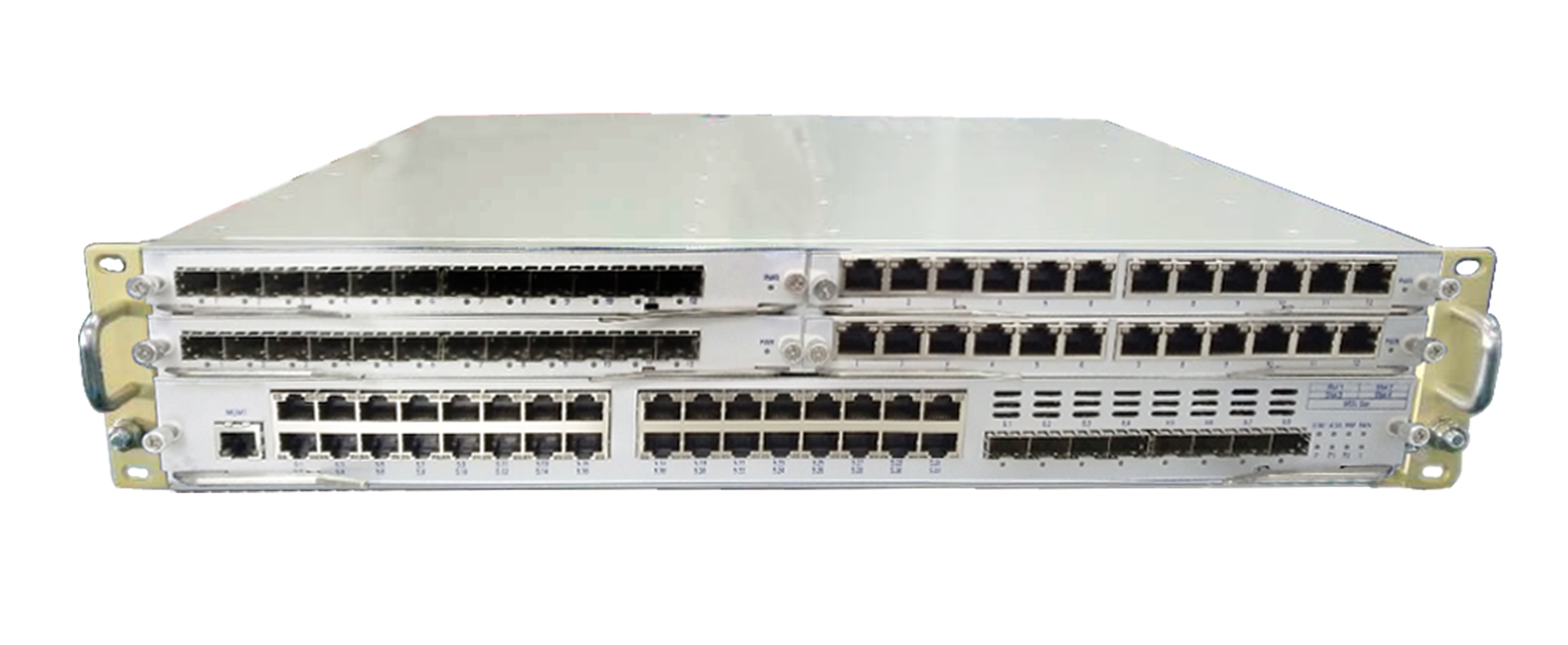

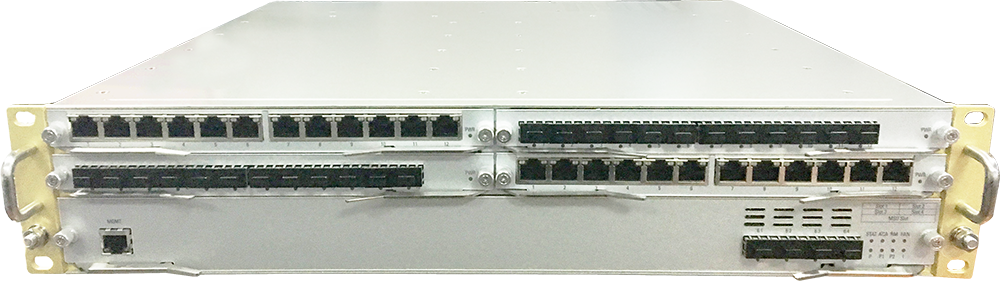

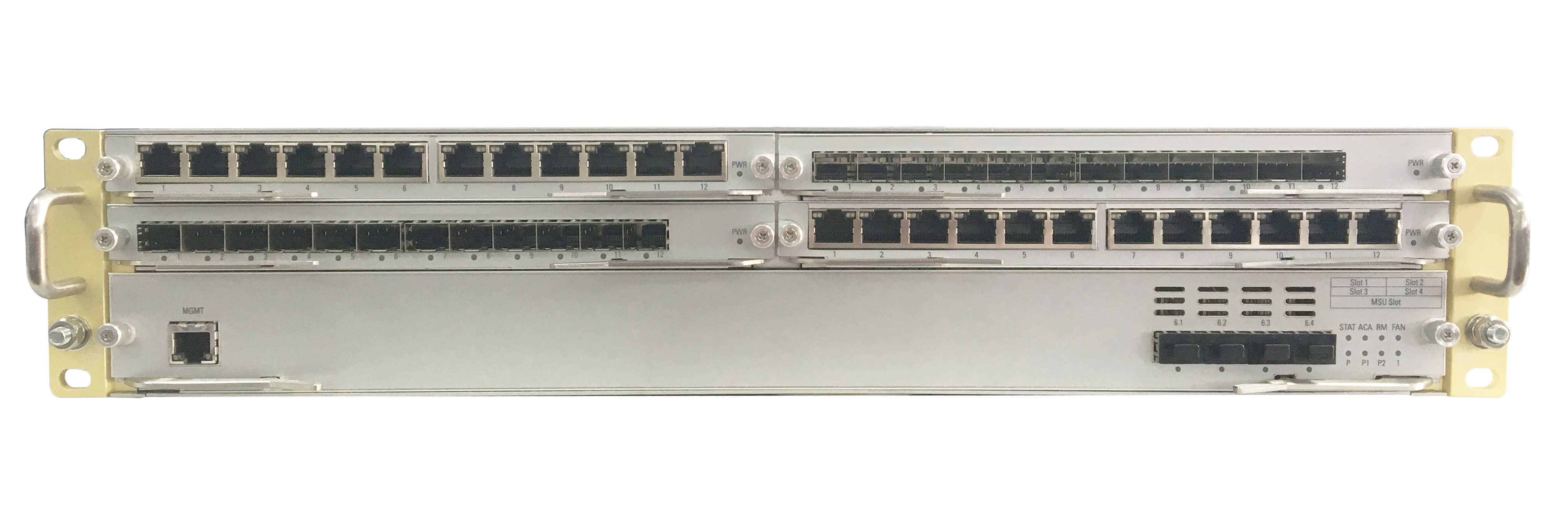

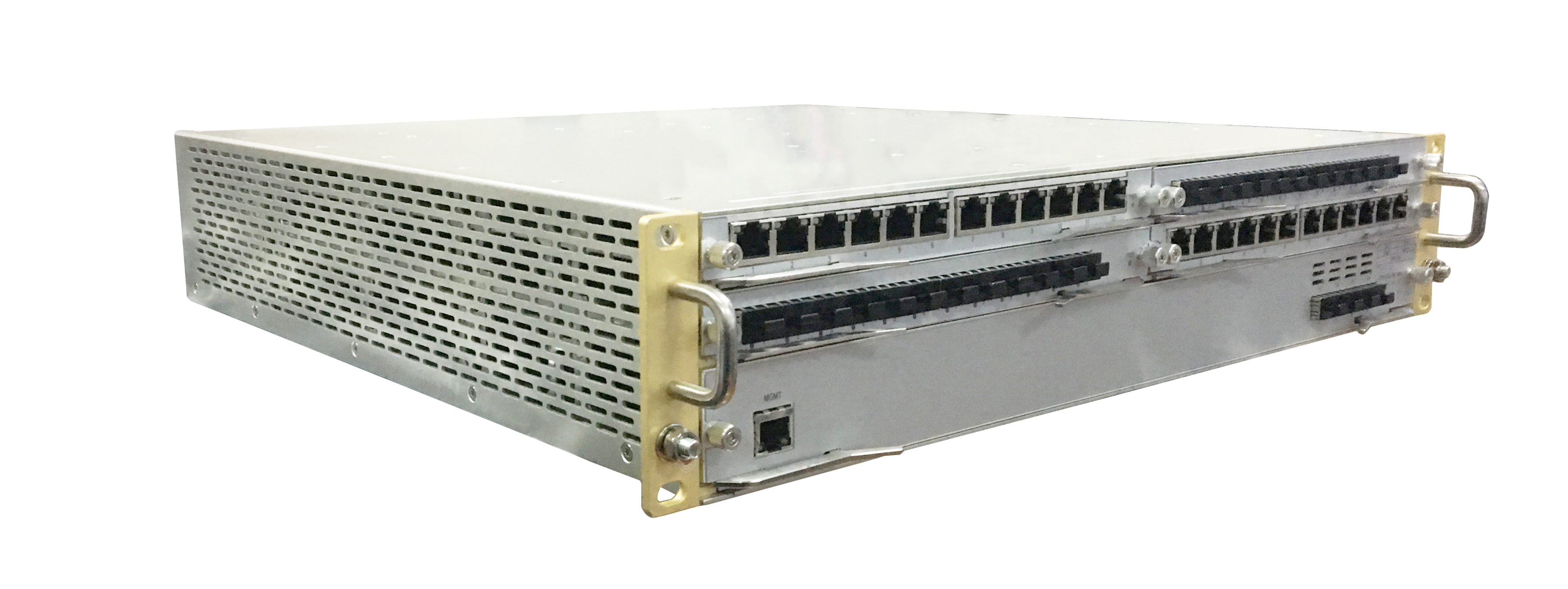

TNM6000 core industrial switch supports up to 80 Gigabit ports + 8×10G ports. Standard 19-inch rackmount 2U, 8-slot: 1 main-control + 4 service + 2 power + 1 fan (German ebmpapst long-life fans). Management: 1 Ethernet + 1 CLI + 1 relay + 1 USB for ACA + 1 SD. All modules support online upgrade; service and fan modules are hot-swappable; hardware RTC. Unified optics and OS across models for future-ready architecture and consistent operation. Patented MRD-Ring® self-healing ring with hardware-based per-node recovery <5 ms and ring recovery <50 ms (typical). Also supports standard xSTP for multi-vendor redundancy while retaining fast self-healing.
TNM6000 high backplane capacity and diverse interface modules enable fast Layer-2 switching and routing. CPLD dynamic reconfiguration and reprogramming deliver high stability and reliability with local/remote monitoring of key parameters. Extended industrial design suits harsh and outdoor environments.
The cable is connected, but the port will not come UP / the link is down. What should I check?
+What are the PoE power specifications?
+Which ring protocols are supported, and what is the self-healing time?
+How should I choose between Layer-2 and Layer-3 industrial switches?
+Can non-OEM SFP optical modules work normally?
+How do I restore factory settings if I forget the device login password?
+What are the power supply requirements for industrial switches?
+What are the operating temperature range and protection rating of industrial switches?
+High-performance multi-slot modular industrial switch; all modules support online upgrade
Supports up to 80 Gigabit ports + 8×10G ports
Supports PoE per IEEE 802.3af/at
Max PoE port output 30 W
PoE management: PD detection, PoE power management
Service and fan modules are hot-swappable
Any two ports can form a self-healing ring; multiple independent rings supported
Built-in MicOS™ RTOS unified across all MRD™ Meridian switches
Provides packet-loss protection with fast recovery from network faults
Multi-protocol Layer-3 routing meets dedicated network needs and enables smooth migration
Supports multiple multicast protocols with strong security
Layer-2 QoS rate limiting and traffic shaping enable tiered Ethernet bandwidth services
Full professional NMS and alarm tools with OPC support
Redundant dual power input design
Operating temperature -10°C ~ 60°C
MTBF over 8000,000 hours
TNM6000 Core Industrial Switch
IEEE 802.3 CSMA/CD method and physical Layer specifications
IEEE 802.1p Priority Queuing
IEEE 802.1q VLAN tagging
IEEE 802.1d Spanning Tree Algorithm
IEEE 802.1w Rapid Spanning Tree
IEEE 802.1s Multiple Spanning Tree
IEEE 802.3ac VLAN Tagging
IEEE 802.1x Authentication
IEEE 802.3ad Link Aggregation
IEEE 802.3x Flow Control
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3af/at PoE
IEEE 802.3z Gigabit Ethernet
IEEE 802 Networks
RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 Telnet Client & Server
RFC 904 Exterior Gateway Protocol Formal Spec- ification
RFC 1024,1035 Domain names
RFC 1027 Using ARP to Implement Transparent Subnet Gateways
RFC 1058 RIP
RFC 1059, 1119 NTPv1/2
RFC 1112 IGMP IP
RFC 1191 Path MTU Discovery
RFC 1256 ICMP Router discovery protocol ICMP
RFC 1267 A Border Gateway Protocol 3 (BGP-3)
RFC 1388 RIP Version 2 Carrying Additional Infor- mation
RFC 1519 CIDR (Classless Inter-domain Routing)
RFC 1542 Bootstrap Extensions & DHCP DHCP
RFC 1587 OSPF NSSA
RFC 1765 OSPF Database Overflow OSPF
RFC 1812 Requirements for IP Version 4 Routers IPv4
RFC 1851 The ESP Triple DES Transform ESP
RFC 1866 HTML HTML
RFC 1994 PPP Challenge Handshake Authentica- tion Protocol (CHAP)
RFC 2068 HTTP
RFC 213 DHCP Server DHCP
RFC 2138 RADIUS
RFC 2139 RADIUS Accounting
RFC 2236 IGMPv2
RFC 2328 OSPF V2
RFC 2338 VRRP
RFC 2362 PIM-SM/DM
RFC 2370 The OSPF Opaque LSA Option OSPF
RFC 2474 DiffServ Precedence
RFC 2475 DiffServ Core and Edge Router Func- tions
RFC 2597 DiffServ Assured Forwarding
RFC 2598 DiffServ Expedited Forwarding
RFC 2644 Directed Broadcasts
RFC 3046 DHCP Relay Agent Information Option DHCP
RFC 3222 Forwarding Information Base (FIB)
GMRP GARP
GVRP GARP
SSH2 Secure Shell 2
IGMP snooping IGMP
SNMPv3
TNM6000 Core Industrial Switch
| Module Configuration | 1 main-control slot + 4 service slots + 2 power slots + 1 fan slot |
| Max Ports | 80 Gigabit ports + 8×10G ports |
| Packet Forwarding Rate | 238Mpps |
| Switching Capacity | 320Gbps (non-blocking) |
| Packet Buffer | 8MB |
| MAC Address Table | 32k |
| Management Methods | Browser, serial, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3， SNMPv2c， SNMPv1， RFC2668 MAU， RFC2925 Ping MIB， MRD Private MIBs |
| Diagnostics | Indicators, logs, relay, RMON, port mirroring, TRAP |
| Redundancy | MSTP, RSTP, link aggregation |
| time synchronization | IEEE1588， NTP， SNTP |
| other | IPv4/IPv6 multicast, storm control, MC/BC protection, Jumbo Frame |
| MTBF | over 8000,000 hours |
| Storage Temp/Humidity | -40℃ ~ 70℃, 5%-95% |
| Operating Temp/Humidity | -10℃ ~ 60℃, 10%-95% |
| Dimensions (W×H×D) | 444.4mm ×88.2mm ×440mm |
| protection rating | IP30 |
| Chassis Weight | 11KG (max., excluding PSU) |
| Power consumption | 200W (max.) |
| vibration | IEC 60068-2-6 |
| impact | IEC 60068-2-27 |
| free fall | IEC 60068-2-31 |
| circuit board | Compliant with IPC standards TNM6000 Core Industrial Switch |
| EMI radiation | FCC 47 CFR Part 15 Class A EN55032 Class A EN55035 Class A |
| EMC | IEC(EN)61000-6-4 IEC(EN)61000-6-2 IEC(EN)61000-3-2 IEC(EN)61000-3-3 |
| Product Safety | CE.CB.IEC.IECEE IEC/EN60950-1 FCC Part 15 Subpart B Class A |
| Environmental Requirements | EN61131-2 |
| Hazardous Substances | RoHS |
| rail industry | EN50121-4 |
| industrial control industry | UL/cUL61010 TNM6000 Core Industrial Switch |
| model | Product Specification |
| TNM6000-V-Chassis | All-aluminum TNM6000 core industrial switch chassis—corrosion/oxidation resistant and rust-proof. Standard 19-inch rackmount 2U, 8-slot: 1 main-control (with 1×T6K-MSU-V switching engine) + 4 service (4×T6K-PAN-BLK blanks) + 2 power (2×T6K-PWR-BLK blanks) + 1 fan (1×T6K-Fan2S3B). Management: 1 Ethernet + 1 CLI + 1 relay + 1 USB for ACA + 1 SD. CE, FCC, UL61010. IP30. |
| TNM6000-VI-Chassis | All-aluminum TNM6000 core industrial switch chassis—corrosion/oxidation resistant and rust-proof. Standard 19-inch rackmount 2U, 8-slot: 1 main-control slot (with 1×T6K-MSU-VI switching engine) + 4 service slots (with 4×T6K-PAN-BLK blank panels) + 2 power slots (with 2×T6K-PWR-BLK blank panels) + 1 fan slot (with 1×T6K-Fan2S3B fan tray). Management: 1 Ethernet + 1 CLI + 1 relay + 1 USB for ACA + 1 SD. CE, FCC, UL61010 industrial safety. IP30. Fan tray T6K-Fan2S3B uses German ebmpapst long-life fans. Switching engines: T6K-MSU-V V-type MCU with 4×10G/2.5G/1G SFP+ and 1 Mgmt (L2/L3); T6K-MSU-VI VI-type MCU with 8×10G/2.5G/1G SFP+ + 32×GE copper + 1 Mgmt (L2/L3). Interface modules: T6K-LM-A 12×GE copper (hot-swap, online upgrade); T6K-LM-B 12×FE/GE SFP (hot-swap, online upgrade); T6K-LM-P 10×GE PoE/PoE+ + 1 external PSE (hot-swap, online upgrade). Power: T6K-300W-HV 100-240VAC 300W wide-temp PSU with German ebmpapst fans. Blank panels: T6K-PAN-BLK / T6K-PWR-BLK. Optics: MRD-SFP-GLX FE SM SFP (1310nm) LC 20km; MRD-SFP-GEX FE SM SFP (1310nm) LC 40km; MRD-SFP-GZX FE SM SFP (1550nm) LC 80km. |
| MRD-SFP-GSX-850 | FE MM SFP (850nm), LC, up to 2 km; MRD-SFP-GSX FE MM SFP (1310nm), LC, up to 2 km |
| MRD-SFP-GLX-13 | FE BiDi SM SFP (TX1310/RX1550), LC, up to 20 km |
| MRD-SFP-GLX-15 | FE BiDi SM SFP (TX1550/RX1310), LC, up to 20 km |
| MRD-SFP-GEX-13 | FE BiDi SM SFP (TX1310/RX1550), LC, up to 40 km |
| MRD-SFP-GEX-15 | FE BiDi SM SFP (TX1550/RX1310), LC, up to 40 km; MRD-MGIGA-GLX GE SM SFP (1310nm), LC, up to 20 km; MRD-MGIGA-GEX GE SM SFP (1310nm), LC, up to 40 km; MRD-MGIGA-GZX GE SM SFP (1550nm), LC, up to 80 km. |
| MRD-MGIGA-GSX-850 | GE MM SFP (850nm), LC, up to 550 m; MRD-MGIGA-GSX GE MM SFP (1310nm), LC, up to 2 km |
| MRD-MGIGA-GLX-13 | GE BiDi SM SFP (TX1310/RX1550), LC, up to 20 km |
| MRD-MGIGA-GLX-15 | GE BiDi SM SFP (TX1550/RX1310), LC, up to 20 km |
| MRD-MGIGA-GEX-13 | GE BiDi SM SFP (TX1310/RX1550), LC, up to 40 km |
| MRD-MGIGA-GEX-15 | GE BiDi SM SFP (TX1550/RX1310), LC, up to 40 km. TNM6000 Core Industrial Switch SFP/XFP Module Description |
| MRD-G25-GLX | 2.5G SM SFP (1310nm), LC, up to 20 km |
| MRD-G25-GEX | 2.5G SM SFP (1310nm), LC, up to 40 km |
| MRD-G25-GZX | 2.5G SM SFP (1550nm), LC, up to 80 km |
| MRD-G25-GSX-850 | 2.5G MM SFP (850nm), LC, up to 300 m |
| MRD-10GLS-LC | 10G SM SFP+ (1310nm), LC, up to 10 km |
| MRD-10GRS-LC | 10G SM SFP+ (1310nm), LC, up to 20 km |
| MRD-10GES-LC | 10G SM SFP+ (1550nm), LC, up to 40 km |
| MRD-10GZS-LC | 10G SM SFP+ (1550nm), LC, up to 80 km |
| MRD-10GSS-LC-850 | 10G MM SFP+ (850nm), LC, up to 300 m |
