Network management: browser, CLI, Telnet
Supports port-based VLAN, IEEE 802.1Q VLAN and GVRP
Supports QoS (IEEE 802.1P/1Q and TOS/DiffServ)
Supports IEEE 802.3af/at PoE

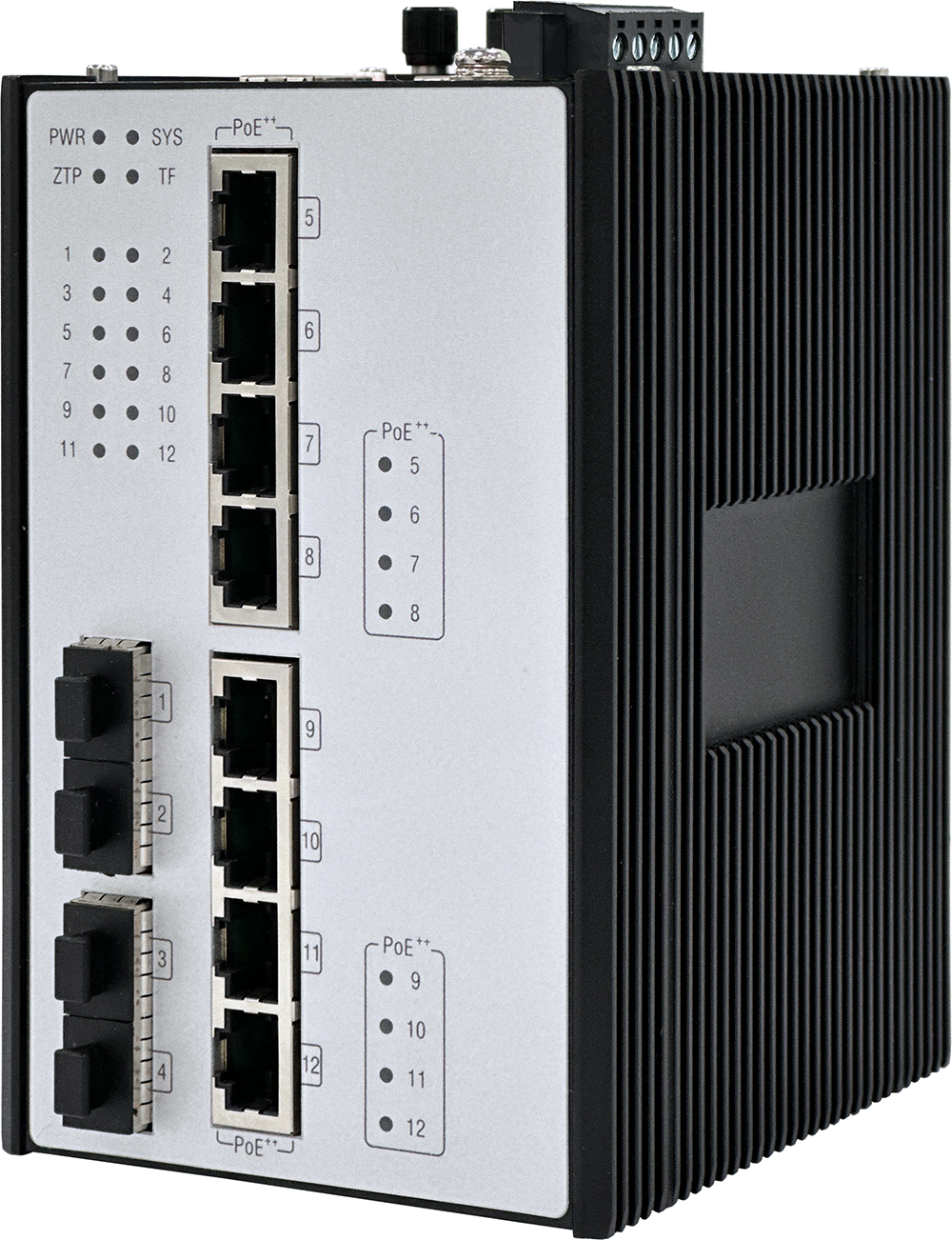

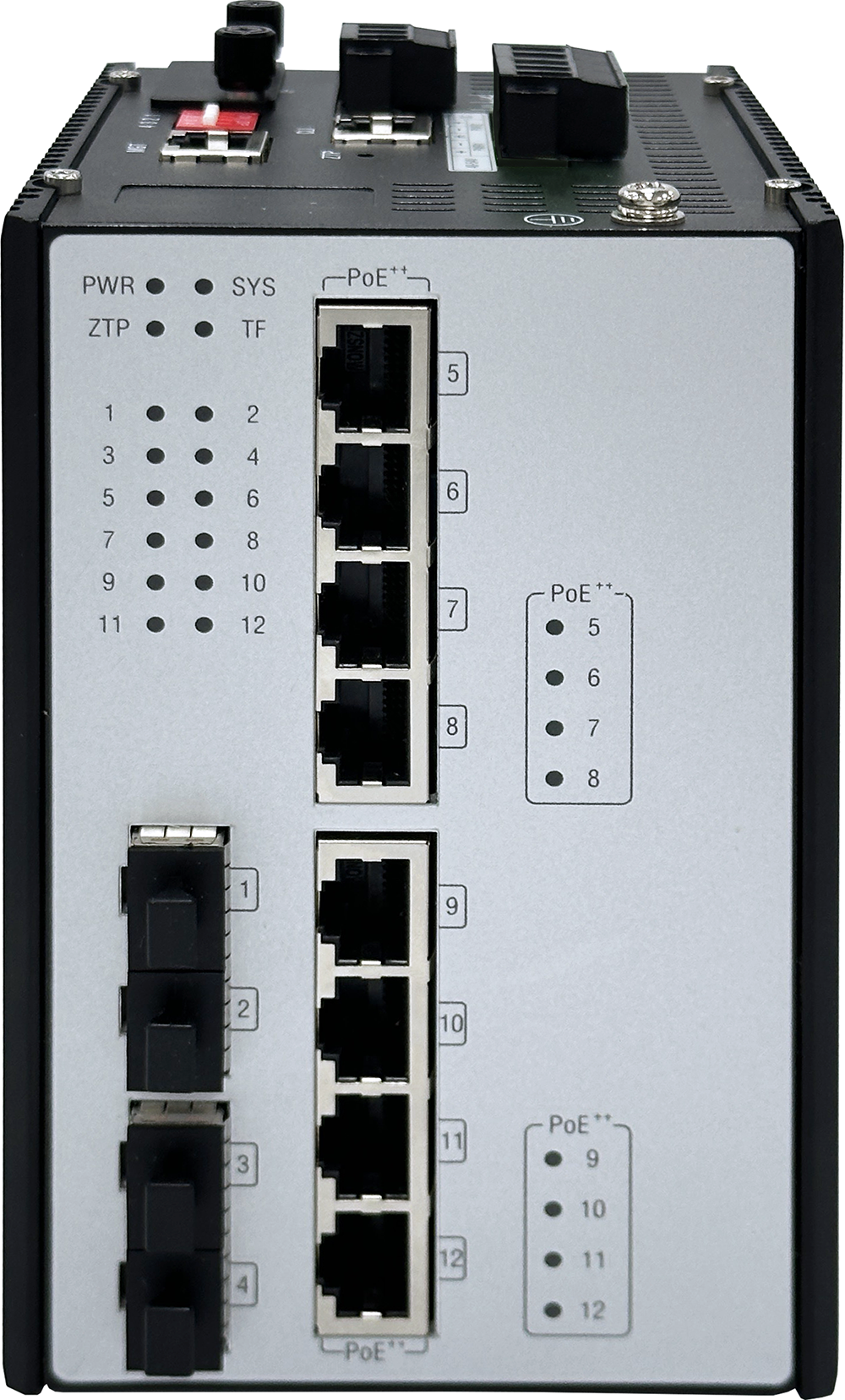

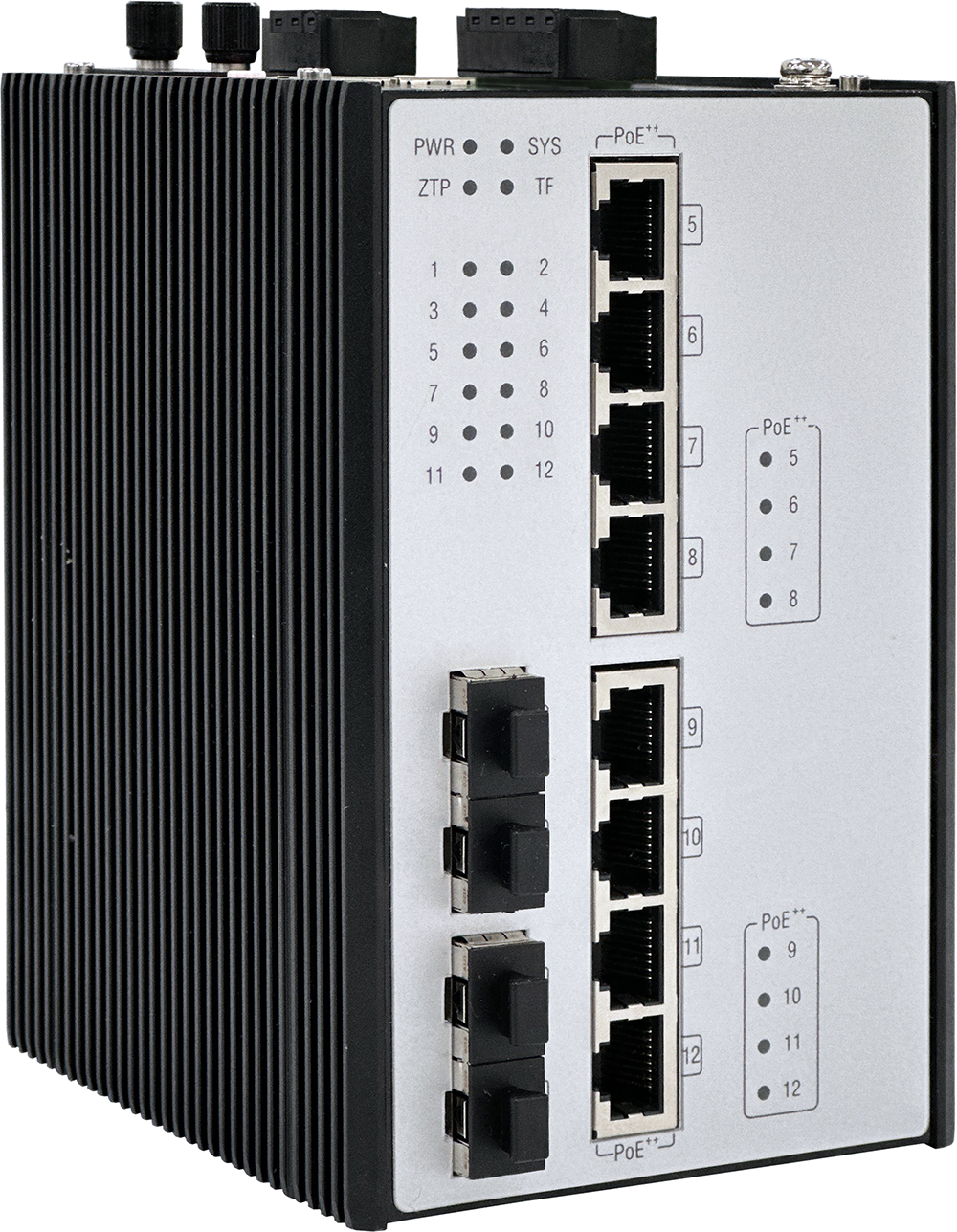

The TCC4100 DIN-rail Layer-3 10G TSN switch is designed for multi-industry applications, supporting 8 Gigabit copper + 4×10G SFP, or 8 Gigabit PoE copper + 4×10G SFP, with backplane bandwidth up to 96 Gbps.
The TCC4100 DIN-rail Layer-3 10G TSN switch supports management features such as IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS and port mirroring. It supports Ethernet redundancy (RSTP/STP/MSTP) to improve system reliability and backbone availability, and IEEE 802.1AS TSN to reduce latency/jitter and ensure on-time delivery with interoperable time sync from edge to cloud. PoE models can deliver up to 60W per PoE+ port in standard mode. It features a rugged aluminum alloy housing for industrial environments with optional fiber connectivity.
The cable is connected, but the port will not come UP / the link is down. What should I check?
+What are the PoE power specifications?
+Which ring protocols are supported, and what is the self-healing time?
+How should I choose between Layer-2 and Layer-3 industrial switches?
+Can non-OEM SFP optical modules work normally?
+How do I restore factory settings if I forget the device login password?
+What are the power supply requirements for industrial switches?
+What are the operating temperature range and protection rating of industrial switches?
+High-performance, flexibly configurable wire-speed switch
Backplane bandwidth up to 96Gbps
The TNM4000 general-purpose managed rack-mount industrial switch supports wide operating temperature -40°C ~ +85°C with strong environmental adaptability, shock and EMI immunity for power, transportation, oil and chemical industries.
Supportsport-based VLAN , IEEE 802.1Q VLAN and GVRP
Supports QoS (IEEE 802.1P/1Q and TOS/DiffServ)
The Patriot PAT series homegrown controllable dual-100% power industrial switch is an industrial Ethernet switch independently developed by MRD (Shanghai Boying Communication Technology Co., Ltd.) on domestic CPU, switch chip, PHY, OS and software, delivering security and controllability from PHY to core software. Localization reaches dual 100% (100% domestic component types excl. Taiwan, and 100% domestic component quantity excl. Taiwan).
Full aluminum alloy all-black with Changzheng Centauri software, TOM1000 series 10-port Layer-2 industrial switch; corrosion-/oxidation-resistant, never rusts. 2×100/1000/2500BaseX SFP (modules not included) + 8×10/100/1000BaseT, 1 CLI. IP40; operating temperature -40~75°C; MTBF≥400,000 hours. Redundant dual isolated power (24~240VDC or 100~240VAC). DIN-rail included.
Supports IEEE 802.3af/at PoE
PoE output up to 60W per port
The TCC4100 general-purpose Layer-2 DIN-rail industrial switch is designed for multi-industry applications, supporting 8 Gigabit copper + 4 GE/FE auto-sensing SFP, or 8 Gigabit copper + 4 GE/FE auto-sensing SFP + 4 serial ports, with backplane bandwidth up to 56 Gbps.
Built-in unified MicOS RTOS for all MRDTM switches
Redundant dual power input design
die-cast aluminum alloy housing
Fanless , -40℃ to +75℃operating ambient temperature
MTBF ≥600,000h
IEEE 802.1Qbv enhancements for scheduled traffic
IEEE 802.1Qbu Frame Preemption
IEEE 802.3br Frame Preemption
IEEE 802.1cb seamless redundancy
CRRC standardized 3U rack-mount ETBN/ECN Layer-3 ECNN-A switch: 24 FE D-code + 4 Gigabit X-code with BYPASS; redundant hot-swap dual PSUs; meets CRRC ETBN networking requirements.
Layer-3 enhanced IP41 fully sealed 1U rack-mount (19-inch capable): 4 Gigabit 8-pin A-Code M12 + 12 FE 4-pin D-Code M12 (PoE/PoE+ with built-in 130W PoE PSU). Industrial isolated power (110VDC/220VAC).
MSM 2-port unmanaged card-type industrial fiber transceiver: 1 fixed optical (multi-mode, 5 km, ST) + 1×10/100BaseT. Operating temperature -40°C~+75°C.
IEEE 802.3 CSMA/CD method and physical Layer specifications CSMA/CD method and physical layer specifications
IEEE 802.1p Priority Queuing Priority Queuing
IEEE 802.1q VLAN tagging VLAN Tagging
IEEE 802.1d Spanning Tree Algorithm Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Multiple Spanning Tree Protocol
IEEE 802.3ac VLAN Tagging VLAN Tagging
IEEE 802.1x Authentication Authentication
IEEE 802.3ad Link Aggregation Link Aggregation
IEEE 802.3x Flow Control Flow Control
IEEE 802.3 Ethernet Ethernet
IEEE 802.3u Fast Ethernet Fast Ethernet
IEEE 802.3z Gigabit Ethernet Gigabit Ethernet
The TNM4000-ISC28HH4X24MX Layer-3 industrial switch is designed for harsh networks such as substation automation and railway applications. It is configured with 24×100/1000/2500BaseX SFP + 4×100/1000/2500/10000BaseX SFP for high-speed data in high-bandwidth large industrial networks.
IEEE 802 Networks Networks
IEEE 1588v2 PTP one-step precise clock
RFC 768 UDP User Datagram Protocol
RFC 791 IP Internet Protocol
RFC 792 ICMP Internet Control Message Protocol
RFC 793 TCP Transmission Control Protocol
RFC 826 ARP Address Resolution Protocol
RFC 854 Telnet Client & Server Telnet Client & Server
RFC 862 Echo Protocol Echo Protocol
RFC 863 Discard Protocol Discard Protocol
RFC 904 Exterior Gateway Protocol Formal Specification Exterior Gateway Protocol
RFC 1027 Using ARP to Implement Transparent Subnet Gateways Proxy ARP
RFC 1058 RIP Routing Information Protocol
RFC 1059, 1119 NTPv1/2 Network Time Protocol v1/2
RFC 1112 IGMP Host Extensions for IP Multicasting
RFC 1191 Path MTU Discovery Path MTU Discovery
RFC 1256 ICMP Router Discovery Protocol ICMP Router Discovery Protocol
RFC 1388 RIP Version 2 Carrying Additional Information Routing Information Protocol v2
RFC 1519 CIDR (Classless Inter-domain Routing)Classless Inter-Domain Routing
RFC 1542 Bootstrap Extensions & DHCP DHCP relay agent
RFC 1587 OSPF NSSA OSPF
Full aluminum alloy all-black with Changzheng Centauri software, TOM1000 series 10-port Layer-2 industrial switch; corrosion-/oxidation-resistant, never rusts. 2×100/1000/2500BaseX SFP (modules not included) + 8×PoE/PoE+ 10/100/1000BaseT, 1 CLI. IP30; operating temperature -40~75°C; MTBF≥400,000 hours. Redundant dual DC isolated power (48~54VDC). DIN-rail included.
RFC 1812 Requirements for IP Version 4 Routers Requirements for IP Version 4 Routers
RFC 1851 The ESP Triple DES Transform ESP Triple DES Transform
RFC 1866 HTML HTML
RFC 1994 PPP Challenge Handshake Authentication Protocol (CHAP) Challenge Handshake Authentication Protocol
RFC 2068 HTTP Hypertext Transfer Protocol
RFC 213 DHCP Server DHCP Server
RFC 2138 RADIUS Remote Authentication Dial-In User Service
RFC 2139 RADIUS Accounting RADIUS Accounting
RFC 2236 IGMPv2 IGMPv2
RFC 2328 OSPF V2 OSPF v2
RFC 2338 VRRP Virtual Router Redundancy Protocol
RFC 2370 The OSPF Opaque LSA Option OSPF Opaque LSA Option
RFC 2474 DiffServ Precedence
RFC 2475 DifffServ Core and Edge Router Functions
RFC 2597 DiffServ Assured Forwarding
RFC 2598 DiffServ Expedited Forwarding
RFC 2644 Directed Broadcasts Directed Broadcasts
RFC 2865 Remote Authentication Dial In User Service (RADIUS) Remote Authentication Dial-In User Service
RFC 3046 DHCP Relay Agent Information Option DHCP Relay Agent Information Option
RFC 3222 Forwarding Information Base (FIB) Forwarding Information Base
ODVA Device Level Ring
CC-LINK IE
CC-LINK IE TSN
GMRP GARP Multicast Registration Protocol
GVRP GARP VLAN Registration Protocol
SSH2 Secure Shell 2
IGMP snooping IGMP snooping
SNMPv3 Simple Network Management Protocol v3
| Backplane bandwidth | 96Gbps |
| Switching Technology | store-and-forward |
| MAC address table | 16K |
| packet buffer | 12 Mbits |
| switching rate | 148,800 pps/FE port; 1,488,000 pps/GE port |
| Management Methods | Browser , Serial , STD-17 MIB-II , STD-58 SMIv2 , STD-62 SNMPv3 , SNMPv2c, SNMPv1 , RFC3636 MAU , RFC2925 Ping MIB , MRD Private MI Bs |
| Diagnostics | LEDs, log files, relay, port mirroring, TRAP |
| Redundancy | RSTP , STP , MSTP , ERPS , MRP , HSR , PRP , link aggregation , DLR |
| time synchronization | NTP ，PTPv2 |
| Other | 4K VLANS , IPv4/IPv6 multicast , storm control , Supports Jumbo Frame |

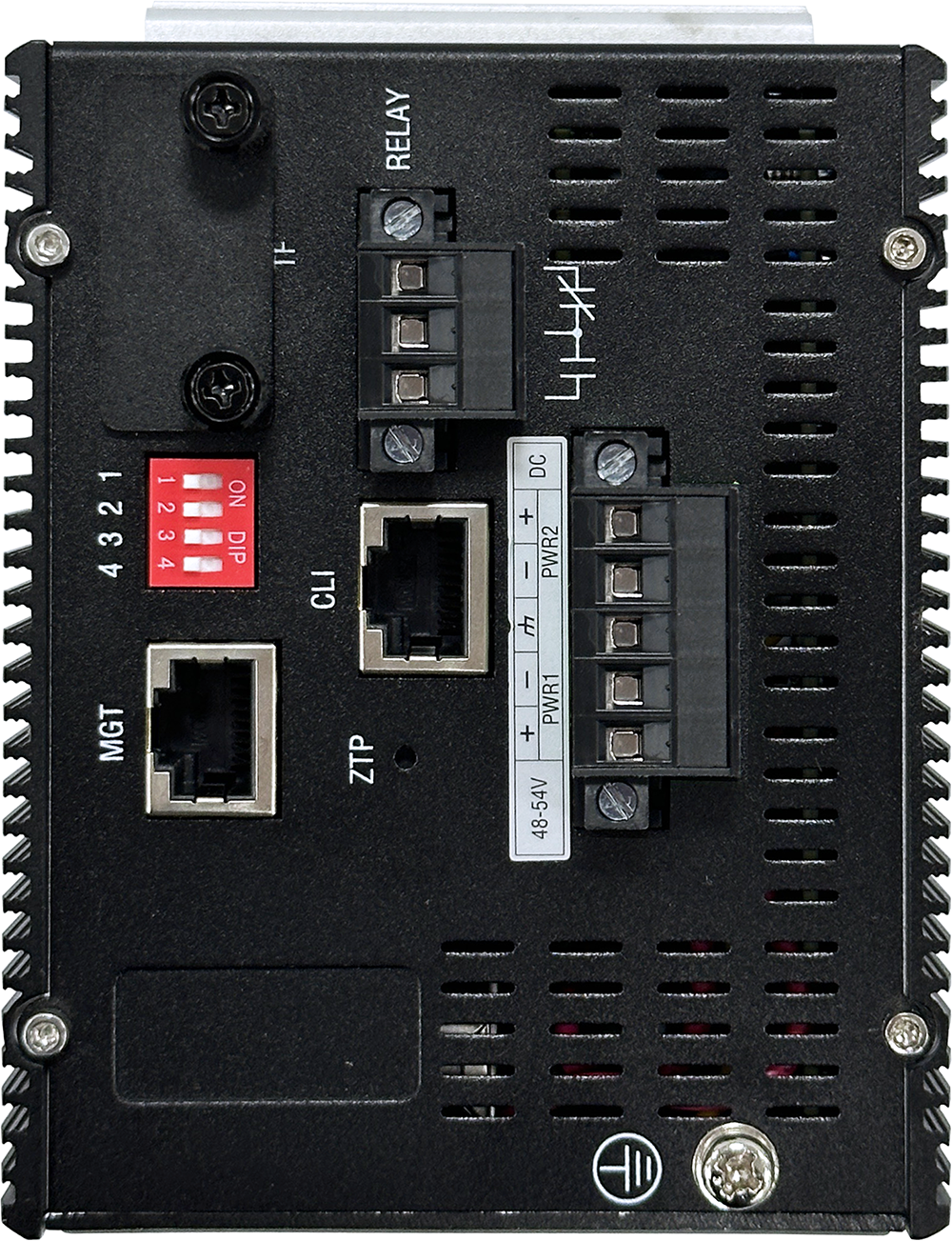

| connection | 1 removable 5-PIN terminal block |
| Input voltage | 24~240VDC or 100~240VAC (50~60Hz) , dual input 48~54VDC , dual input (PoE models) |
| overload current protection | Supports |
| reverse polarity protection | Supports |
| Power consumption | ≤20W (excl. PoE) |

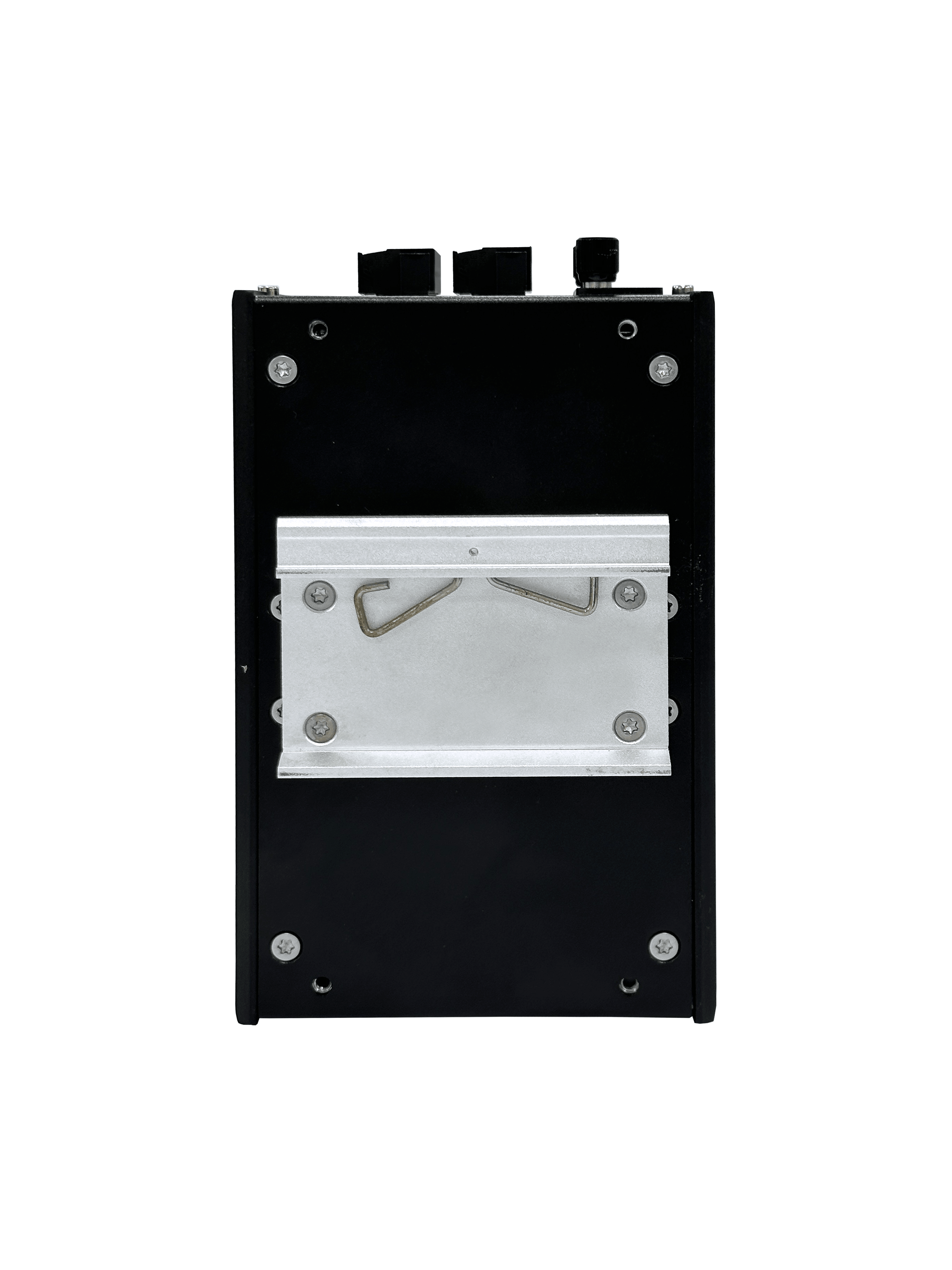

| Mounting method | Din-Rail mounting |
| housing | die-cast aluminum alloy housing |
| protection rating | IP40 |

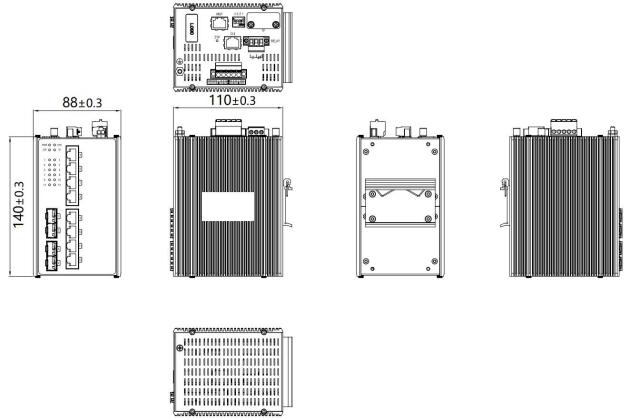

| Dimensions (W×H×D) | 88mm x 140mm x 110mm (±0.3) |
| Weight | ≤ 1.25KG |
| storage temperature | ‐40°C ~ 85°C |
| Operating temperature | ‐40°C ~ 85°C（non-PoE models） ‐40°C ~ 75°C（PoE models） |
| Humidity | 5% ~ 95% (non-condensing) |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| free fall | IEC 60068-2-31 |
| PCB | Compliant with IPC standards |
| EMI radiation | FCC 47 CFR Part 15 Class A EN55032 Class A EN55035 Class A |
| EMC | IEC(EN)61000-4-2, Level 4 IEC(EN)61000-4-4, Level 4 IEC(EN)61000-4-5, Level 4 IEC(EN)61000-4-6, Level 3 IEC(EN)61000-4-9, Level 5 |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B C lass A |
| hazardous area | UL/cUL1604 Class 1 Div 2 (certification in progress) |
| transportation industry | JT/T817-2011 ; NEMA-TS2 (certification in progress) |
| rail industry | EN50121-4 |
| power industry | IEC61850-3 IEEE1613（C37.90.x） |
| industrial control industry | UL/cUL61010 (certification in progress) |
| shipbuilding industry | GL (certification in progress) |
| Model | Product Specification |
| TCC4100-IST12U4X80 | 12-port DIN-rail Layer-3 TSN industrial switch: 8 Gigabit copper + 4×100/1000/2500/10000BaseX SFP, redundant dual isolated power (24~240VDC or 100~240VAC). One relay alarm output (250VAC 2A@250VAC or 125VDC 2A@30VDC) plus management Console and MGT ports. Operating temperature -40°C ~ +85°C; IP40. With CENTAURI software. |
| TCC4100-IST12F4X80Q | Full aluminum alloy all-black with Changzheng Centauri software, TOM1000 series 10-port Layer-2 industrial switch; corrosion-/oxidation-resistant, never rusts. 2×100/1000/2500BaseX SFP (modules not included) + 8×PoE/PoE+ 10/100/1000BaseT, 1 CLI. IP30; operating temperature -40~75°C; MTBF≥400,000 hours. Redundant dual DC isolated power (48~54VDC). DIN-rail included. |
