Supports multiple Layer-3 routing and industrial ring protocols
Any two ports can form a self-healing ring; multiple independent rings supported
Supports QoS (IEEE 802.1P/1Q and TOS/DiffServ)
Supports CLI, Telnet, Web management and SNMPv1/v2c/v3 NMS
PAT300 serieshomegrown controllableIT-innovationPatriotadvanced Layer-3industrial switchMRD (Shanghai Boying Communication Technology Co., Ltd.)an industrial Ethernet switch independently developed on domestic CPU, switch chip, PHY, OS and software, delivering security and controllability from PHY to core software. PAT300 serieshomegrown controllableIT-innovationPatriotadvanced Layer-3industrial switchuses 100% domestic parts, localization rate reaches 100%.
The PAT300 series homegrown controllable IT-innovation Patriot advanced Layer-3 industrial switch supports 16 Gigabit copper + 8×10G/1G auto-sensing SFP or 8 GE/FE auto-sensing SFP, or 8 Gigabit copper + 8×10G/1G auto-sensing SFP or 8 GE/FE auto-sensing SFP, suitable for large industrial networks.
The PAT300 series homegrown controllable IT-innovation Patriot advanced Layer-3 industrial switch supports IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS and port mirroring. It supports Ethernet redundancy (RSTP/STP/MSTP) to improve reliability and backbone availability, plus multiple Layer-3 routing protocols, simple rich management and flexible mounting for complex access scenarios. It features a rugged aluminum alloy housing for industrial environments with optional fiber connectivity.
The cable is connected, but the port will not come UP / the link is down. What should I check?
+What are the PoE power specifications?
+Which ring protocols are supported, and what is the self-healing time?
+How should I choose between Layer-2 and Layer-3 industrial switches?
+Can non-OEM SFP optical modules work normally?
+How do I restore factory settings if I forget the device login password?
+What are the power supply requirements for industrial switches?
+What are the operating temperature range and protection rating of industrial switches?
+Core CPU, switch chip and PHY use domestic chips with domestic-IP HarmonyOS
Supports multiple Layer-3 routing and industrial ring protocols
Supports any two ports can form a self-healing ring, and multiple independent self-healing rings
Provides packet-loss protection and fast recovery from network faults
Supports IGMP snooping and GMRP
Supports port-based unicast MAC binding
Supports multiple multicast protocols with strong security
Layer-3 enhanced IP41 fully sealed 1U rack-mount (19-inch capable): 8 FE M12 (PoE/PoE+ with built-in 130W PoE PSU). Industrial isolated power (110VDC/220VAC).
Supports QoS (IEEE 802.1P/1Q and TOS/DiffServ)
Supports CLI, Telnet, Web management and SNMPv1/v2c/v3 NMS software
Supports RMON
Supportsport mirroring
Redundant dual power input design
IP40 Ingress protection
Fanless , -40℃ ~ +85℃operating temperature
IEEE 802.3 CSMA/CD method and physical Layer specifications CSMA/CD method and physical layer specifications
IEEE 802.1p Priority Queuing Priority Queuing
IEEE 802.1q VLAN tagging VLAN Tagging
IEEE 802.1d Spanning Tree Algorithm Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Multiple Spanning Tree Protocol
IEEE 802.3ac VLAN Tagging VLAN Tagging
IEEE 802.1x Authentication Authentication
IEEE 802.3ad Link Aggregation Link Aggregation
IEEE 802.3x Flow Control Flow Control
IEEE 802.3 Ethernet Ethernet
IEEE 802.3u Fast Ethernet Fast Ethernet
IEEE 802.3z Gigabit Ethernet Gigabit Ethernet
IEEE 802 Networks Networks
RFC 768 UDP User Datagram Protocol
RFC 791 IP Internet Protocol
RFC 792 ICMP Internet Control Message Protocol
RFC 793 TCP Transmission Control Protocol
RFC 826 ARP Address Resolution Protocol
RFC 854 Telnet Client & Server Telnet Client & Server
RFC 862 Echo Protocol Echo Protocol
RFC 863 Discard Protocol Discard Protocol
RFC 867 Daytime Protocol Daytime Protocol
RFC 868 Time Protocol Time Protocol
RFC 1027 Using ARP to Implement Transparent Subnet Gateways Proxy ARP
RFC 1058 RIP Routing Information Protocol
RFC 1059, 1119 NTPv1/2 Network Time Protocol v1 and v2
RFC 1112 IGMP Host Extensions for IP Multicasting
RFC 1191 Path MTU Discovery Path MTU Discovery
RFC 1256 ICMP Router Discovery Protocol ICMP Router Discovery Protocol
RFC 1388 RIP Version 2 Carrying Additional Information Routing Information Protocol v2
RFC 1519 CIDR (Classless Inter-domain Routing) Classless Inter-Domain Routing
RFC 1542 Bootstrap Extensions & DHCP DHCP relay agent
RFC 1587 OSPF NSSA OSPF
Full aluminum alloy all-black with Changzheng Centauri software, TOM1000 series 10-port Layer-2 industrial switch; corrosion-/oxidation-resistant, never rusts. 2×100/1000/2500BaseX SFP (modules not included) + 8×PoE/PoE+ 10/100/1000BaseT, 1 CLI. IP30; operating temperature -40~75°C; MTBF≥400,000 hours. Redundant dual DC isolated power (48~54VDC). DIN-rail included.
RFC 1812 Requirements for IP Version 4 Routers Requirements for IP Version 4 Routers
RFC 1851 The ESP Triple DES Transform ESP Triple DES Transform
RFC 1866 HTML HTML
RFC 1994 PPP Challenge Handshake Authentication Protocol (CHAP) Challenge Handshake Authentication Protocol
RFC 2068 HTTP Hypertext Transfer Protocol
RFC 213 DHCP Server DHCP Server
RFC 2138 RADIUS Remote Authentication Dial-In User Service
RFC 2139 RADIUS Accounting RADIUS Accounting
RFC 2236 IGMPv2 IGMPv2
RFC 2328 OSPF v2 OSPF v2
RFC 2338 VRRP Virtual Router Redundancy Protocol
RFC 2362 PIM-SM/DM PIM Sparse/Dense Mode
RFC 2370 The OSPF Opaque LSA Option OSPF Opaque LSA Option
RFC 2474 DiffServ Precedence
RFC 2475 DiffServ Core and Edge Router Functions
RFC 2597 DiffServ Assured Forwarding
RFC 2598 DiffServ Expedited Forwarding
RFC 2644 Directed Broadcasts Directed Broadcasts
RFC 2865 Remote Authentication Dial in User Service (RADIUS) Remote Authentication Dial-In User Service
RFC 3046 DHCP Relay Agent Information Option DHCP Relay Agent Information Option
RFC 3222 Forwarding Information Base (FIB) Forwarding Information Base
GMRP GARP Multicast Registration Protocol
GVRP GARP VLAN Registration Protocol
SSH2 Secure Shell 2
IGMP snooping IGMP snooping
SNMPv3 Simple Network Management Protocol v3
| Backplane bandwidth | 224Gbps |
| Processor | 1.2G dual-core |
| Memory | 16G bits |
| Switching technology | store-and-forward |
| MAC address table | 32K Flash： 32M bits |
| Packet buffer | 3M bits |
| Switching rate | 148,800 pps/FE port; 1,488,000 pps/GE port |
| Management Methods | Browser , Serial , STD-17 MIB-II , STD-58 SMIv2 , STD-62 SNMPv3 , SNMPv2c, SNMPv1 , RFC3636 MAU , RFC2925 Ping MIB |
| Diagnostics | LEDs, log files, relay, port mirroring, TRAP |
| Redundancy | RSTP , STP , MSTP , link aggregation |
| time synchronization | NTP |
| Other | 4K VLANS , IPv4/IPv6 multicast , storm control , Supports Jumbo Frame |
| Terminal block | 1 removable 5-pin terminal block |
| Input voltage | 100 ~ 240VAC(50~60Hz) / 24 ~ 240VDC , dual input |
| Power | ≤50W |
| overload current protection | Supports |
| reverse polarity protection | Supports |
| Mounting method | rack mounting |
| housing | aluminum alloy housing |

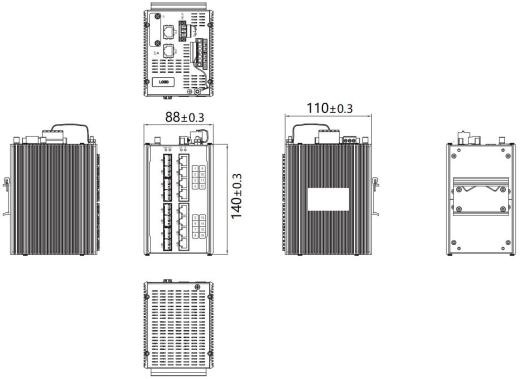

| Dimensions (W x H x D) | 88mm×140mm×110mm (±0.3） 126mm×140mm×110mm (±0.3） |
| protection rating | IP40 |
| Weight | ≤ 1.6 Kg |
| storage temperature | -40℃ ~ 85℃ |
| operating temperature | -40℃ ~ 85℃ |
| Humidity | 5% ~ 95%, non-condensing |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| free fall | IEC 60068-2-31 |
| PCB | Compliant with IPC standards |
| EMI radiation | FCC 47 CFR Part 15 Class A EN55032 Class A EN55035 Class A |
| EMC | IEC(EN)61000-4-2, Level 4 IEC(EN)61000-4-4, Level 4 IEC(EN)61000-4-5, Level 4 IEC(EN)61000-4-6, Level 3 IEC(EN)61000-4-9, Level 5 |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B C lass A |
| hazardous area | UL/cUL1604 Class 1 Div 2 (certification in progress) |
| transportation industry | JT/T817-2011 ; NEMA-TS2 (certification in progress) |
| rail industry | EN50121-4 |
| power industry | IEC61850-3 IEEE1613（C37.90.x） |
| industrial control industry | UL/cUL61010 (certification in progress) |
| shipbuilding industry | GL (certification in progress) |
| Model | Specification description |
| Patriot PAT300-ISE24U8XG0 | All-black with Changzheng Centauri software, 24-port DIN-rail advanced Layer-3 industrial switch: 16 Gigabit copper + 8×10G/1G auto-sensing SFP, redundant dual isolated power (24-240VDC / 100-240VAC). Dual-TVS port protection; ENIG PCB; industrial wide-temp parts and tantalum capacitors; IPC compliant. Operating temperature -40~85°C; MTBF over 600,000 hours; IP40. One relay alarm output (250VAC 2A@250VAC or 125VDC 2A@30VDC) plus Console and MGT ports. Includes DIN-rail, monitoring cable and one power cord. |
| Patriot PAT300-ISE24U80G0 | All-black with Changzheng Centauri software, 24-port DIN-rail advanced Layer-3 industrial switch: 16 Gigabit copper + 8 Gigabit SFP, redundant dual isolated power (24-240VDC / 100-240VAC). Dual-TVS port protection; ENIG PCB; industrial wide-temp parts and tantalum capacitors; IPC compliant. Operating temperature -40~85°C; MTBF over 600,000 hours; IP40. One relay alarm output (250VAC 2A@250VAC or 125VDC 2A@30VDC) plus Console and MGT ports. Includes DIN-rail, monitoring cable and one power cord. |
| Patriot PAT300-ISE16U8X80 | All-black with Changzheng Centauri software, 16-port DIN-rail advanced Layer-3 industrial switch: 8 Gigabit copper + 8×10G/1G auto-sensing SFP, redundant dual isolated power (24-240VDC / 100-240VAC). Dual-TVS port protection; ENIG PCB; industrial wide-temp parts and tantalum capacitors; IPC compliant. Operating temperature -40~85°C; MTBF over 600,000 hours; IP40. One relay alarm output (250VAC 2A@250VAC or 125VDC 2A@30VDC) plus Console and MGT ports. Includes DIN-rail, monitoring cable and one power cord. |
| Patriot PAT300-ISE16U8080 | All-black with Changzheng Centauri software, 16-port DIN-rail advanced Layer-3 industrial switch: 8 Gigabit copper + 8 Gigabit SFP, redundant dual isolated power (24-240VDC / 100-240VAC). Dual-TVS port protection; ENIG PCB; industrial wide-temp parts and tantalum capacitors; IPC compliant. Operating temperature -40~85°C; MTBF over 600,000 hours; IP40. One relay alarm output (250VAC 2A@250VAC or 125VDC 2A@30VDC) plus Console and MGT ports. Includes DIN-rail, monitoring cable and one power cord. |
