MTX100 Series
MTX100 Series
MTX100 Series
MTX100 Series
MTX100 Series
MTX100 Series
MTX100 Series
MTX100 Series
MTX100 Series
MTX100 Series
MTX100 Series
MTX100 Series

MTX100 Series

Supports 10/100/1000 Base-T(X) RJ45

Supports QoS (IEEE 802.1P/1Q and TOS/DiffServ)

IP30 protection rating

Fanless; operating temperature -40C to +75C

Get a Quote Claim Coupon Download
Download

Product Overview

MTX100 Series industrial switch supports up to 8 Gigabit copper ports for simple industrial Ethernet. Front-panel DIP switches enable/disable QoS and BSP (broadcast storm protection) for broader versatility. Die-cast aluminum housing for industrial use with optional fiber (SFP, SC or ST).

MTX100 Series uses 12/24/48 VDC and 24VAC single power input, DIN-rail mounting, and passes high-level EMI/EMC tests. Compact design with 100% burn-in testing for reliable operation.

Certifications

Contact

FAQ

  • The cable is connected, but the port will not come UP / the link is down. What should I check?

    +

    1) Confirm an industrial-grade cable and proper RJ45 crimping. 2) Check speed/duplex settings; set both ends to auto-negotiation. 3) Check whether the port is administratively shut down, in the wrong VLAN, or restricted by port security.

  • What are the PoE power specifications?

    +

    Standard PoE and PoE+ are supported, with max per-port power of 15.4 W and 30 W respectively. Total system power budget must be calculated during selection to avoid insufficient supply when too many PDs are connected.

  • Which ring protocols are supported, and what is the self-healing time?

    +

    Mainstream industrial ring protocols such as ERPS (G.8032), RSTP/STP, MRP, and PRP are supported. ERPS typical self-healing is ≤50 ms; traditional RSTP is second-level. It is recommended to use one ring protocol consistently across the network.

  • How should I choose between Layer-2 and Layer-3 industrial switches?

    +

    Layer-2 switches: basic features such as VLAN, ring networks, and port mirroring; suited to access layers and same-subnet networking with strong cost performance. Layer-3 switches: add static routing, OSPF, DHCP relay, multicast, and other routing features—choose these when cross-subnet communication or core/aggregation networks are required.

  • Can non-OEM SFP optical modules work normally?

    +

    The device is compatible with generic IEEE 802.3 SFP modules. Non-OEM modules can usually be recognized, but some brands may have compatibility issues. OEM modules are recommended.

  • How do I restore factory settings if I forget the device login password?

    +

    1) Hardware reset: press and hold the RESET button for 5–10 seconds; the device reboots to factory defaults. 2) Software reset: use the vendor NMS to restore factory settings remotely. All custom configurations will be cleared after restore.

  • What are the power supply requirements for industrial switches?

    +

    DC models support 18–60 VDC or 9.6–60 VDC; AC models support 100–240 VAC, with dual redundant power inputs. Phoenix terminal wiring; reverse-polarity protection is built in so normal reverse connection will not damage the device.

  • What are the operating temperature range and protection rating of industrial switches?

    +

    All-metal aluminum alloy housing. Operating temperature is -40°C to +75°C; premium wide-temperature models reach -40°C to +85°C. Typical enclosure rating is IP40.

Features

Industrial-grade chipset

Supports 10/100/1000BaseT(X) (RJ45)

Compact and easy to install

Supports QoS (IEEE 802.1P/1Q and TOS/DiffServ)

die-cast aluminum alloy housing

IP30 protection rating

Fanless, operating temperature -40°C to +75°C

Specifications

  • Hardware Performance-

    Backplane bandwidth16Gbps
    Switching Technologystore-and-forward
    MAC Address Table4K (max.)
    packet buffer1.5 Mbits (max.)
    switching rate148,800 pps/FE port; 1,488,000 pps/GE port

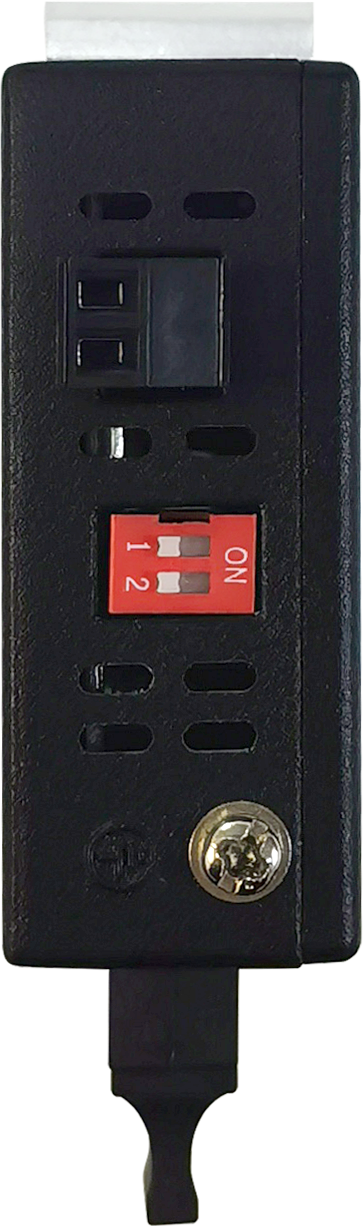

    DIP-switch configuration
    Ethernet interfaceQoS (Quality of Service), BSP (broadcast storm protection)

  • Power Parameters+

    connection1 removable 2-PIN terminal
    Input voltage12/24/48 VDC & 24VAC
    9.6~60VDC & 18~30VAC
    overload current protectionsupport
    reverse polarity protectionsupport
    Power consumption≤5W

  • Physical Characteristics+

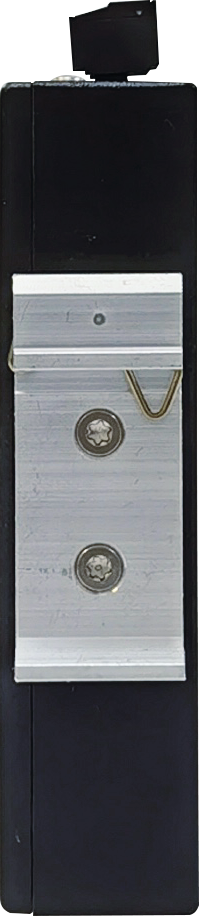

    Mounting methodDin-Rail mounting
    shelldie-cast aluminum alloy housing
    protection ratingIP30
    MTX100-A3K/A5K24mm x 100mm x 61.8mm (±0.3）
    MTX100-A7K/A8K40mm x 100mm x 61.8mm (±0.3）
    Weight≤0.24KG
    MTBF≥400,000 H

  • Environmental Characteristics+

    Storage Temperature‐40°C ~ 85°C
    Operating temperature‐40°C ~ 75°C
    humidity5% ~ 95% (non-condensing)

  • Mechanical Characteristics+

    vibrationIEC 60068-2-6
    impactIEC 60068-2-27
    free fallIEC 60068-2-31
    circuit boardCompliant with IPC standards

  • Electromagnetic Characteristics+

    EMI radiationFCC 47 Part 15 Subpart B C lass A
    EN55032 Class A
    EN55035 Class A
    EMCIEC(EN)61000-4-2, Level 3
    IEC(EN)61000-4-3, Level 3
    IEC(EN)61000-4-4, Level 3
    IEC(EN)61000-4-5, Level 3
    IEC(EN)61000-4-6, Level 3
    IEC(EN)61000-4-8, Level 5
    IEC(EN)61000-4-18, Level 3

  • Industry Certification & Testing+

    Product SafetyIEC/EN62368-1
    UL/cUL61010
    EMCEN55024
    EN55032
    EN61000-3-2
    EN61000-3-3
    EN61000-6-2
    EN61000-6-4
    FCC Part 15 Subpart B C lass A

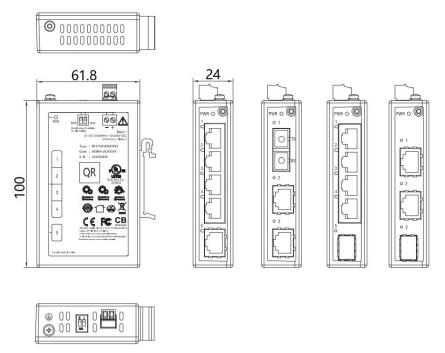

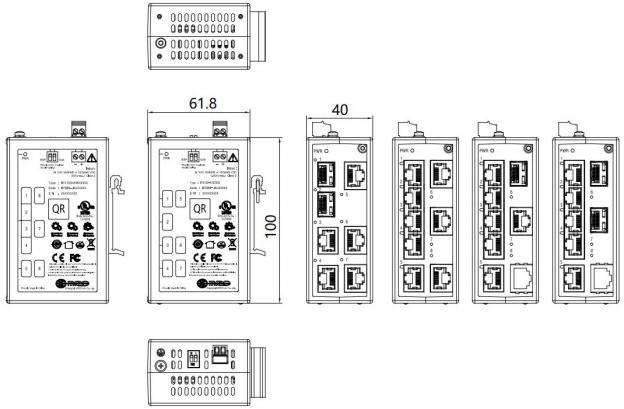

Dimensions

DimensionsDimensions

Accessories

model Product Specification
MTX100-A8K0080 Rackmount 20-port 1U CSG indigenous controllable automation switch: 2×10/100/1000BaseT + 2×100/1000BaseX SFP + 16×100/1000BaseX SFP, 1 CLI/MGT combo, 1 relay, dual 100-240V. Includes brackets, monitoring cable and power cord.
MTX100-A8K0206 MTX100 Series 5-port unmanaged industrial switch, die-cast aluminum housing. 1×100BaseX SFP + 4×10/100BaseT. IP30, -40°C~+75°C. 12/24/48 VDC (9.6~60VDC) & 24VAC (18~30VAC) (Class 2 power only).
MTX100-A8K0107 MTX Series 7-port unmanaged PoE industrial switch, die-cast aluminum housing. 2×100BaseX SFP + 1×10/100BaseT + 4×10/100BaseT PoE. IP30, -40°C~+75°C. Redundant DC 48~54VDC (Class 2 power only).
MTX100-A8K0008 MTX100 Series 5-port unmanaged industrial switch, die-cast aluminum housing. 5×10/100/1000BaseT. IP30, -40°C~+75°C. 12/24/48 VDC (9.6~60VDC) & 24VAC (18~30VAC) (Class 2 power only).
MTX100-A7K2050 MTX100 Series 7-port unmanaged industrial switch, die-cast aluminum housing. 2×100/1000BaseX SFP + 5×10/100/1000BaseT. IP30, -40°C~+75°C. 12/24/48 VDC (9.6~60VDC) & 24VAC (18~30VAC) (Class 2 power only).
MTX100-A5K1040 MTX100 Series 5-port unmanaged industrial switch, die-cast aluminum housing. 1×100/1000BaseX SFP + 4×10/100/1000BaseT. IP30, -40°C~+75°C. 12/24/48 VDC (9.6~60VDC) & 24VAC (18~30VAC) (Class 2 power only).
MTX100-A5K0050 MTX Series PoE industrial switch uses 48~54VDC power input, DIN-rail mounting, and passes high-level EMI/EMC tests. Centralized powering with up to 30W per PoE port. Compact design with 100% burn-in testing for reliable operation.
MTX100-A5K0104 All-aluminum all-black Centauri 28-port Layer-2 managed industrial switch: 4×100/1000BaseX SFP + 24×10/100/1000BaseT, rackmount. IP40, -40°C~+75°C. 100~240V redundant dual isolated power. Includes power cord and brackets.
MTX100-A5K0005 SRS2000 Series rackmount WEB-managed PoE industrial switch supports 2×FE/GE adaptive SFP + 24×PoE Gigabit copper, designed for harsh industrial environments as a cost-effective Ethernet solution. Operating temperature -40°C~+75°C.
MTX100-A3K1020 MTX100 Series 3-port unmanaged industrial switch, die-cast aluminum housing. 1x100/1000BaseX SFP + 2x10/100/1000BaseT. IP30, -40C~+75C. 12/24/48 VDC (9.6~60VDC) & 24VAC (18~30VAC) (Class 2 power only).
MTX100-A3K0102-S-SC FE BiDi SM SFP (TX1550/RX1310), LC, up to 40 km; MRD-MGIGA-GLX GE SM SFP (1310nm), LC, up to 20 km; MRD-MGIGA-GEX GE SM SFP (1310nm), LC, up to 40 km; MRD-MGIGA-GZX GE SM SFP (1550nm), LC, up to 80 km.
MTX100-A3K0102-M-ST MTX100 Series 8-port unmanaged industrial switch, die-cast aluminum housing. 1×100BaseX SFP + 7×10/100BaseT. IP30, -40°C~+75°C. 12/24/48 VDC (9.6~60VDC) & 24VAC (18~30VAC) (Class 2 power only).
MTX100-A3K0102-M-SC MTX100 3-port unmanaged industrial switch, die-cast aluminum housing. 1 fixed fiber (MM, 5 km, SC) + 2×10/100BaseT. IP30, -40°C~+75°C. 12/24/48 VDC (9.6~60VDC) & 24VAC (18~30VAC) (Class 2 power only). Tel: 86-21-58330762 Fax: 86-21-58330763
